Self-Powered Roll Transporters for Large Heavy Rolls
  • Features
  • Specification
  • Videos

All Roll-Hauler models are supplied with a key switch, battery discharge indicator and hour meter. The key switch must be activated to operate any function of the machine including the control box.. All models include a large 700 lb. 24-volt wet acid industrial battery which can operate the machine for 16 hours continuously. The battery discharge indicator (BDI) is a bar graph type which lets the operator know when the machine requires recharging. This type of BDI is extremely helpful in determining charging requirements depending on usages especially during 3 shift operations. BDI’s are factory preset to read wet acid batteries or optional maintenance free Gel-Cell batteries which can be used for convenience charging. The BDI also has warning lights to alert operators of low battery conditions. Battery chargers are optional for each machine purchased as they are external chargers and not built-in to the machine. The hour meter is used in conjunction with scheduled maintenance requirements outlined in each operation manual. The hour meter also serves as a display for trouble shooting and changing maximum speed parameters.

Additional Features Include:  Horn, variable speed thumb controls, lift and lower controls and reversing safety devise in handle.

RH4000 Capacity: 4000 lb/1815 kg,  RH6000 Capacity: 6000 lb/ 2722 kg.

Lift heights:  3.875”/98.4 mm for 52" diameter rolls, 1.875"/47.6 mm for 40" diameter rolls, and .75"/19 mm for 34" diameter rolls.

Gradient Performance: 20% at full rated capacity.

AC Drive Motor with regenerative braking

Electronic speed controller with variable travel speeds .   Electronic speed controller can be preset for a maximum travel speed between .9 and 2.8 mph.  Unless otherwise specified at time of order, maximum travel speed will be factory preset at 1.8 mph.

Electro-magenticdisc brake which locks with handle in upright or extreme lowered position for added safety - Creep speed control with handle in upright position

Battery: 24-volt industrial, 340 amp hour, 700 lb min. with battery discharge indicator and Hour Meter.  Optional: Gel-Gell 24-volt industrial batteries for convenience charging for three shift operations.

Articulating tandem polyurethane load wheels, polyurethane stability casters and 9” rubber or poly drive tire

Handle: Dual thumb operated butterfly control with forward and reverse travel, lever control for lift and lower on both side of handle, horn button, snail creep button, safety reversing switch movers machine forward if activated when traveling in reverse in tight areas, key switch.

Safety orange powder coating for durability or optional “FDA” approved epoxy powder coating with stainless steel hardware for food and pharmaceutical applications.

Base Frame Dimensions: width and length are determined by customers needs   Uint shown is: 47.6" width (fork width 45") x 57" length (fork length 33.37")

Weight Approx. 1500 lb. with battery.

Self Powered Roll Transporters

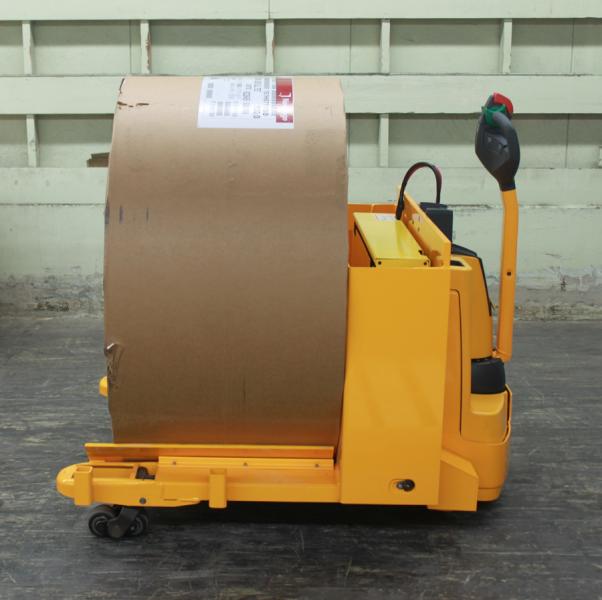

The model RH4000 (4000 lb/ 1815 kg capacity) and the RH6000 (6000 lb/2722 kg capacity) are specifically designed for transporting large rolls from 28" to 48" or 48" to 60" in diameter. Rolls are supported by two fixed roll support arms lined with white non-marking SBR rubber to cushion and prevent damage to the rolls.  The cushioned support arms can accomodate a  range of different diameters while protecting the rolls surface from impressions.  The support arms are available in lengths from 24" to 60" depending on the customers requirements.  In addition the diameter range can be adjusted to customer specifications.  Also included is a removable safety bar to contain the roll(s) when being transported.

 If you'd like to learn more about our roll handling equipment feel free to contact us today.
