Eagle-Grip® 2 Series Attachments
- Features
- Specification
- Videos
EG2 Light-Duty Automatic Double Clamping Mechansim
Clamping Mechanisms Articulate for Handling Mis-Aligned Drums
1000 lb/453 kg Capacity per Drum
Handles Any Size Chimed Steel, Plastic or Fiber Drum
Rubber Belt Cradles Eliminate Cosmetic Damage and Abrasions to Drum Surface
12-Month Unconditional Warranty
OSHA required Safety Chain Attaches to Lift Truck in Seconds.
SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Includes an anti-static rubber belt which rests against the lower side of the drum when lifted.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.
Quick-Claw™ is a trademark of Lifting Technologies, Inc.
| EAGLE-GRIP® 2 SERIES (Light Duty - Double Clamping Mechanism) | ||||||
| Model |
Capacity |
Weight | Dimensions H x L x W | Drums | Attachment Mounting | |
| (lbs/kg) | (lbs/kg) | (inches) | (mm) | Handled | ||
| EG2LDCM-CM | 1000/450 | 66/30 | 32x14x14 | 813x356x356 | 1 | Carriage Mount |
| EG2LDCM-F | 1000/450 | 140/64 | 36x35x31 | 914x889x787 | 1 | Fork Mount |
| EG2LDCM-FQC | 1000/450 | 261/119 | 41x47x31 | 1041x1194x787 | 1 | Fork Mount |
| EG2LDCM2-F | 1500/681 | 200/91 | 36x35x38 | 940x889x965 | 1 or 2 | Fork Mount |
| EG2LDCM2-FQC | 1500/681 | 296/134 | 41x47x38 | 1041x1194x965 | 1 or 2 | Fork Mount |
| * Consult factory for EG2 heads mounted in heavy frame applications | ||||||
LOST LOAD CENTER: 15-1/4”
The distance from the tip of the forks to the center of the drum.
VERTICAL CENTER OF GRAVITY: 8”
The distance measured from the bottom of the attachment to the center point on the mast at which it balances.
HORIZONTAL CENTER OF GRAVITY: 19”
The distance of point that is measured between the beginning of the fork pockets to the end of the attachment which the attachment balances.
Light-Duty Drum Handling Attachments

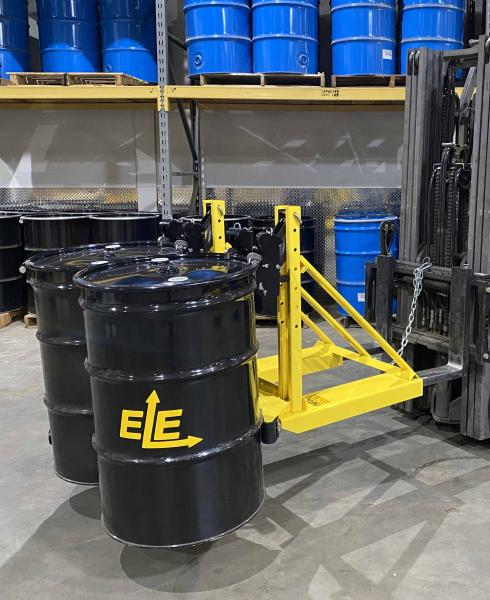

The Eagle-Grip® 2 Series of lift truck attachments utilize a light duty double articulating automatic clamping mechanism for handling any size steel, plastic or fiber chimed drum. All Eagle-Grip® clamping mechanisms are completely mechanical, requiring no electrical or hydraulic connections to the lift truck. The articulating or swivel feature of the EG2 heads permit pickup of drums that are misaligned and slightly separated from one another. Standard belt bases support the lower side of the drum, eliminating dents or cosmetic marring. Optional non-sparking clamps are available for handling drums in hazardous areas. The totally enclosed fork pockets and OSHA require safety chain allows the operator to secure the attachment to the lift truck in seconds. This model is available as a single drum attachment, double drum attachment and as a carriage mount that fits all lift trucks and walkie stackers. Capacity: 1000 lb/ 453 kg per drum.
All Eagle-Grip® Attachments meet OSHA 1910-178 requirements
Built to conform ANSI/ITSDF B56.11.4-2013 Standard
30-DAY FREE TRIAL AVAILABLE
SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Includes an anti-static rubber belt which rests against the lower side of the drum when lifted.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.
