Eagle-Grip® Model EL4F
- Features
- Specification
- Videos

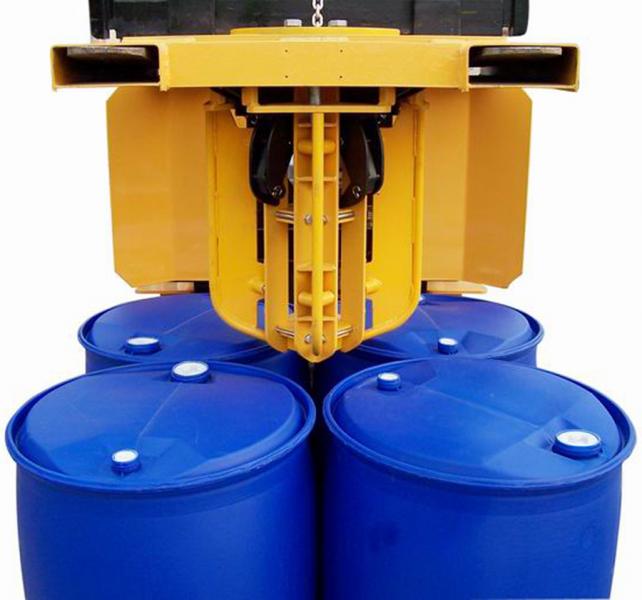

All mechanical automatic clamping mechanisms handle from one to four drums at a time without any hydraulic or electrical connections to the lift truck. Ideal for palletizing drums or unloading trailers. Simply position the center guide over the four drums, lower and lift. Once the drums are gripped, the clamping mechanisms safely secure the drums in place for transportation over dock plates and other unlevel surfaces. Recommended for high volume drum handling when loading/unloading trailers and palletizing drums off filling lines.
To release the drums, fully lower the drums onto a pallet or floor then elevate the center guide upward.

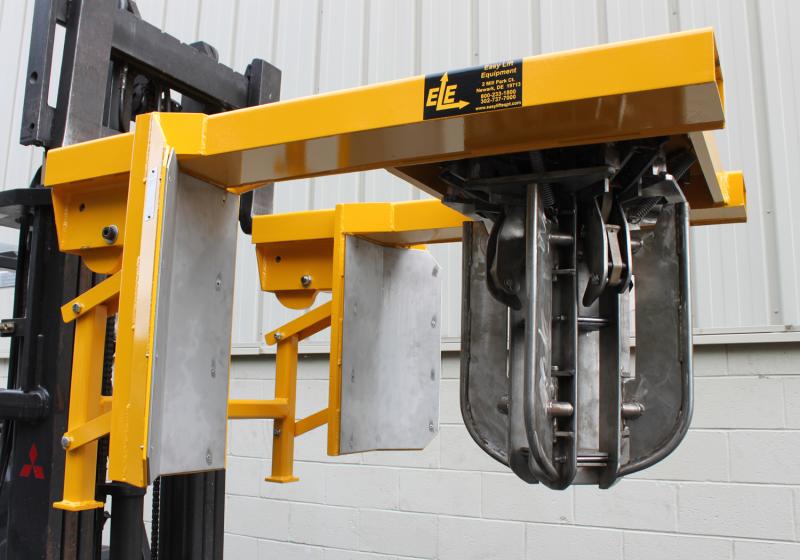

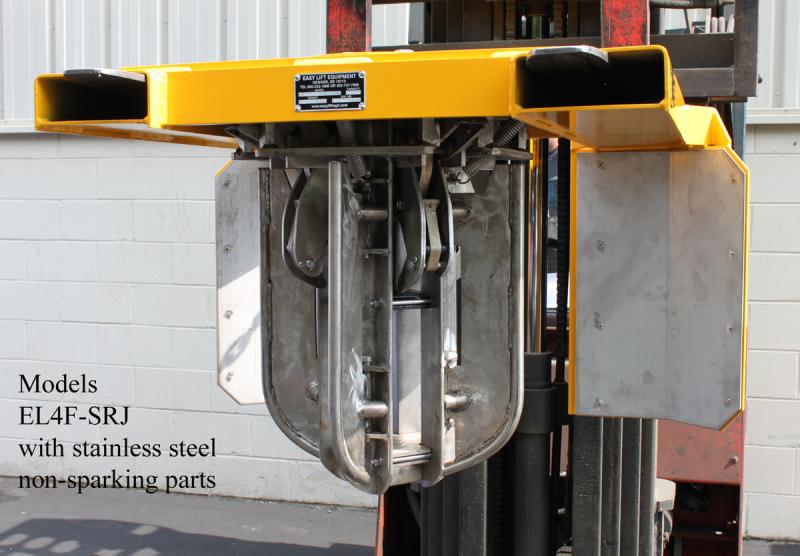

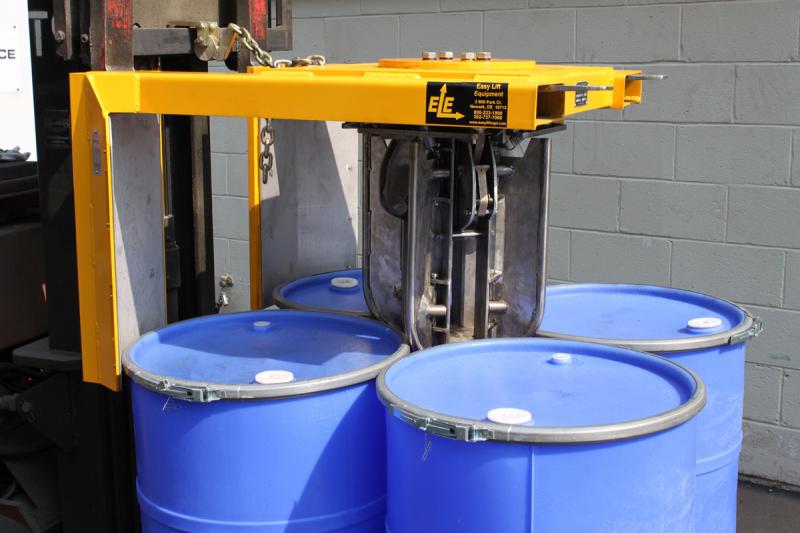

SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws.(Click view all for images)

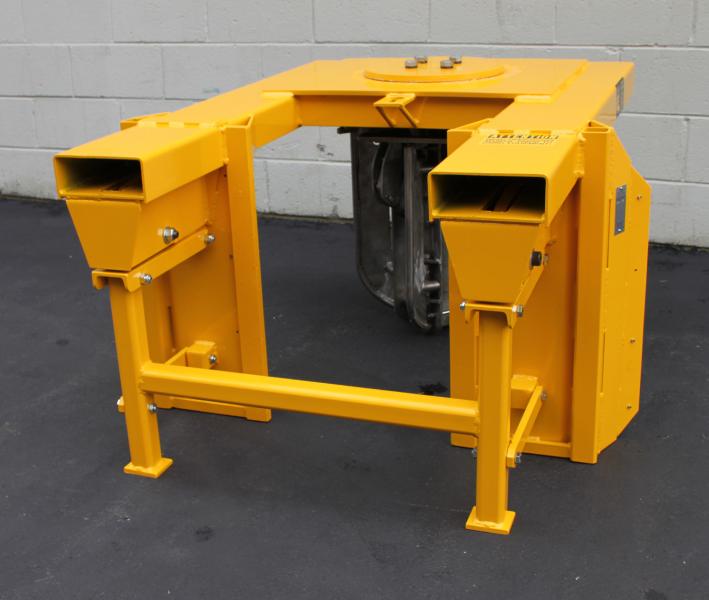

QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw option. (Click view all for images)
Quick-Claw™ is a trademark of Lifting Technologies, Inc.
| EAGLE-GRIP® MODEL EL4F ATTACHMENT SPECIFICATIONS | ||||||
| Model | Capacity | Weight | Dimensions H x L x W | Drums | Attachment Mounting | |
| (lbs/kg) | (lbs/kg) | (inches) | (mm) | Handled | ||
| EL4F | 8000/3630 | 555/252 | 26x38x43.5 | 660x965x1105 | 1,2,3 or 4 | Fork Mount with Safety Chain |
| EL4F-SRC | 8000/3630 | 575/261 | 26x38x43.5 | 660x965x1105 | 1,2,3 or 4 | Fork Mount with Safety Chain and Non-Sparking Parts |
| EL4FQC | 8000/3630 | 645/293 | 27x50.5x45 | 685x1283x1143 | 1,2,3 or 4 | Fork Mount with Quick-Claw Cam Locks |
| EL4FQC-SRC | 8000/3630 | 665/302 | 27x50.5x45 | 685x1283x1143 | 1,2,3 or 4 | Fork Mount with Quick-Claw Cam Locks and Non-Sparking Parts |
| EL4CB | 8000/3630 | 479/217 | 33x26.5x27 | 838x673x673 | 1,2,3 or 4 | Crane, Boom or Hoist |
| EL4CB-SRC | 8000/3630 | 499/226 | 33x26.5x27 | 838x673x673 | 1,2,3 or 4 | Crane, Boom or Hoist and Non-Sparking Parts |
Four Drum Handling Attachments

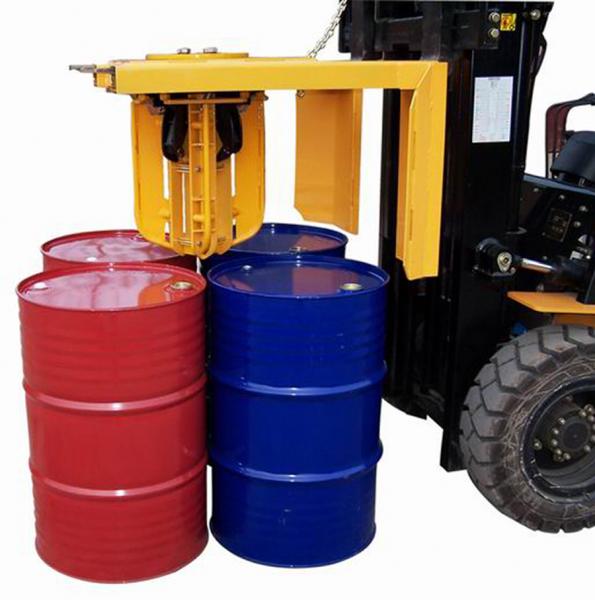

The Model EL4F is an all mechanical lift truck attachment that utilizes automatic clamping mechanisms to handle from one to four drums at a time without any hydraulic or electrical connections to the lift truck. The EL4F is ideal for palletizing drums or unloading trailers. Simply position the center guide over the four drums, lower and lift. Once the drums are gripped, the clamping mechanisms safely secure the drums in place for transportation over dock plates and other unlevel surfaces.
30-DAY FREE TRIAL AVAILABLE
All Eagle-Grip® Attachments meet OSHA 1910-178 requirements
Built to conform ANSI/ITSDF B56.11.4-2013 Standard
To release the drums, fully lower the drums onto a pallet or floor then elevate the center guide upward.The frame of the EL4F aids the operator in approaching the drums before lowering the attachment to grip the drums. The EL4F has a floating head with centering guide which helps position the clamping mechanism into position.

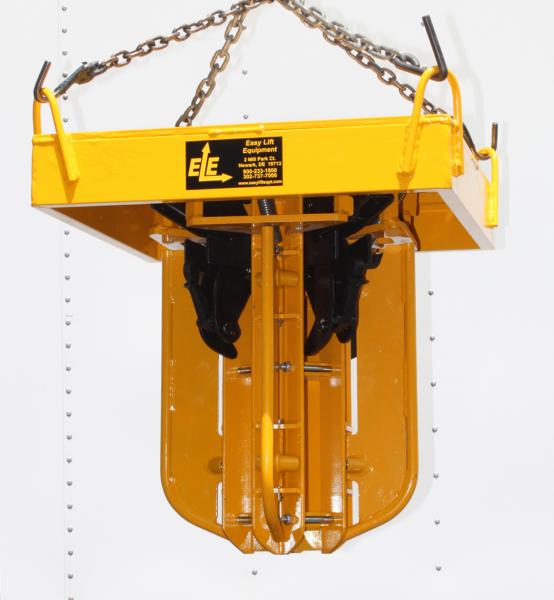

The Model EL4CB has lifting loops instead of fork pockets for use on hoists and cranes. All specifications are the same for both the EL4CB and EL4F models. The Model EL4CB-SRC has all surfaces and parts which could contact a drum manufactured in stainless steel eliminating the potential for sparks.
