Eagle-Grip® 1 Series Attachments
- Features
- Specification
- Videos
EG1 Automatic Light-Duty Clamping Mechanism
750 lb/340 kg Capacity per Drum
Handles Any Size Chimed Plastic or Steel Drum
12-Month Unconditional Warranty
Optional Rubber Belt Cradles Eliminate Cosmetic Damage and Abrasions to Drum Surface
OSHA require Safety Chain Attaches to Lift Truck in Seconds

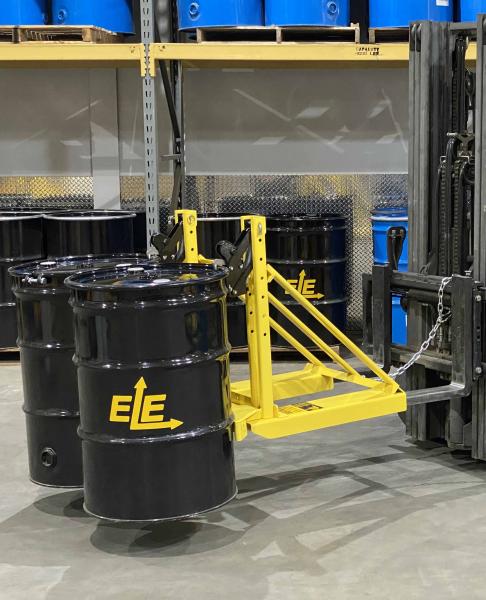

Available as single of double drum attachments
SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Includes an anti-static rubber belt which rests against the lower side of the drum when lifted.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw option. Fork pockets are extended to 43" in length.
Quick-Claw™ is a trademark of Lifting Technologies, Inc.
| EAGLE-GRIP® 1 SERIES (Light Duty - Single Clamping Mechanism) | ||||||
| Model | Capacity | Weight | Dimensions | Dimensions | Description | |
| (lbs/kg) | (lbs/kg) | H x L x W (inches) | H x L x W (mm) | Attachment Mounting | ||
| EG1SCM-CM | 750/340 | 49/23 | 32x14x14 | 813x356x356 | 1 | Carriage Mount |
| EG1SCM-F | 750/340 | 123/56 | 36x34x31 | 914x864x787 | 1 | Fork Mount |
| EG1SCM-FQC | 750/340 | 244/111 | 41x47x31 | 1041x1194x787 | 1 | Fork Mount |
| EG1SCM2-F | 1500/680 | 175/80 | 36x34x38 | 914x864x965 | 1 or 2 | Fork Mount |
| EG!SCM2-FQC | 1500/680 | 296/134 | 41x47x38 | 1041x1194x965 | 1 or 2 | Fork Mount |
LOST LOAD CENTER: 15-1/4”
The distance from the tip of the forks to the center of the drum.
VERTICAL CENTER OF GRAVITY: 8”
The distance measured from the bottom of the attachment to the center point on the mast at which it balances.
HORIZONTAL CENTER OF GRAVITY: 19”
The distance of point that is measured between the beginning of the fork pockets to the end of the attachment which the attachment balances.
Economical Light-Duty Drum Handling Attachments
The Eagle-Grip® 1 series of lift truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum. All models are knockdown units which bolt together, but are typically shipped assembled and ready for use. The fork pockets and safety chain provide a quick and easy installation to any lift truck. All EG1 models are recommended for light duty applications and not intended for use in high volume drum handling. The model EG1SCM-CM is a carriage mount model that can fit any ITA class II carriage or walkie stacker. For walkie stacker applications, please specify the brand and type of carriage. Optional belts are available to eliminate any cosmetic damage to the lower side of the drum.
All Eagle-Grip® Attachments meet OSHA 1910-178 requirements
Built to conform ANSI/ITSDF B56.11.4-2013 Standard
30-DAY FREE TRIAL AVAILABLE
SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Includes an anti-static rubber belt which rests against the lower side of the drum when lifted.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.
