RCR20 Roll Handling Attachment for Lift Trucks
  • Features
  • Specification
  • Videos
  • Completely self-contained power with no hydraulic or electrical connections required.
  • Clamp & rotation functions mounted in control box with magnetic backing on coil cord to lift truck with safety clamp & unclamp features to eliminate accidental slippage.
  • Control box cord with quick disconnect
  • Adjustable rotation speed and clamping pressure with variable flow and pressure regulators.
  • 360-degree continuous rotation, left or right.
  • Mounts on any ITA Class II carriage of lift truck, walkie stacker or straddle stacker.
  • Quick and simple 2 bolt removal from lift truck without any hydraulic or electrical connections.
  • Positive locking gearbox to prevent drifting.
  • Adjustable flow control valve and pressure gauge to regulate clamp pressure for sensitive materials
  • Adjustable flow control valve to regulate rotation speed of clamp
  • Maximum load capacity: RCR20-40  2,000 lb./ 907 kg. and RCR30-50 Capacity 2,000 lb./907 kg.
  • RCR20-40 Handles roll diameters  from 20” / 508 mm to 40” / 1016 mm
  • RCR30-50 Handles roll diameters from 30”/762 mm to 50”/1270 mm.
  • Rotation: 360 degrees, continuous
  • SBR Rubber coated clamping pads: 16” / 406 mm in overall height.
  • Battery pack and internal automatic charger included in power compartment
  • Attachment Weight: RCR20-40 850 lbs. / 386 kg. & RCR30-50 950 lbs. / 431kg.
  • Finish: Powder Coated Safety Yellow

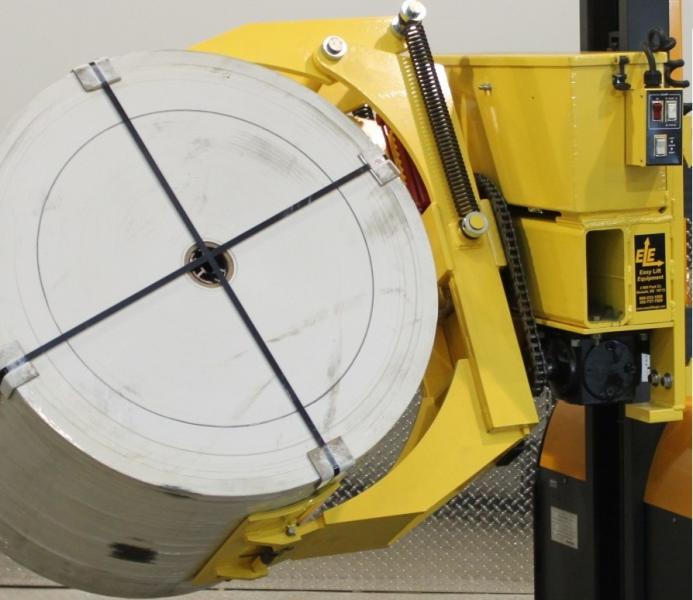

Self Powered Roll Clamp Rotator Attachment

The RCR20-40 and RCR30-50 are completely self contained lift truck attachments that can be mounted to any Class II carriage.  Capable of handling both vertical and horizontal rolls, the RCR line of roll handling attachments offers a flexible solution to large roll handling applications without the need to dedicate a truck to handling rolls.

 MODEL RCR20-40 handles roll diameters from 20”/508 mm to 40”/1016 mm.

Capacity 2,000 lb./900 kg.

MODEL RCR30-50 handles roll diameters from 30”/762 mm to 50”/1270 mm.
Capacity 2,000 lb./907 kg.
