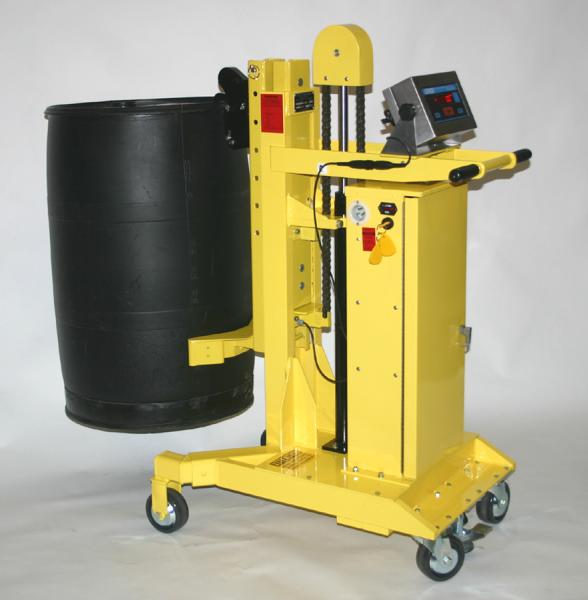

EasyLift - SL Narrow Aisle Drum Transporters

  • Features
  • Specification
  • Videos

EG1 Single Automatic Clamping Mechanism

Easy to use foot pump lift and lower

Standard Drum Lift Height 20" above Floor Level

Darcor Ergonomic Casters 2" x 5": (2) Swivel, (2) Rigid

Step-down Foot Floor Lock for added Safety

Safety Yellow Powder Coating for Durability

12-month warranty, made in USA.

OPTIONAL FEATURES SHOWN BELOW:

  • FDA Approved epoxy powder coating
  • SRC Option: EG1 non-sparking stainless steel outer housing and jaws with rubber belt and anti-static grounding strap
  • Air tank pneumatic lift for hazardous areas (includes SRC option)
  • EG2 double clamping mechanism
  • SRC Option: EG2 non-sparking stainless steel outer housing and jaws with rubber belt and anti-static grounding strap
  • Stainless steel construction
  • 24-Volt DC powered lift
  • Increased lift heights
  • 8" wheels for rough surfaces
  • Hand Brakes for traveling down inclined surfaces
  • Scales with or without intrinsically safe indicators
  • Jib for handling drums into containment vessels

WEIGHT CAPACITY: 700 LB/317 KG WITH MANUAL LIFT  (Lifts 0.750" per stroke on the foot pedal)

WEIGHT CAPACITY: 800 LB/ 363 KG WITH PNEUMATIC LIFT   (Example of the number of lifts produced: With the tank filled at 120 psi this model will lift & lower a 600 lb drum, 8" above the floor, 34 times before needing a recharge.)

WEIGHT CAPACITY: 800 LB/ 363 KG WITH DC POWERED LIFT   (Example of the number of lifts produced: With fully charged batteries, this model will lift & lower a 600 lb. drum, 8" above the floor, 786 times before the batteries are totally discharged)

DIMENSIONS: 27” WIDE x 36” LONG x 48.75” HEIGHT  -  686 mm WIDE x 914 mm LONG x 1238 mm HEIGHT

SHIPPING WEIGHT:  600 lb, Freight Class 85 from zip code 19713

NARROW AISLE  27” WIDE “SL” MODEL

Finally! A simple, safe and effective method that addresses the risks in manual materials handling in moving, lifting and lowering drums without a forklift - all while the drum remains completely in the vertical position. The EasyLift Drum Transporter can safely and easily pick up steel, poly, and fiber drums, raising or lowering to a full twenty (20") inches! Eliminate strained backs, pinched fingers and the risk of serious injuries caused by manhandling drums - look into the EasyLift Drum Transporter today!



30-DAY FREE TRIAL FOR IN-PLANT EVALUATION



Drum Weighing Equipment -

Optional scales provide a means to weigh drums, pump from drums by weight, batching or dosing by weight and dramatically reducing the time required to inventory drum weights without floor scales.  Rental models available for conducting physical inventories.

Plastic, Fiber and Steel Drum Lifts/Stackers

  • Dramatically reduces the risk of injuries associated with moving drums.

  • Moves drums on/off wooden pallets, floor scales, and spill pallets without manhandling!

  • Drums always stay vertical - no tipping!

  • Easy to use for female operators!

  • Capacity: 400 to 800 lbs.

  • Choice of: foot pedal lift, DC powered lift, pneumatic lift or air powered lift.

  • Darcor™ ergonomic casters allow easy movement of all heavy loads!

  • Positive clamping mechanism for handling steel, plastic and fiber chimed drums.

  • Step-down foot floor lock for added safety.

  • Virtually maintenance - free operation.

  • Safety Yellow Powder Coating/FDA Approved Powder Coating or Stainless Steel Construction

  • 12-month warranty, made in USA.


    To learn more about our drum handling equipment please contact us today.

EasyLift - SL Narrow Aisle Drum Transporters:
Product Document Download (PDF)
