Eagle-Grip® 3 Series Attachments
- Features
- Specification
- Videos

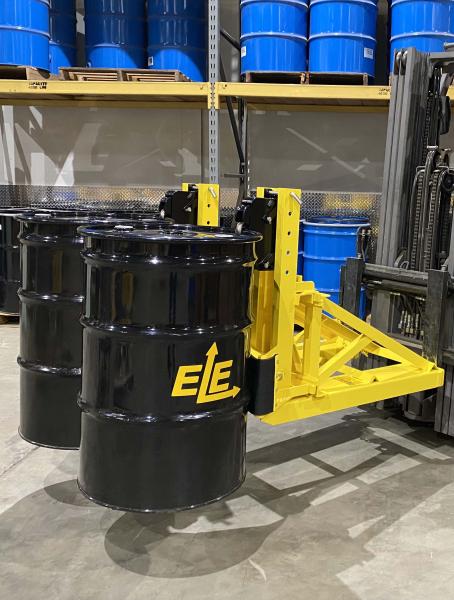

EG3 Heavy-Duty Automatic Single Clamping Head
1500 lb/680 kg Capacity per Drum
Handles Any Size Chimed Steel, Plastic or Fiber Drum
Heavy-Duty Rubber Belt Cradles Eliminate Cosmetic Dents and Abrasions to Drum Surface
12-Month Unconditional Warranty
OSHA required Safety Chain with Cam Lock Attaches to Lift Truck in Seconds
Available as Single or Double Drum Attachments
SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Standard rubber belts are replaced with anti-static rubber belts for added non-sparking protection.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.
Quick-Claw™ is a trademark of Lifting Technologies, Inc.
| EAGLE-GRIP ® 3 SERIES (Heavy Duty - Single Clamping Mechanism) | ||||||
| Model | Capacity | Weight | Dimensions H x L x W | Drums | Attachment Mounting | |
| (lbs/kg) | (lbs/kg) | (inches) | (mm) | Handled | ||
| EG3SCM-CM | 1500/680 | 85/39 | 33x15x18 | 838x381x457 | 1 | Carriage Mount |
| EG3SCM-NF | 1500/680 | 228/104 | 37x47x24 | 940x1194x610 | 1 | Narrow Fork Mount |
| EG3SCM-NFQC | 1500/680 | 316/144 | 42x47x24 | 1067x1194x610 | 1 | Narrow Fork Mount |
| EG3SCM-F | 1500/680 | 306/139 | 37x47x33 | 940x1194x838 | 1 | Adjustable Fork Mount |
| EG3SCM-FQC | 1500/680 | 394/179 | 42x47x33 | 1067x1194x838 | 1 | Adjustable Fork Mount |
| EG3SCM2-F | 3000/1361 | 382/173 | 37x47x33 | 940x1194x838 | 1 or 2 | Adjustable Fork Mount |
| EG3SCM2-FQC | 3000/1361 | 470/213 | 42x47x41 | 1067x1194x1042 | 1 or 2 | Adjutable Fork Mount |
LOST LOAD CENTER:
The distance from the tip of the forks to the center of the drum.
EG3SCM-CM 23” from carriage to center of drum
(12” from carriage to beginning of drum)
EG3SCM-F 13” to center of drum measurement
EG3SCM2-F 13” to center of drum measurement
EG3SCM-NF 12” from end of packets to center of drum
VERTICAL CENTER OF GRAVITY:
The distance measured from the bottom of the attachment to the center point on the mast at which it balances.
EG3SCM-CM 15”
EG3SCM-F 10” (w/43” SOM)
EG3SCM2-F 12” (w/43” SOM)
EG3SCM-NF 10”
EG3SCM-FQC 13” (w/43” SOM)
EG3SCM2-FQC 15” (w/43” SOM)
HORIZONTAL CENTER OF GRAVITY:
The distance or point that is measured between the beginning of the fork pockets to the end of the attachment which the attachment balances.
EG3SCM-CM 6-1/4” From face of carriage with head & belt installed.
EG3SCM-F 30”
EG3SCM2-F 31-1/2”
EG3SCM-NF 28”
EG3SCM-FQC 28”
EG3SCM2-FQC 29-1/2”
Heavy-Duty Single Clamping Mechanisms
The Eagle-Grip® 3 Series of lift truck attachments utilize a heavy duty Eagle-Grip® single automatic clamping mechanism for handling steel and plastic drums in high volume applications. The clamping mechanisms are completely mechanical requiring no hydraulic or electrical connections. Positive actions jaws insure safe transporting of drums without damage to drum chimes. Carriage mounted models are available to mount directly on the carriage of most lift trucks.
Fork mounted models enable lift truck operators to install/remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the lift truck.
All Eagle-Grip® Attachments meet OSHA 1910-178 requirements
Built to conform ANSI/ITSDF B56.11.4-2013 Standard
30-DAY FREE TRIAL AVAILABLE
Attachments handling 2 or more 55-gallon drums are narrower than the width of the drums themselves. This makes easy unloading of drums which are tightly packed in trailers or overseas containers. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic abrasions.
Capacity: 1500 lb/680 kg per drum
SRC OPTION FOR HANDLING DRUMS IN HAZARDOUS AREAS: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws. Standard rubber belts are replaced with anti-static rubber belts for added non-sparking protection.
QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.
If you'd like to learn more about our drum handling equipment feel free to contact us today.
