Eagle-Talon Grip Attachments

  • Features
  • Specification
  • Videos

Model ETG1 under hook single clamping mechanism with adjustable counter weight for variuos diameter drums.  Lifting point of attachment is also adjustable to keep drums at true vertical when lifted.  One hand operation to keep attachment against drum when lifting.  Options include non-sparking clamping jaws and rubber protective belt cradle to rest against sidewall of drum when lifted.  Capable of lifting most all chimed plastic, fiber and steel chimed drums.  Made in USA - 1 year warranty.

Model ETG1 - Handles 1 drum at a time - Capacity 1500 lb/ 680 kg. - Weight 75 lb/34 kg. - Dimensions: 27" H x 24" L x 14" W.

Talon Grip Attachments

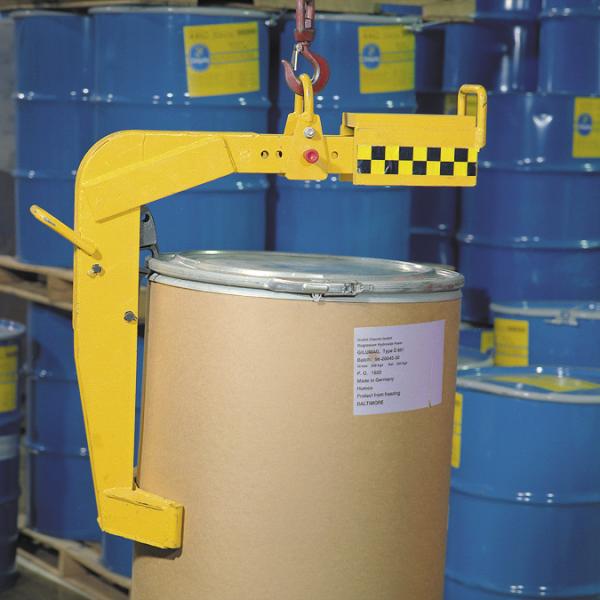

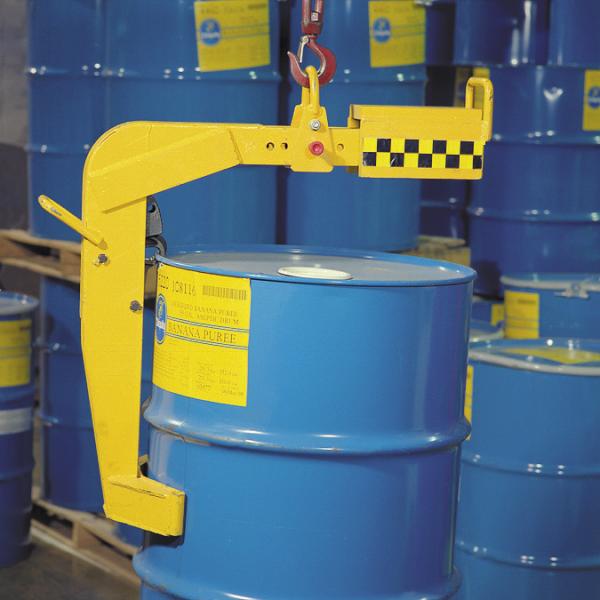

The model ETG1 is an under hook attachment used for lifting and transporting all types of steel fiber and plastic chimed drums. The clamping mechanism of the EG1 is completely mechanical and requires no electrical connection between the hoist. An adjustable counter weight is required to keep drums of different diameters and weights in a vertical position when lifted. Typically, the weight is preset to a specific drum to keep the drum when palletizing drums from fill lines. An optional rubber belt eliminates abrasions to the sidewall of the drum. Non-sparking jaws are also available as an option.

All Eagle-Grip™ Attachments meet OSHA 1910-178 requirements

Built to conform ANSI/ITSDF B56.11.4-2013 Standard

FREE 30-DAY TRIAL AVAILABLE


If you'd like to learn more about any of our drum handling equipment feel free to contact us today.

Eagle-Talon Grip Attachments:
Product Document Download (PDF)
