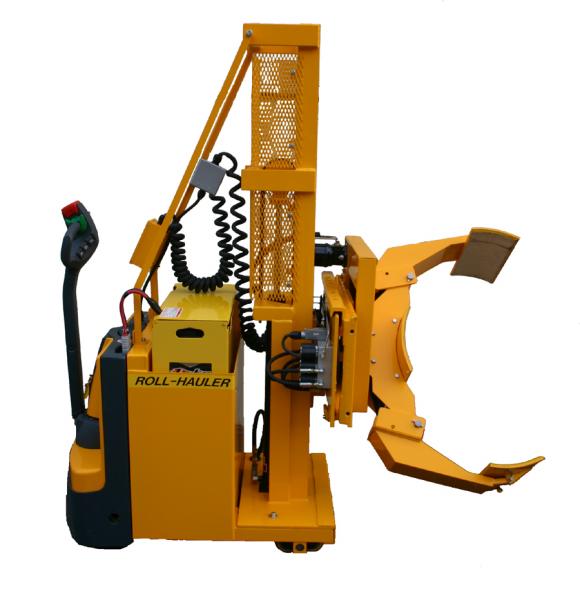

Roll-Haulers™ With Power Travel Capacities to 1500 lb/680 kg

  • Features
  • Specification
  • Videos

All Roll-Hauler™ models are supplied with a key switch, battery discharge indicator and hour meter. The key switch must be activated to operate any function of the machine including the control box.. All models include a large 700 lb. 24-volt wet acid industrial battery which can operate the machine for 16 hours continuously. The battery discharge indicator (BDI) is a bar graph type which lets the operator know when the machine requires recharging. This type of BDI is extremely helpful in determining charging requirements depending on usages especially during 3 shift operations. BDI’s are factory preset to read wet acid batteries or optional maintenance free Gel-Cell batteries which can be used for convenience charging. The BDI also has warning lights to alert operators of low battery conditions. Battery chargers are optional for each machine purchased as they are external chargers and not built-in to the machine. The hour meter is used in conjunction with scheduled maintenance requirements outlined in each operation manual. The hour meter also serves as a display for trouble shooting and changing maximum speed parameters.

Additional Features of our Roll-Haulers™ Include:  Horn, variable speed thumb controls, lift and lower controls,  reversing safety devise in handle (Belly Button), control box with coiled cord for clamp and rotation functions, hydraulic cylinder flow control valve.

Standard Capacity: 1000 lb/454 kg optional up to 1500 lb/680 kg, Lift height 20”/508mm optional up to 144”/3,657mm.

Gradient Performance: 20% at full rated capacity.

AC Drive Motor with regenerative braking

Electronic speed controller with variable travel speeds .   Electronic speed controller can be preset for a maximum travel speed between 1.8 and 3.85 mph.  Unless otherwise specified at time of order, maximum travel speed will be factory preset at 1.8 mph.

Electro-mechanical disc brake which locks with handle in upright or extreme lowered position for added safety - Creep speed control with handle in upright position

Battery: 24-volt industrial, 340 amp hour, 700 lb min. with battery discharge indicator and Hour Meter.  Optional: Gel-Gell 24-volt industrial batteries for convenience charging for three shift operations.

Lift cylinder on with lowering speed flow control valve

Articulating tandem polyurethane load wheels, polyurethane stability casters and 9” rubber or poly drive tire

Handle: Dual thumb operated butterfly control with forward and reverse travel, lever control for lift and lower on both side of handle, horn button, snail creep button, safety reversing switch movers machine forward if activated when traveling in reverse in tight areas, key switch.

Clamp:  Roll-Haulers are available for Several Side Rotating Clamps depending upon model and roll sizes being handled.  All RCR and LRCR roll clamps are available with small roll adapters to increase the clamps range of roll diameters each clamp can handle.

Safety orange powder coating for durability or optional “FDA” approved epoxy powder coating with stainless steel hardware for food and pharmaceutical applications.

Base Frame Dimensions: 28.5" width x 54 length (optional @ 41.5" length) x 77.25" height.  Weight Approx. 2500 lb.

Made in USA - Factory Mutal Global Approved for "EE" ratings

Self Powered Roll Transporters

Roll-Haulers™ are the most ergonomic equipment available for transporting, weighing and rolls from pallets to converting machines. Roll-Haulers™ are very compact for working in tight areas and are designed to fit through a 30” wide doorways and aisles. All models are provided with a large 24 volt industrial battery providing enough power to run continuously for a 2-shift operation without recharging.  Roll-Haulers™ are designed to grip rolls vertically or horizontally from pallets depending on the equipped roll clamp.    Roll- Haulers™ have been in use by film manufacturers, converters and companies with packaging applications since 1997.

30-Day Trial Toward Purchase Program



Available with single or two stage masts providing lift height to 144”/3657mm above floor level. Optional side shifters aid operators by providing 4” left or right travel from the center position of the clamp. Optional Clamping Pressure Regulator allows operator to lower clamping pressure when handling delicate roll materials.   Optional scales allow operators to weigh rolls by simply clamping and lifting the roll.

If you'd like to learn more about our roll handling equipment feel free to contact us today.
