Eagle-Grip™ 4 Series Attachments

  • Features
  • Specification
  • Videos

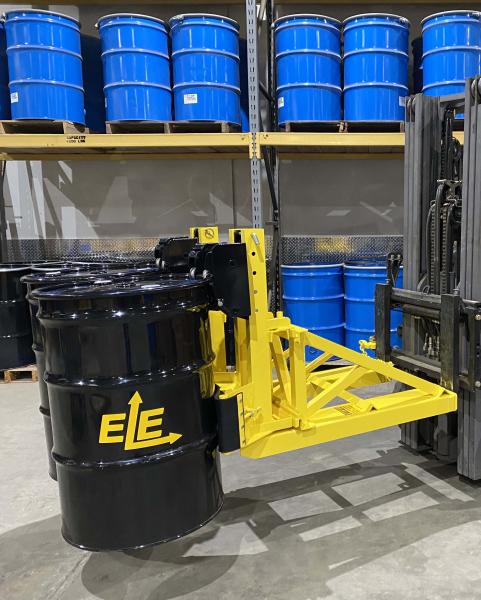

EG4 Heavy-Duty Automatic Double Clamping Mechanism

Clamping Mechanisms Articulate for Handling Mis-Aligned Drums

2000 lb/907 kg Capacity per Drum

Handles Any Size Chimed Steel, Plastic or Fiber Drum

Heavy-Duty Rubber Belt Cradles Eliminate Cosmetic Dents and Abrasions to Drum Surface

12-Month Unconditional Warranty, excluding belts

OSHA required Safety Chain with Cam Lock Attaches to Lift Truck in Seconds

All Eagle-Grip™ Attachments meet OSHA 1910-178 requirements

Available as Single or Double Drum Attachments

SRC OPTION: All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws.  Standard rubber belts are replaced with anti-static rubber belts for added non-sparking protection.

QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw™ Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw™ option.

Quick-Claw™ is a trademark of Lifting Technologies, Inc.

EAGLE-GRIP ™ 4 SERIES (Heavy Duty - Double Clamping Mechanism)
Model Capacity Weight  Dimensions H x L x W Drums  Attachment Mounting
(lbs/kg)  (lbs/kg)  (inches)  (mm) Handled
EG4DCM-CM 2000/907 110/50 35x15x18 838x381x457 1 Carriage Mount
EG4DCM-NF 2000/907 253/115 37x47x24 940x1194x610 1 Narrow Fork Mount
EG4DCM-NFQC 2000/907 341/155 42x47x24 1067x1194x610 1 Narrow Fork Mount
EG4DCM-F 2000/907 330/150 37x47x33 940x1194x838 1 Adjustable Fork Mount
EG4DCM-FQC 2000/907 418/190 42x47x33 1067x1194x838 1 Adjustable Fork Mount
EG4DCM2-F 4000/1815 432/196 37x47x33 940x1194x838 1 or 2 Adjustable Fork Mount
EG4DCM2-FQC 4000/1815 520/236 42x47x41 1067x1194x1042 1 or 2 Adjutable Fork Mount

LOST LOAD CENTER:

The distance from the tip of the forks to the center of the drum.

EG4DCM-CM       23” from carriage to center of drum

                        (12” from carriage to beginning of drum)

EG4DCM-F          13” to center of drum measurement

EG4DCM2-F        13” to center of drum measurement

EG4DCM-NF       12” from end of packets to center of drum

VERTICAL CENTER OF GRAVITY:

The distance measured from the bottom of the attachment to the center point on the mast at which it balances.

EG4DCM-CM       18-1/4”

EG4DCM-F          12” (w/43” SOM)

EG4DCM2-F        14” (w/43” SOM)

EG4DCM-NF        11-1/2”

EG4DCM-FQC      14” (w/43” SOM)

EG4DCM2-FQC    16” (w/43” SOM)

HORIZONTAL CENTER OF GRAVITY:

The distance or point that is measured between the beginning of the fork to pockets the end of the attachment which the attachment balances.

EG4DCM-CM       6 ½” From face of carriage with head & belt installed

EG4DCM-F          30”

EG4DCM2-F        33”

EG4DCM-NF       30”

EG4DCM-FQC     28”

EG4DCM2-FQC   30”



Heavy-Duty Double Clamping Mechanisms

The top of the line Eagle-Grip™ 4 Series of lift truck attachments incorporates heavy-duty Eagle-Grip™ double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. These attachments provide the safest available method of lifting and transporting any chimed drum with a lift truck. The clamping mechanisms are completely mechanical requiring no hydraulic or electrical connections. Each drum is gripped with two upper and lower jaws in heads which are spaced about 6 inches apart. The swivel action of the Eagle-Grip™ 4 Series is operator friendly permitting pickup of misaligned or slightly separated drums. The Eagle-Grip™ 4 Series is strongly recommended when handling fiber and plastic drums in excess or 600 lbs. and light gauge open head steel drums.

All Eagle-Grip™ Attachments meet OSHA 1910-178 requirements

Built to conform ANSI/ITSDF B56.11.4-2013 Standard

30-DAY FREE TRIAL AVAILABLE

Fork mounted models enable lift truck operators to install/remove the attachment in seconds without tools. Totally enclosed 43" long fork pockets with attached safety chain and cam-lock secures the attachment to the lift truck. Fork mounted models can handle 1 or 2 drums at a time.

When two 55-gallon drums are on the attachment, the two drums are wider than the attachments' width. This makes easy unloading of drums which are tightly packed in trailers or overseas containers. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic abrasions.

Capacity: 2000 lb/907 kg per drum

SRC OPTION FOR HANDLING DRUMS IN HAZARDOUS AREAS:  All metal surfaces which can contact a drum being lifted or released are non-ferrous stainless steel with non-sparking alloy clamping jaws.  Standard rubber belts are replaced with anti-static rubber belts for added non-sparking protection.

QUICK-CLAW OPTION: Eliminates the need for operator dismount from the lift truck to install the OSHA required safety chain. Quick-Claw Cam Locks automatically lock the attachment onto the lift truck blades when the attachment is lifted. A safety chain is not provided with the Quick-Claw option. (Click view all for images)

If you'd like to learn more about our drum handling equipment feel free to contact us today.
