EasyLift Roll Transporters Capacities to 600 lb/272 kg

  • Features
  • Specification
  • Videos

V-Pan and/or Roll Post per Customer Specifications

Darcor Ergonomic Casters 2" x 5": (2) Swivel, (2) Rigid

Step-down Foot Floor Lock for added Safety

Safety Yellow Polyester Powder Coating or FDA Approved Epoxy Powder Coating for Durability

Optional Roll Transporter Features :

  • FDA Approved epoxy powder coating
  • 24-Volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift
  • Increased lift height
  • 8" wheels for rough surfaces
  • Scales with or without intrinsically safe indicators

WEIGHT CAPACITY: 600 LB/272 KG WITH MANUAL LIFT, PNEUMATIC LIFT, AIR OVER HYDRAULIC LIFT, AC POWERED LIFT OR  DC POWERED LIFT

DIMENSIONS: 27” WIDE x 36” LONG x 48.75” HEIGHT  -  686 mm WIDE x 914 mm LONG x 1238 mm HEIGHT

LIFT HEIGHT IS BUILT TO SUIT CUSTOMER APPLICATION

SHIPPING WEIGHT:  600 lb, Freight Class 85 from zip code 19713

Portable Roll Handling Equipment

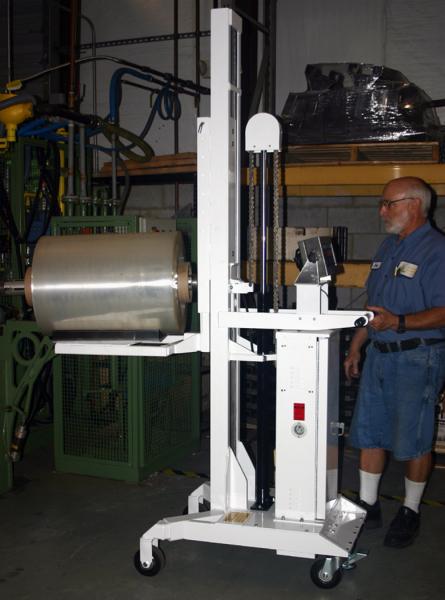

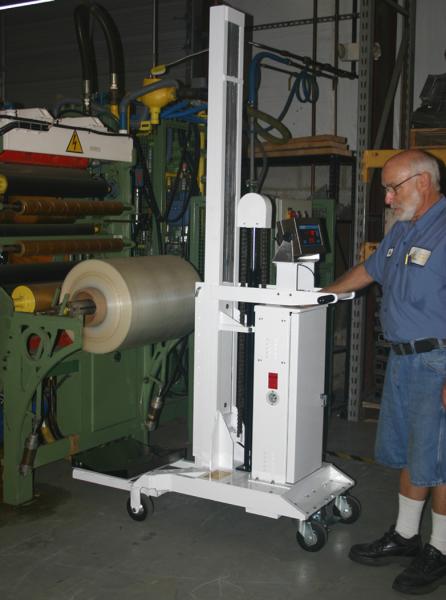

EasyLift Ergonomic Roll Transporters are available with an aluminum roll posts or stainless steel V-Pans with manual rotation. V-Pans are built to accommodate a customers roll sizes up to 30"/762 mm in diameter, weighing as much as 600 lb/272 kg.  V-Pans can be lowered to floor level, being 4.5"/114 mm in overall height, allowing the roll to drop into the V-Pan from a standard pallet.  Rolls can be manually rotated left and right to aid in placement on converting machines.  The degree of rotation depends on the roll width. The model shown in the video is finished in an FDA approved white powder coating and equipped with an optional scale providing highly accurate roll weights.  Our Roll Transporter models are available with foot pedal lift, but most customers prefer DC powered lift.



30-DAY FREE TRIAL AVAILABLE

If you'd like to learn more about our roll handling equipment feel free to contact us today.

EasyLift Roll Transporters Capacities to 600 lb/272 kg:
Product Document Download (PDF)
