All Counterbalanced Walkie models are supplied with a key switch, battery discharge indicator and hour meter. The key switch must be activated to operate any function of the machine. The battery discharge indicator (BDI) is a bar graph type which lets the operator know when the machine requires recharging. All models include a large 700 lb. 24-volt wet acid industrial battery which can operate the machine for 16 hours continuously. This type of BDI is extremely helpful in determining charging requirements depending on usages especially during 3 shift operations. BDI’s are factory preset to read wet acid batteries or optional maintenance free Gel-Cell batteries which can be used for convenience charging. The BDI also has warning lights to alert operators of low battery conditions. Battery chargers are optional for each machine purchased as they are external chargers and not built-in to the machine. The hour meter is used in conjunction with scheduled maintenance requirements outlined in each operation manual. The hour meter also serves as a display for trouble shooting and changing maximum speed parameters.
OTHER POPULAR OPTIONS INCLUDE:
Scales with Intrinsically Safe & Non-Intrinsically Safe Indicators. Label Printers when using with Non-Intrinsically safe scale option.
FDA Approved Epoxy Powder Coatings or Stainless Steel Construction.
Decreased weight capacities with shortened base frame lengths to 41.5" long x 28.5" wide. The smallest in the industry for counterbalanced models.
FM Approved “EE” Ratings for Hazardous Areas.
Headlights for dark trailers or Flashing Beacons for Safety.
Elevated base frames for traveling over burms. Stainless steel construction.
Capacity: 1500 lb./680 kg.
Lift height 48" standard single stage mast with optional two-stage masts available from 72" to 144”.
Gradient Performance: 20% at full rated capacity.
AC Drive Motor with regenerative braking.
Electronic speed controller with variable travel speeds - Electronic speed controller can be preset for a maximum travel speed between 1.8 and 3.85 mph. Unless otherwise specified at time of order, maximum travel speed will be factory preset at 1.8 mph.
Electro-mechanical disc brake which locks with handle in upright or extreme lowered position for added safety - Creep speed control with handle in upright position.
Battery: 24-volt industrial, 340 amp hour, 700 lb min. with Battery Discharge Indicator and Hour Meter. Optional: Gel-Gell 24-volt industrial batteries for convenience charging for three shift operations.
Lift cylinder on with lowering speed flow control valve
Articulating tandem polyurethane load wheels, polyurethane stability casters and 9” rubber or poly drive tire
Handle: Dual thumb operated butterfly control with forward and reverse travel, lever control for lift and lower on both side of handle, horn button, snail creep button, safety reversing switch movers machine forward if activated when traveling in reverse in tight areas, key switch,
Safety orange powder coating for durability or optional “FDA” approved epoxy powder coating with stainless steel hardware for food and pharmaceutical applications.
Base Frame Dimensions: 28.5" width x 54 length (optional @ 41.5" length) Heigth is dertermined by lift requirements. Weight Approx. 2500 lb.
Made in USA - Factory Mutal Global Approved for "EE" ratings
Counter-Balanced Walkie Stackers are available with a variety of rotating forks for lifting and rotating containers. Counterbalanced Walkie Stackers are provided in capacities up to 1500 lb/ 680 kg with single or two stage masts. Models are available in base frame lengths from 41.5” to 57” depending on required capacity. The base frames widths of these machines are 28.5” , however the carraiges can be wider to fit the customers' requirements. Counterbalanced models with rotating forks are built to suit the customers' requirements. Available options include: Side Shifters, Scales for Weighing, FDA Approved Epoxy Powder Coatings, stainless steel construction and FM Approved “EE” Ratings.
The large industrial battery provides enough power to run continuously for a 2-shift operation without recharging.

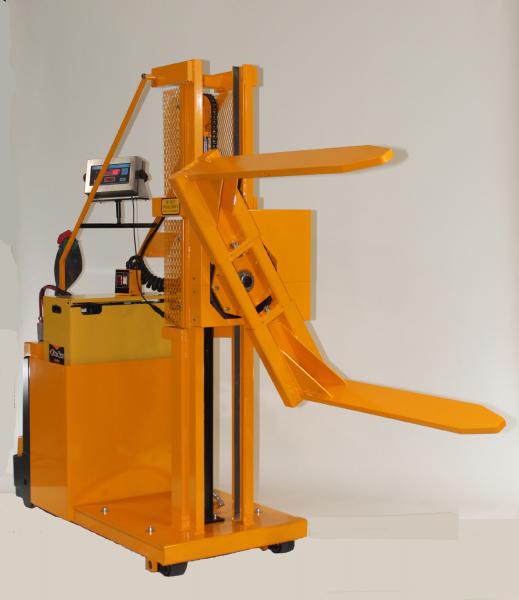

Walkie Stacker with Rotating Forks:
