Capacities up to 500 lb/ 227 kg. by means of counterweight
Darcor Ergonomic Casters: (2) 5" x 2" rigid & (2) 5" x 2" swivel.
Foot Floor Lock for added safety.
Power clamp, lift and 360 degree rotation
DC models: (2) 12-volt AGM deep cycle batteries, 24 volt system, with automatic charger, key switch, battery and discharge indicator.
Red deadman safety switch to prevent accidental opening of clamp.
AC and air powered models also available
27" narrow overall width with fixed legs
Finished with an FDA approved epoxy powder coating, stainless steel hardware and non-corroding lift chain.
Clamps and lift height vary to meet customer requirements.
Capacity up to 500 lb./227 kg
Narrow 27" overall width.
Lift heights available up to 68'' by means of single stage masts.
Available with an RCR 13/24 clamp or RCR16/26 clamp.
Clamping pad height typically 4" to 16" depending on roll length
Available with counter balanced base frames as an option.
EasyLift ELDR narrow aisle roll manipulators are typically used with our RCR 13/24 & RCR 16/26 clamps for handling rolls up to 500 lb./227 kg. The 27" overall width permits gripping rolls of various diameters and lengths from the side of a pallet, while maneuvering through tight congested areas. The RCR 13/24 & RCR 16/26 clamps are available to grip rolls from 13"/330 mm to 26"/ 660 mm in diameter in various lengths. An optional small roll adapter can be easily pinned in place to permit gripping rolls as small as 9”/228mm. The height of the roll clamping pads can be 4” to 16” in height depending on the length of the roll. All models are available with an FDA approved powder coating, which includes stainless hardware and special roller chains.
All Models available: 24-volt DC powered, 110 volt AC powered or air powered. DC cabinets house (2) 12-volt deep cycle AGM batteries, automatic charger, hydraulic pump & reservoir, key switch and battery discharge indicator. AC cabinets house 110-volt hydraulic motor/pump assemblies. The control switches for clamp, lift and rotation are located on the top of the cabinet. For added safety, a red dead-man switch must be pressed and held for the unclamp/clamp function to operate. These controls are also available in an optional control box on a heavy coil cord for operation anywhere around the machine. Flow control valves are in place to provide controlled lift and lowering speeds for placing rolls softly on converting machines. As an option for sensitive roll materials, an adjustable gauge and control can be added to regulate the hydraulic clamping pressure exerted on the rolls surface. Optional scales provide extreme accuracy in weighing roll materials for pharmaceutical applications. For clean room applications, all models are available in stainless steel construction.

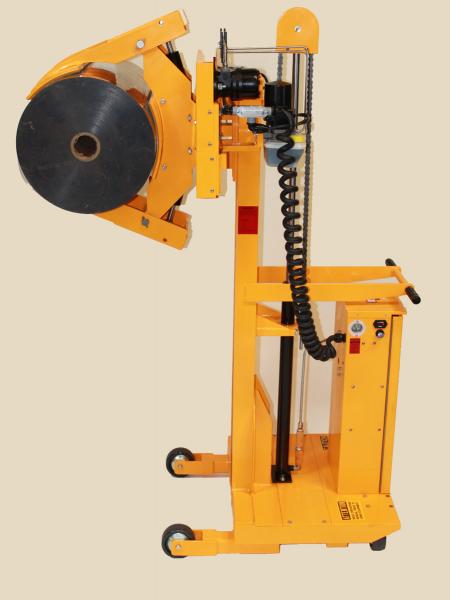

EasyLift Roll Manipulators Capacities to 500 lb/227 kg:
