Easy Lift Equipment manual push around Roll Transporters help decrease the risk of injuries caused by manually handling rolls. Roll Posts are designed to lift, transport, and place horizontal rolls from pallets to packaging machinery. EasyLift Roll Transporters are available in capacities of up to 600lbs. (270kg), contingent on the Roll Post load centers, and feature lift heights of up to 60” (152 cm) above floor level.

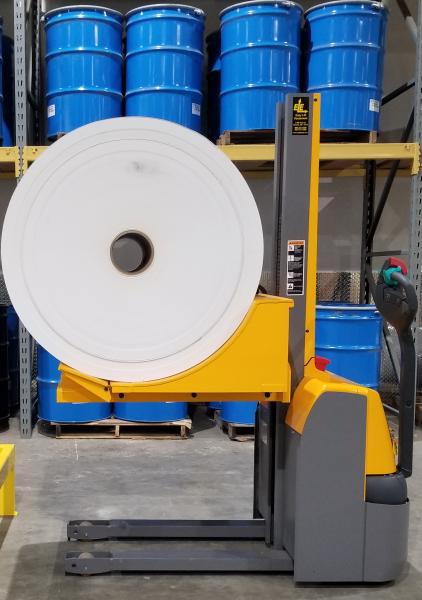

Easy Lift Equipment manual push around EL & ER Roll Transporters with DC powered lift are essential in ensuring the highest level of operator safety, and helping prevent industrial accidents caused by manually handling rolls that could hamper your operation. Available with either a Roll Post, Roll Post with Rollers, or a V-Pan, this equipment is designed to handle a wide range of roll materials, including picking rolls from pallets and loading them onto packaging machinery.

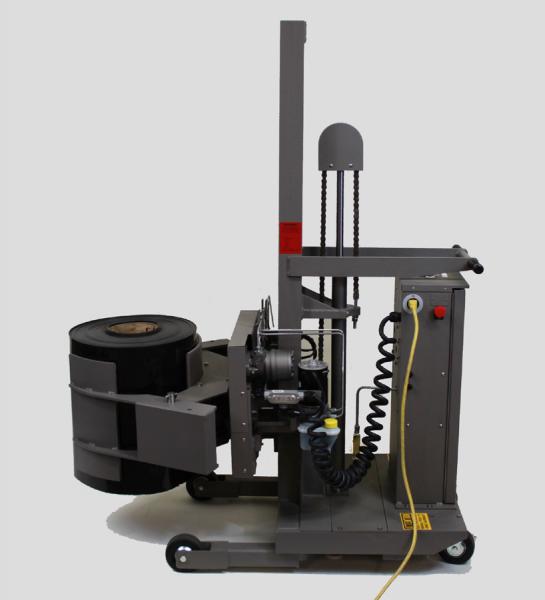

ELDR Narrow Aisle Roll Manipulator with DC powered lift, clamp, and rotate (for non-hazardous areas) are designed for handling a wide range of diameter roll materials and weighing up to 500 lbs. (226.8 kgs). ELDR models are designed to work in tight, congested areas. Straddle leg models are 39.2″ (99.6cm) in length and 29.5″ (74.9cm) in overall width. A low-profile base frame permits the clamp to grip a roll from the floor or the corner of a pallet. ELDR Roll Manipulators feature high quality Darcor® casters, an ergonomic step-down foot floor lock, and safety orange powder coating for durability.
ER Roll Manipulators with DC powered lift, clamp, and rotate (for non-hazardous areas) are designed for handling a wide diameter range of roll materials. Standard capacity is 800 lbs. (362.9 kg) but, can be built to handle up to 1,200 lbs. (544 kgs), contingent on equipment configuration. ER models are designed with a straddle leg base frame 34.5″ (87.6cm) wide and 44.2″ (112.4cm) in length based on clamp and weight capacity requirements. Available with either a single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift. ER Roll Manipulators feature high quality Darcor® casters, an ergonomic step-down foot floor lock, and safety orange powder coating for durability.

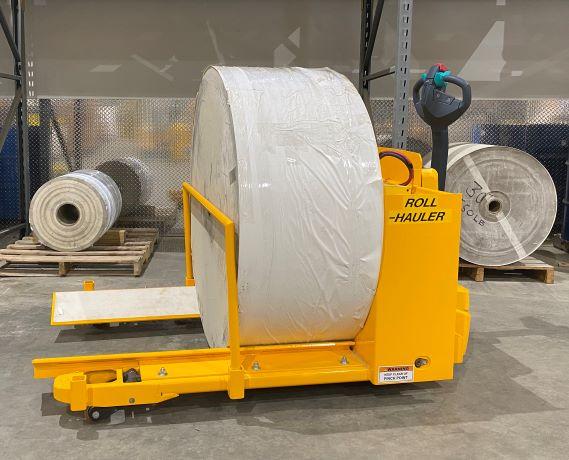

Roll-Haulers are the most ergonomic units available for handling a wide diameter range of roll materials, which can be suited to fit your specific needs. Roll-Haulers are designed to work in tightly confined production areas and are completely counterbalanced, requiring no outriggers for stability, and are ideal for traveling over long distances. Most models are designed to fit through a standard 30″ (76 cm) wide x 84″ (213 cm) high doorway. The large industrial battery provides enough power to run continuously for up to 16 hours on a single charge. Standard capacity is 800 lbs. (362.9 kg) but, can be built to handle up to 1,200 lbs. (544 kgs), contingent on equipment configuration. Available with either a single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift.
Easy Lift Equipment’s Roll Clamp Rotator (RCR20-40 & RCR30-50) attachments are completely self-contained lift truck attachments that can be quickly mounted or unmounted to any ITA Class Ⅱ Carriage on a lift truck or walkie stacker. These attachments offer a flexible solution to large roll handling applications without having to fully dedicate a lift truck to handling rolls. These attachments include self-contained power and do not receive hydraulic or electrical connections to the lift truck or walkie stacker. The clamp rotates 360° endlessly either left or right and is designed to pick or place rolls in either a vertical or horizontal orientation with weight capacities of up to 2,000 lbs. (907 kg). Units offer a clamping range from 20” (50.8 cm) to 40” (101.6 cm) or 30” (76.2 cm) to 50” (127 cm) in diameter.
Roll-Haulers equipped with Roll Forks are available in 4000 lb. (1814.4 kg) or 6000 lb. (2721.6 kg) capacities and are designed to transport 1 to 2 horizontal rolls at a time, contingent on roll fork length and roll widths. These units can transport rolls with diameters of 28” (71.1 cm) to 48” (121.9 cm) or 48” (121.9 cm) to 60” (152.4 cm), contingent on equipment configuration. The roll forks are available in 36” (91.4 cm), 48” (121.9 cm) or 60” (152.4 cm) lengths, depending on the specifics of your roll handling application.
Roll handling equipment is designed to safely lift, transport, and position rolls of material such as paper, film, foil, textiles, and nonwoven fabrics. These materials are widely used across the printing, packaging, paper converting, and manufacturing industries.
Paper roll handling equipment, for example, plays a critical role in paper mills and printing facilities by moving heavy paper rolls efficiently between storage, production lines, and printing presses. Throughout the manufacturing and distribution process, specialized roll handling systems help improve workplace safety, reduce product damage, increase productivity, and streamline material handling operations.
At Easy Lift Equipment, we understand that no two companies are alike, and each has specific needs when it comes to mobile roll handling equipment. With more than 30 years of experience in providing cost-effective material handling solutions for companies of all types and sizes, we know what it takes to help you select the right roll lifters and roll handlers for your specific application.
We’ll also help you find a roll lift or paper roll handler that is ideally suited for your budget. Not only do we provide a wide selection of roll handlers and other equipment, but we can also create customized solutions that perfectly meet your company’s needs. Our roll handling equipment is used in a variety of industries and applications, including pulp and paper, manufacturing, food and beverage, medical processing, cable drum handling, and more.
We take great pride in manufacturing heavy-duty roll lifting equipment that consistently exceed our customers’ expectations in terms of quality and reliability. All of our products are manufactured, powder coated and assembled in our Newark, DE plant, and we carefully check and load test all roll lifts and roll handlers before they leave our facility. Our equipment arrives at your dock shrink wrapped on a pallet in ready-to-use condition, with little or no additional assembly required. We care about our customers, and we go to great lengths to ensure you always get a high-functioning, durable roll handling lift or other product every time you work with Easy Lift.
At Easy Lift, our equipment is designed to promote user comfort and safety. Our ergonomically designed roll handling equipment helps increase worker productivity and is easy to use. This type of design also helps to eliminate workplace injuries and assists with the loading and unloading of materials. Roll handling and other equipment are shipped safely and are ready to use upon arrival.
For more than 30 years, Easy Lift has worked with companies to provide the roll and material handling equipment they need to keep their operations working efficiently and their employees working comfortably and safely. We have continued to innovate and develop new products throughout the years, and we always strive to incorporate them quickly to ensure your organization is getting the latest in roll and drum handling equipment while maintaining the reliability our equipment is known for.
Top companies in the chemical, pharmaceutical, paint, food processing, oil refining, and cosmetic industries trust Easy Lift for their roll and drum handling needs. We would be honored to serve your organization as well.
Contact Easy Lift Equipment today to learn more about our complete line of roll handling solutions and drum handling equipment. Our sales staff will be happy to help you explore all of your equipment alternatives. If you’re still not convinced that our roll lifts will provide the solution you’re looking for, we encourage you to take advantage of our 30-day trial offer. With a paid trial towards purchase program, we enable our customers to test our equipment in their facility at a fraction of the purchase price that is then applied to the purchase price if the customer chooses to keep the unit.
Learn more about our roll handling equipment, or contact Easy Lift to place an order.
