RH Roll-Hauler with V-Pan for Lift & Travel

Back to Self-Propelled Roll Transporter with Power Travel
flexible-hero-image

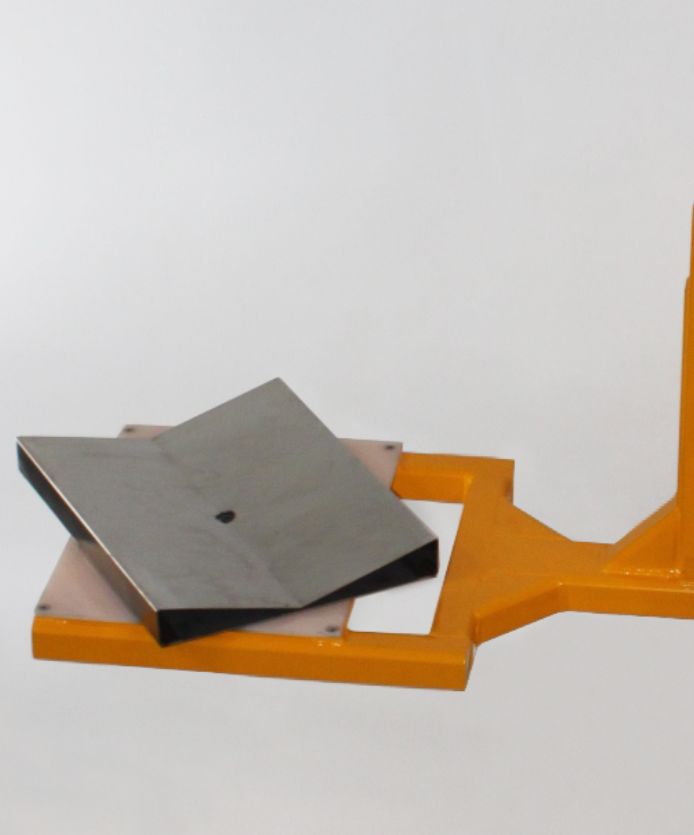

01-V-Pan-on-RH-closeup
01-V-Pan-on-RH-closeup

RH Roll-Hauler

with V-Pan for Lift & Travel

Roll-Haulers with a V-Pan are the most ergonomic equipment available for lifting, transporting, weighing, and loading a wide range of roll materials from the floor or a pallet to converting equipment. Designed for handling a wide range of roll materials up to 1,000 lbs. (453.6 kg), contingent on equipment configuration. V-Pans are designed to handle a roll of up to 30” (76 cm) wide by 30” (76 cm) in diameter. The stainless-steel rotating V-Pan is designed to be low profile and, when fully lowered, sit flush against a standard 40” x 48” pallet. Roll Manipulators with a V-Pan are designed to lift a wide range of roll weights and diameters from the floor or a pallet; then transport and place those horizontal rolls onto converting machines. Available with either a single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift. Roll-Haulers are designed to work in tightly confined production areas and are completely counterbalanced, requiring no outriggers for stability, and are ideal for traveling over long distances. Roll-Haulers are designed to fit through a standard 30” (76 cm) wide x 84” (213 cm) high doorway. The large industrial battery provides enough power to run continuously for up to 16 hours on a single charge. Available with either a single- or two-stage mast for lift heights from 48″ to 96″ (122 cm to 243.8 cm) of vertical lift.

Brochure
Request a Quote
sddefault-39-e1763678199456

Uncrating your equipment – Drum-Hauler® & Roll-Hauler – Easy Lift Equipment

video-union
Specifications
Additional Options
  • Powered Roll Transporter with Powered: travel & lift
  • Standard Capacity: 1,000 lbs. (453.6 kg), contingent on equipment configuration
  • Single- or two-stage mast for lift heights from 48″ to 108″ (122 cm to 274.3 cm) of lift
  • Battery: Deka 12-D85-9 Wet Cell, 24 Volt, 340 A.H. industrial battery with Anderson 175SB connector
  • Key on/off switch & gauge type Battery Discharger Indicator with hour-meter
  • Electronic speed controller is equipped with three travel profiles to allow for factory customization
    of travel parameters. Maximum travel speed can be preset for speeds between 0.93 and 2.8 mph.
    Unless otherwise specified at time of order, maximum travel speed will be factory preset at 1.8 mph
    in the forward and reverse direction.
  • Thumb control forward and reverse switch with creep speed provided by a snail button, reversing safety switch with handle lockout positions and horn button located in the tiller handle
  • Load Wheels: (2) tandem polyurethane 3” dia. x 4” wide
  • Drive Wheel: (1) polyurethane or rubber 9” diameter x 2.75” wide
  • PVC Foot Guard on rear of Roll-Hauler behind drive tire
  • Stability Caster: (2) polyurethane 4” diameter x 1” wide
  • Finish: Safety orange powder coating
  • Base Dimensions: 28.5” (72 cm) overall drive frame width with a 46.5” (118.1 cm) drive frame length
  • 1-year warranty, 2-year warranty on drive motor, 5-year warranty on wet cell batteries
  • Made in USA

Increase weight capacity over 1,000 lbs. (453.6 kg) based on equipment configuration

01-RH-with-reinforced-mast

Battery Roll out tray with conveyor and Stand for 3-shift operations.  The battery stand is designed to hold one additional battery and provide the ability to quickly change a low powered battery with a fully charged one. This prevents downtime and increases productivity. An extension cable is also provided with the battery stand to assist in the battery changing process.

03-Battery-Stand-and-Battery-Roll-out-Tray-on-RH

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid, and Stainless-Steel hardware.





02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components).

02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

Non-Intrinsically Safe Scale System: Rice Lake 680 or Doran 7000XLM Indicators



01-Rice-Lake-680-on-RH-1

Intrinsically Safe Scale System: Rice Lake 882IS or Mettler-Toledo 256x Indicators

FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4

03-RH-with-Mettler-Toledo-256x-scale-1

Intertek approved “EE” rating

01-RH-with-EE-Rating-Closeup-1

X-Groove siped polyurethane drive wheel





01-X-Groove-siped-polyurethane-drive-wheel-1

Enclosed drive controller to provide improved protection from water damage

02-Enclosed-Drive-Controller-1

Deka 12-D85-7 IST3603, 24 volt, 225 A.H. Industrial Wet Cell Battery with Chargemate on-board Charger in lieu of Deka 12-D85-9 Wet Cell battery (requires extended lead time)



01-12-D85-7-Wet-Cell-with-Chargemate-min

Deka 12-G75-9, 24 volt, 300 A.H. Industrial Gel Cell Battery in lieu of Deka 12-D85-9 Wet Cell battery (requires extended lead time)



02-Deka-12-D85-9-battery-min

EnerSys 24-12NXS-137-2 24v, 274 A.H. NexSys Pure TPPL Maintenance Free Ind. Battery w/ on-board Charger in lieu of Deka 12-D85-9 Wet Cell battery (requires extended lead time)

03-NexSys-Pure-24-12NXS-137-2-Battery-min
