Eliminating workplace injuries and maximizing productivity in roll-handling operations requires engineered equipment built for safety and reliability. Easy Lift Equipment manufactures ergonomic roll handlers that replace manual lifting hazards with controlled, mechanical precision. Since 1982, we’ve partnered with companies across a broad range of industries to deliver custom-engineered solutions tailored to their specific operational needs.

Types of Roll Lift Equipment We Offer

Easy Lift Equipment designs and manufactures a complete lineup of roll handlers, built to order for each project’s roll materials, weights, and facility constraints. Our team can help you choose the most effective solution for your operational needs. Options range from simple manual transporters to heavy-duty self-propelled manipulators.

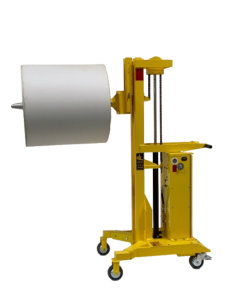

EasyLift EL and ER Roll Transporters are manual push-around units with a DC-powered lift designed to handle horizontal rolls. The EL Series roll transporters are available in various configurations with capacities up to 600 pounds (272.2 kg) and lift heights up to 60″ (152.4 cm) above floor level.   The heavier duty ER Roll Transporters are available with capacities up to 1000 lbs. (453.6 kg) and lift heights up to 144″ (365.8 cm) above floor level, contingent on equipment configuration.

High-quality Darcor® ergonomic casters reduce push and pull forces. Units include an ergonomic step-down foot floor lock with safety yellow powder coating.

Learn More

Self-propelled roll transporters feature powered travel, lift and steering for moving rolls over long distances without manual pushing.

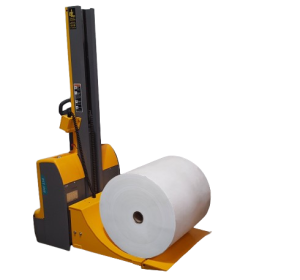

ERP Series roll movers offer up to 2,000 lbs. (907.2kg) capacity on a straddle leg or fork over base frame and are available with hydraulic roll lift shovels, roll forks, roll support arms or roll posts.  The RH Series features a counterbalanced base frame when reach is essential and can also be equipped with rolls posts, v-pans, roll forks, or roll support arms up to a 1,000 lbs. (453.6 kg).  For larger rolls up to 4,000 lbs. (1,814.4 kg) or 6,000 lbs. (2,721.6 kg) the RH4000 & RH6000 offer the power to move heavy rolls with ease while providing cushioned roll support on rubberized roll forks.

Learn More

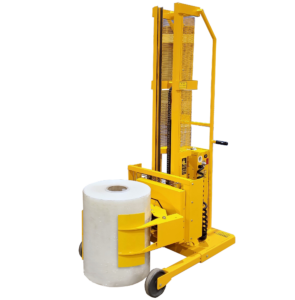

EasyLift manual propelled roll manipulators feature DC-powered lift, clamp and rotation with manual push travel. The ELDR Series narrow aisle roll manipulators are available with a standard capacity of 500 pounds (272.2 kg) and lift heights up to 60″ (152.4 cm) above floor level.   The heavier duty ER Roll handlers are available with a standard capacity of 800 lbs. (362.9kg) and lift heights up to 144″ (365.8 cm) above floor level, contingent on equipment configuration.

Multiple clamp types and sizes are available to match your application, with clamping ranges from 5-13″ on the smallest unit to 31-48″ on the largest, and several sizes available in between to match your project’s requirements.

Units feature high-quality Darcor® casters, an ergonomic step-down foot floor lock and safety orange powder coating for durability.

Learn More

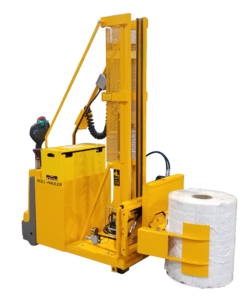

Roll-Haulers are self-propelled roll clamps designed for safe, ergonomic handling of roll materials and cylinders. Completely counterbalanced and requiring no outriggers for stability, these units work effectively in confined production areas and are ideal for traveling over long distances.

Roll-Haulers have a standard capacity of 800 lbs. (362.9kg) and lift heights up to 144″ (365.8 cm) above floor level, contingent on equipment configuration.

Multiple clamp types and sizes are available to match your application, with clamping ranges from 5-13″ on the smallest unit to 31-48″ on the largest, and several sizes available in between to match your project’s requirements.

Most models fit through standard 30″ (76 cm) wide by 84″ (213cm) high doorways. The industrial battery provides up to 16 hours of continuous operation on a single charge.

Learn More

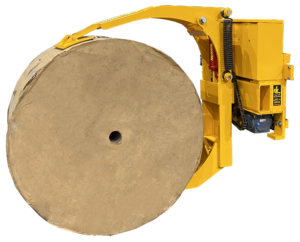

Our self-contained lift truck attachments can be quickly mounted or unmounted onto any lift truck with an ITA Class II Carriage of sufficient capacity. These attachments offer a flexible solution for large roll handling applications without a dedicated lift truck. Self-contained power pack with onboard pump, batteries and charger eliminates the need for hydraulic or electrical connections to the lift truck.

RCR20-40 & RCR30-50 attachments have a 2000 lbs. (907.2 kg) capacity and clamping diameter range of either 20-40″ or 30-50″.

The clamp rotates 360° in either direction and handles rolls in vertical or horizontal orientations.

Learn More

CONTACT US

Custom Roll Lifting Equipment Engineered for Your Facility

At Easy Lift Equipment, we understand that no two facilities have identical roll handling requirements. Every unit we manufacture is custom-engineered in our Delaware facility. Each roll handler is load tested before shipping to ensure it meets our quality control standards and arrives ready to assist your employees get the job done safely and efficiently.

Whether you’re looking for paper roll-handling equipment or an industrial roll lifter for high-volume applications, our team can help you select the right equipment for your needs. Call us at 1-800-233-1800 in North America or +1-302-737-7000 internationally to discuss your operational requirements. You can also contact us online to request a quote.
