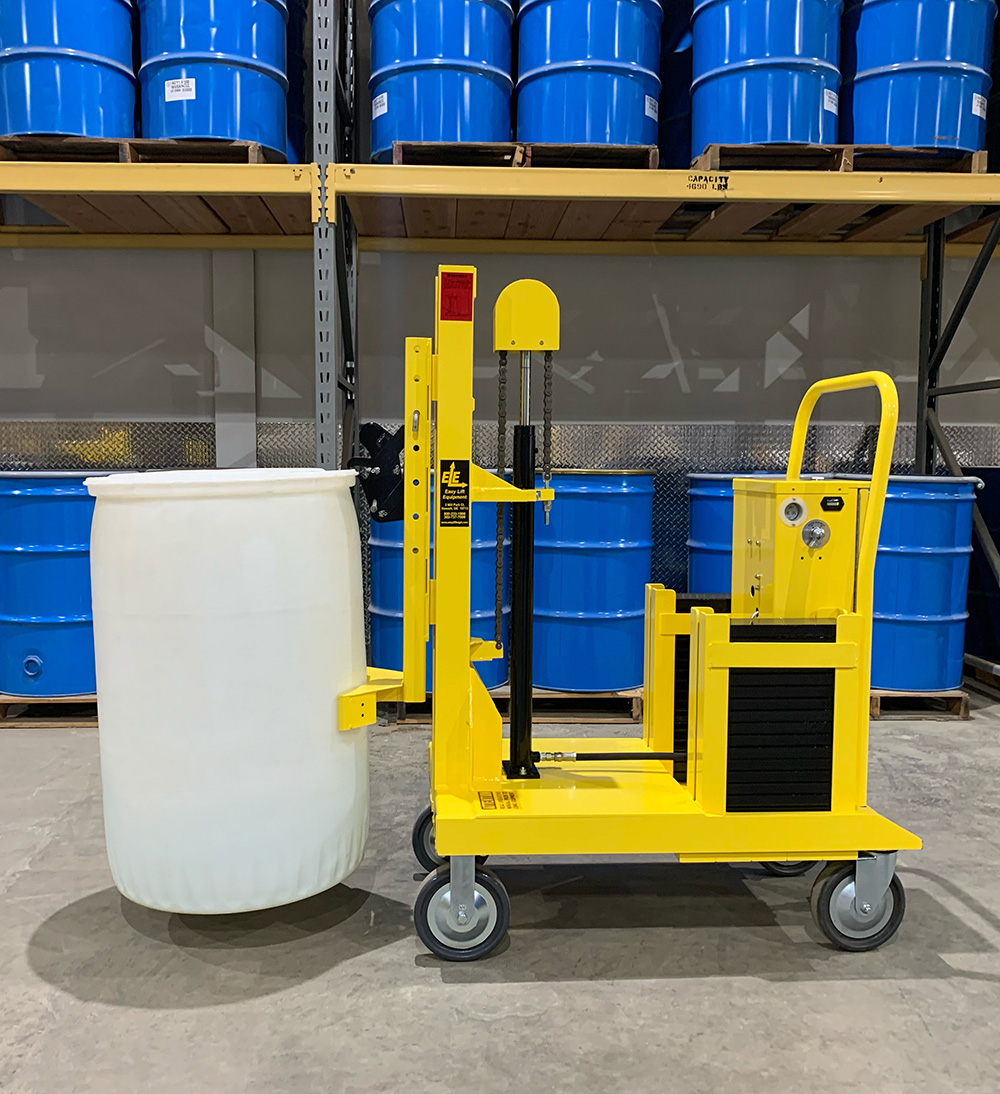

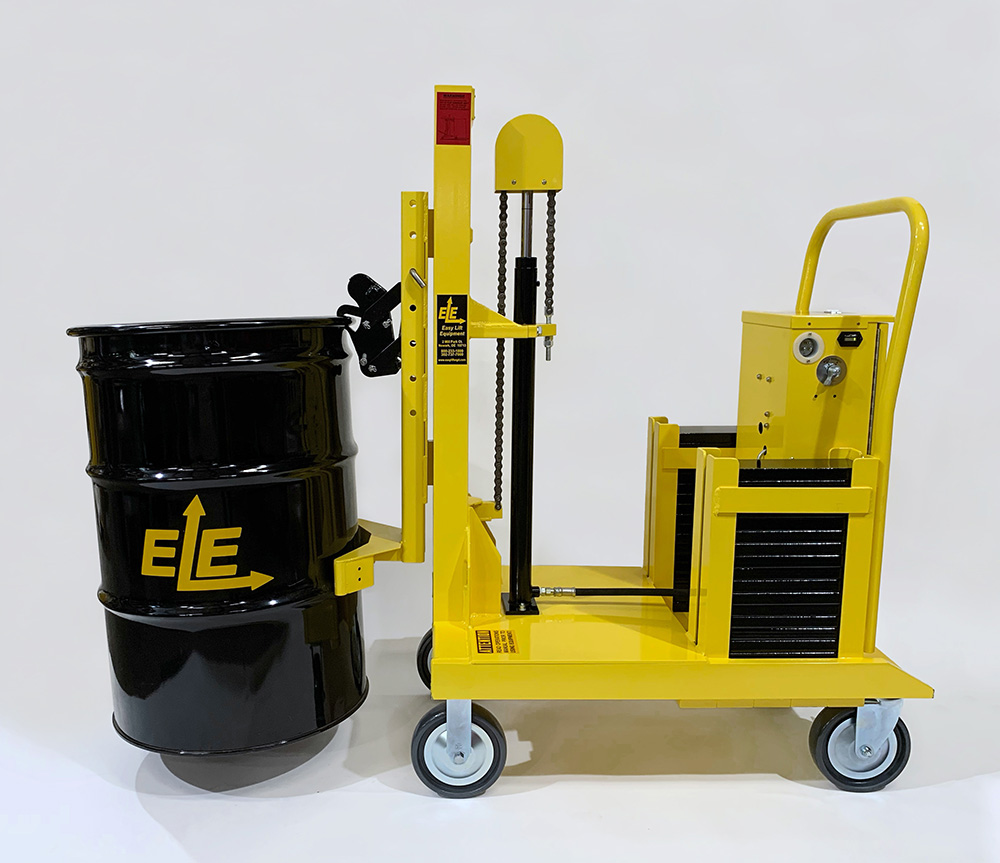

EasyLift Counterbalanced Drum Transporter (CB) with DC Powered Lift

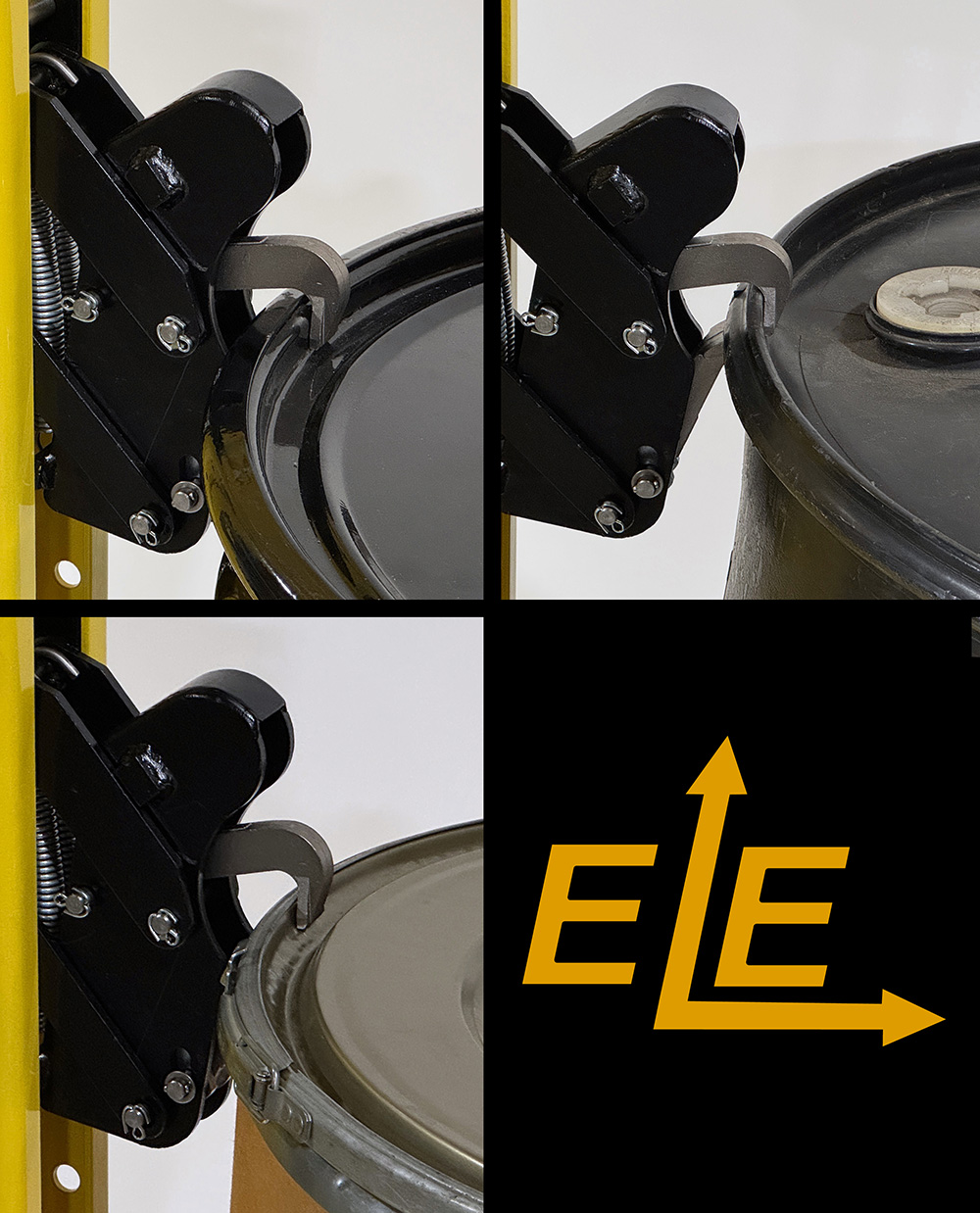

EG1 Single clamping mechanism with spark resistant clamp for handling a steel or plastic chimed drum in lieu of EG1 (all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle)

EG2L Double clamping mechanism with spark resistant clamp for handling a steel, plastic, or fiber chimed drum (minimum 17” diameter) in lieu of EG1 (designed for working with an open top drum or plastic/fiber drum, all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle). Providing approximately 3.25” (8.3 cm) of reach forward of the front casters.

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid, and EG1 Single clamping mechanism with spark resistant clamp

Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

Non-Intrinsically Safe Scale System: Doran 7000XL Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

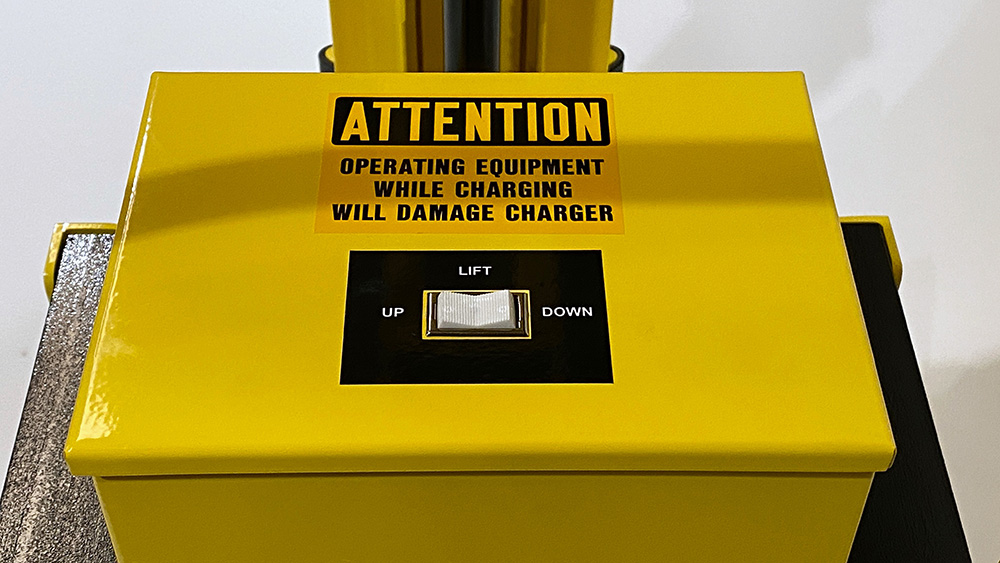

DC Cabinet with exchangeable batteries for long run application (includes quick disconnects, two sets of 12-volt AGM batteries and external charger in lieu of internal charger) requires DC powered lift option

DC Cabinet with exchangeable batteries & charging stand for long run applications (includes quick disconnects, two sets of 12-volt AGM batteries, and a wall mounted charging stand with an external charger in lieu of internal charger) requires DC powered lift option

Additional set of exchangeable 12-volt AGM batteries with quick disconnects requires DC powered lift & DC Cabinet with exchangeable batteries option

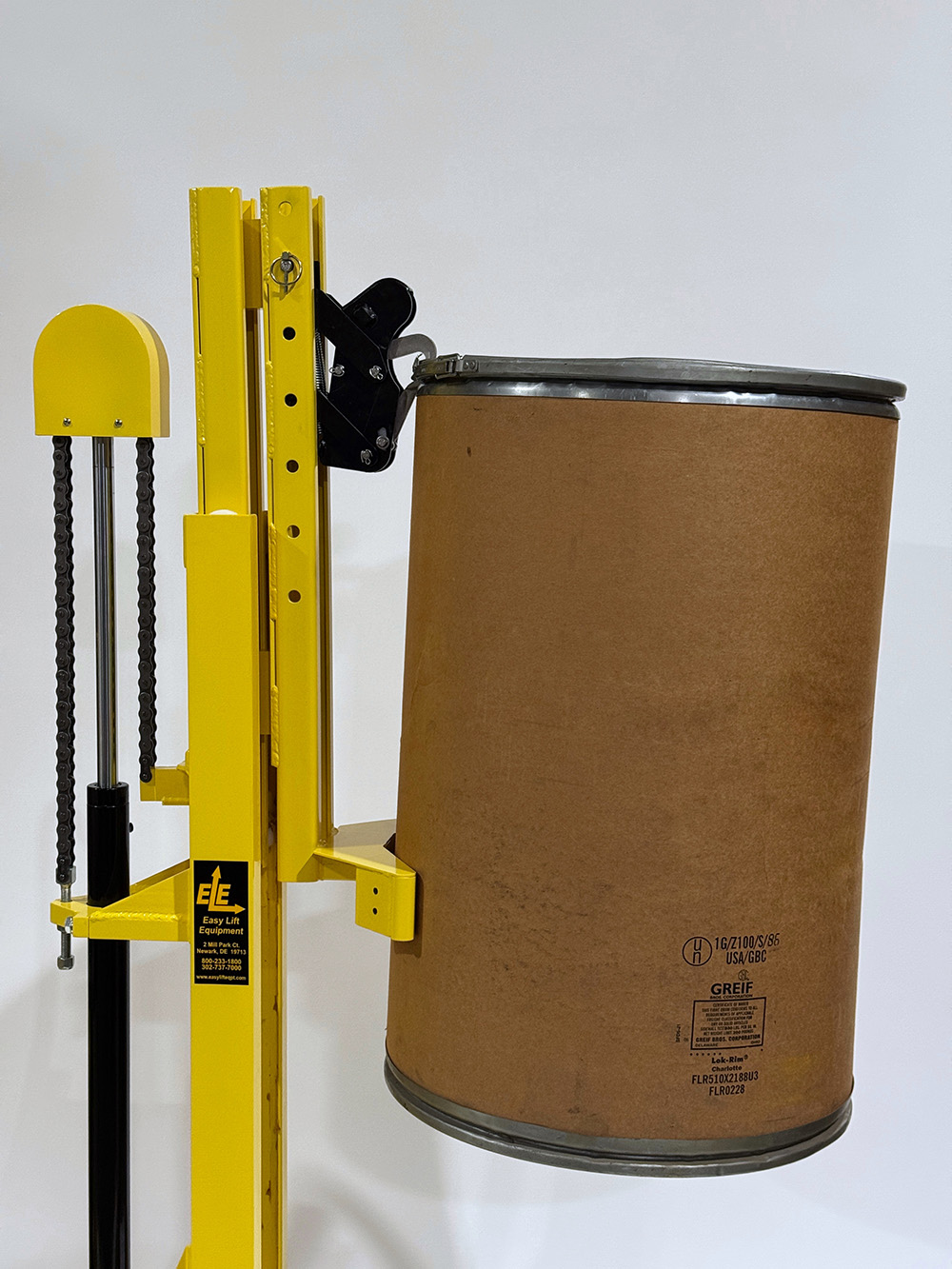

Counterbalance Drum Transporters offer increased lift heights of 40” (101.6 cm) or 60” (152.4 cm) above floor level for double or triple stacking drums, or the ability to pick and place drums to and from shelves.
(*Max capacity of 600 lbs. (270kg) with increased lift height of 60” (152.4cm), 40” lift has a 74.75” (189.9cm) lowered height, 60” lift has a 92.75” (235.6cm) lowered height)
