EasyLift Counterbalanced Drum Transporter (CB) with Air Powered Lift

Back to EasyLift Manual Propelled Drum Transporters
flexible-hero-image

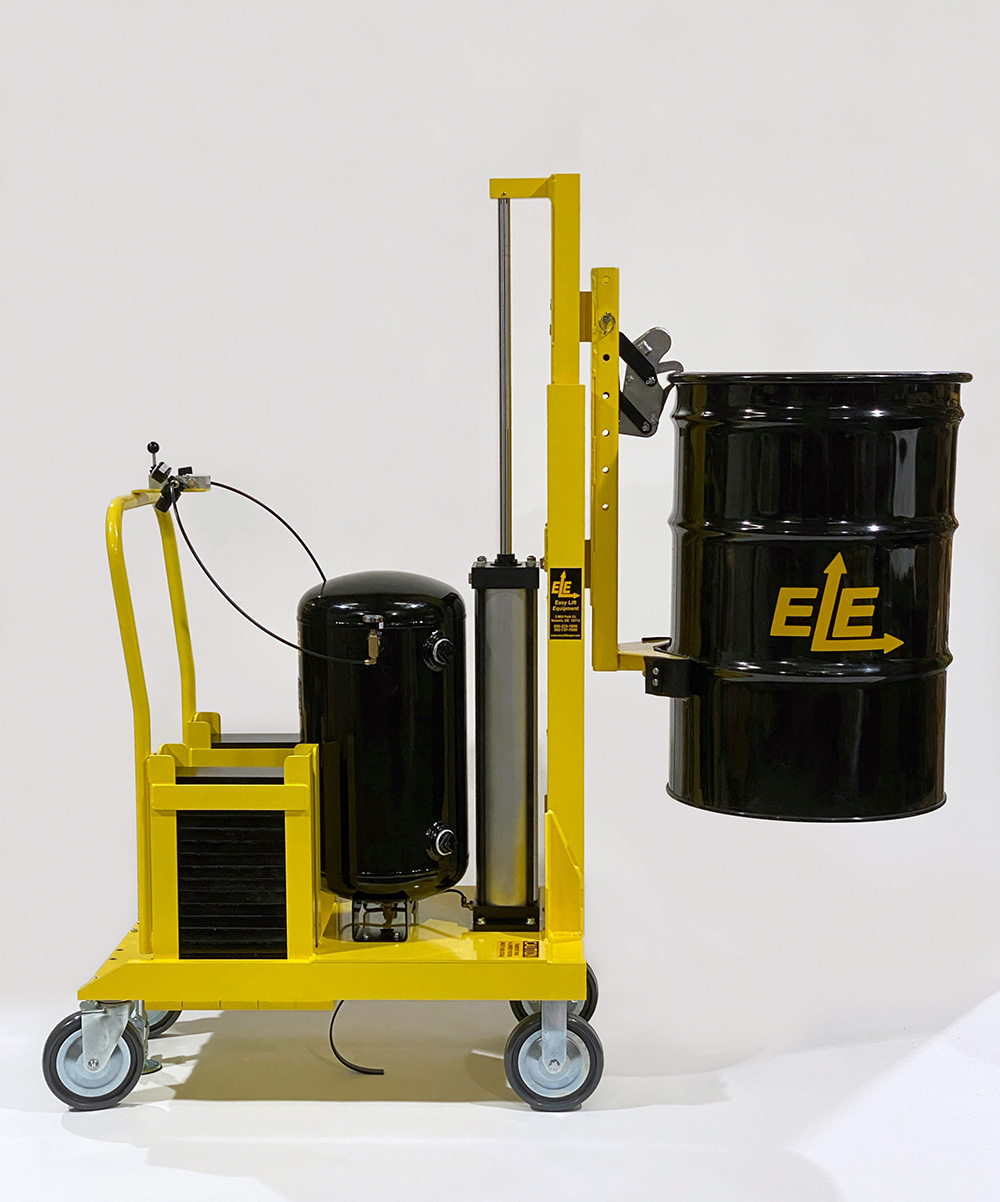

01-Ergo-CB-Air-with-steel-drum-raised

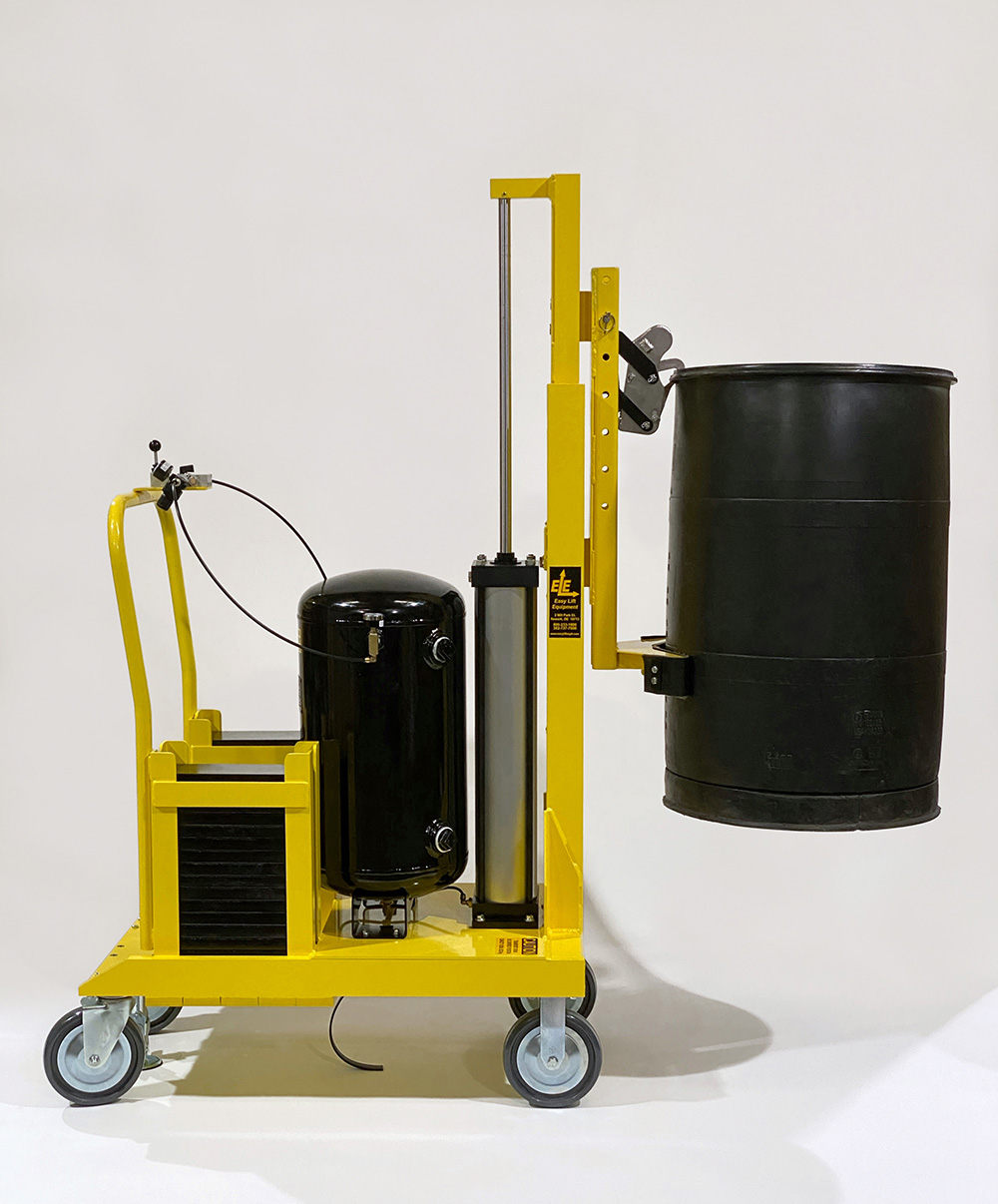

02-Ergo-CB-Air-with-plastic-drum-raised

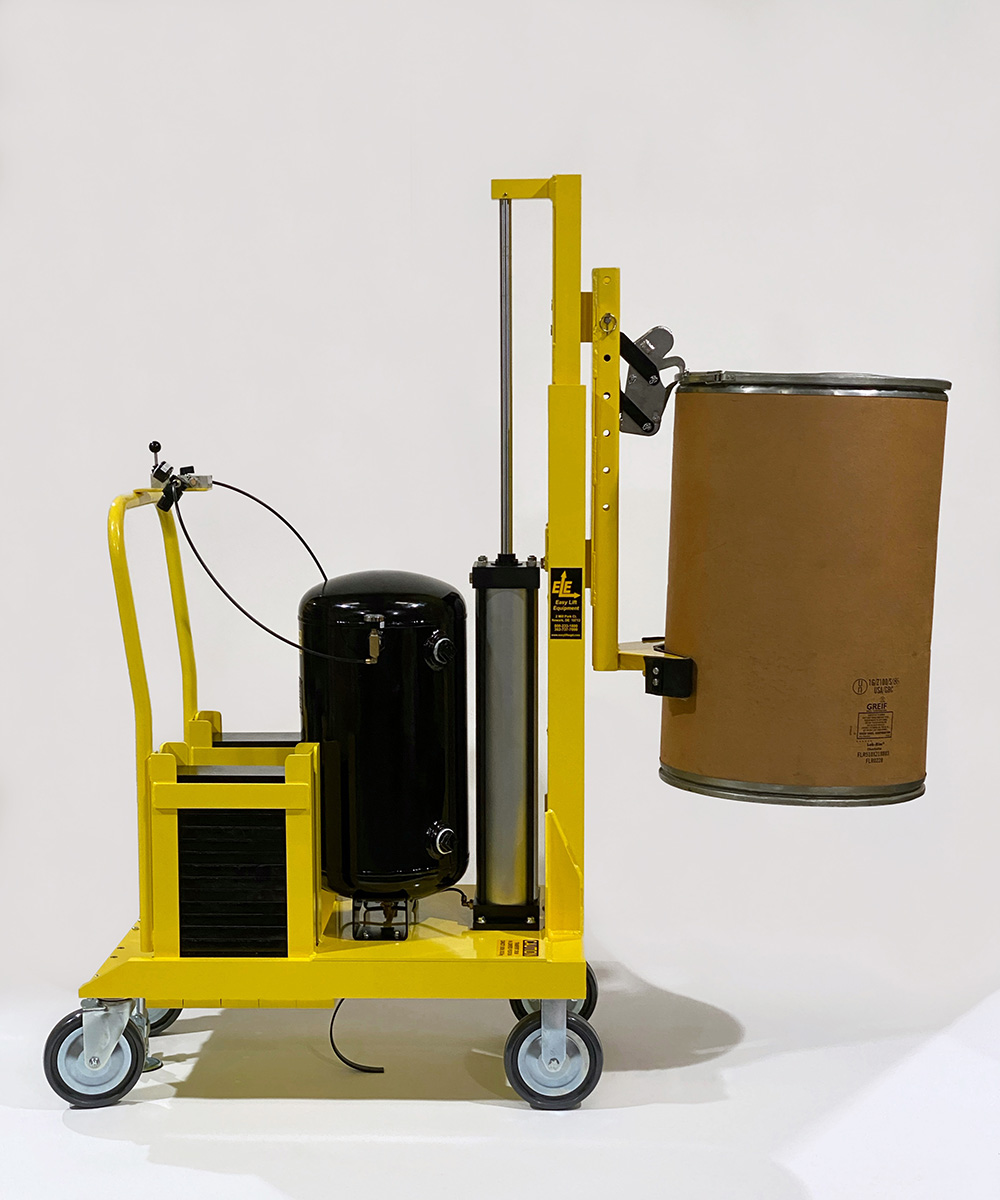

03-Ergo-CB-Air-with-fiber-drum-raised

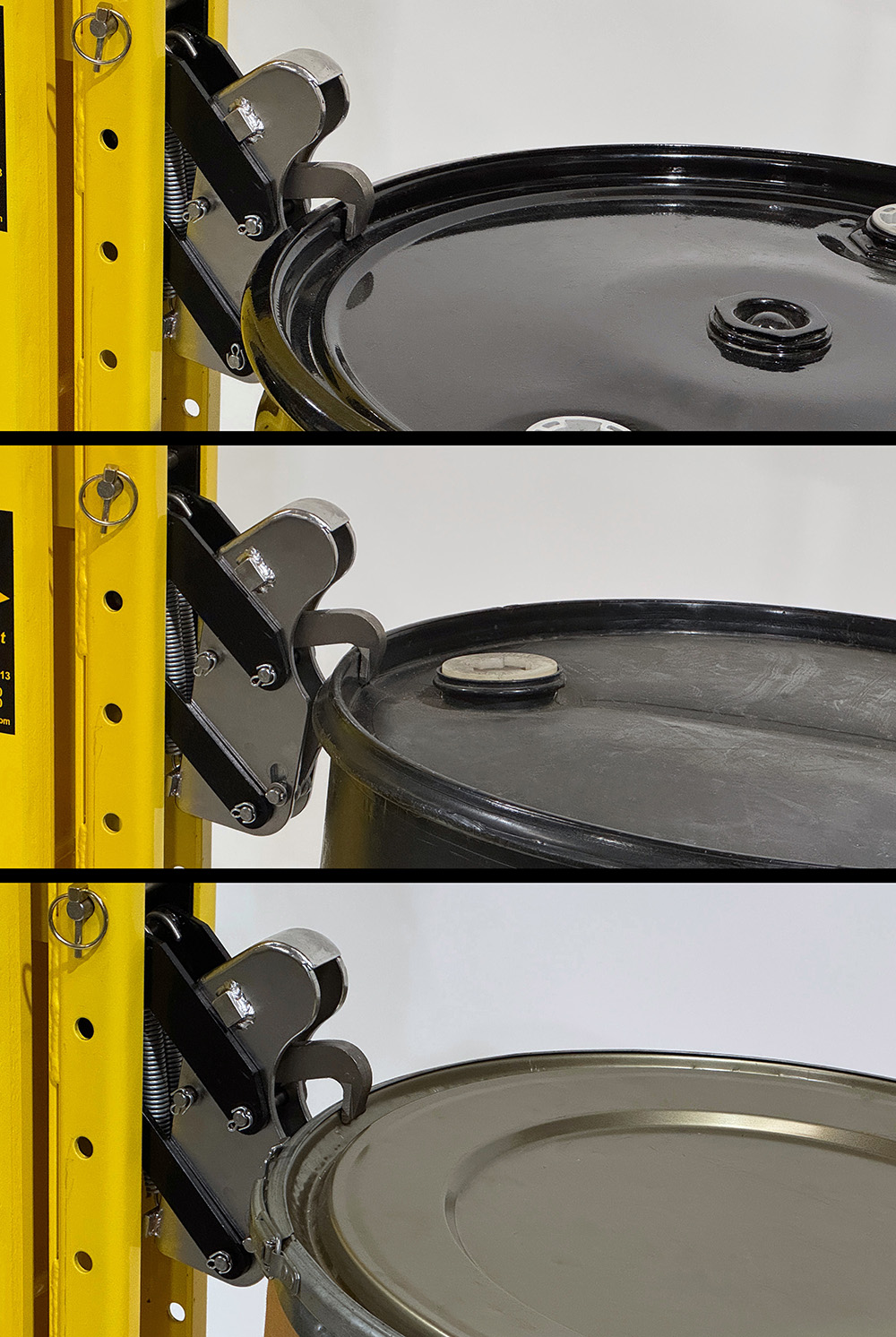

04-EL800CBASRC-with-EG1-on-steel-plastic-and-fiber-drums

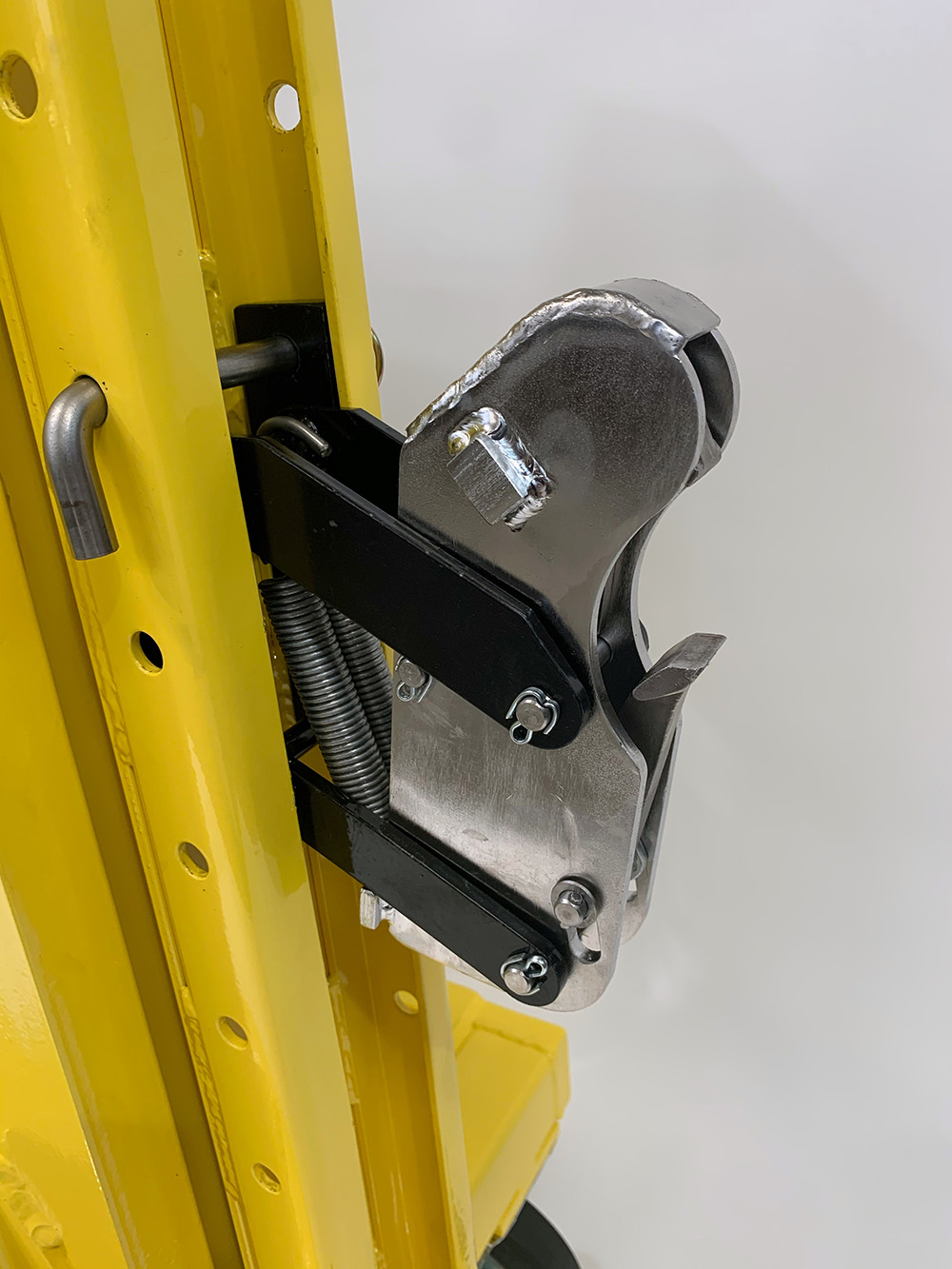

05-Ergo-CB-Air-with-EG1SRC-closeup

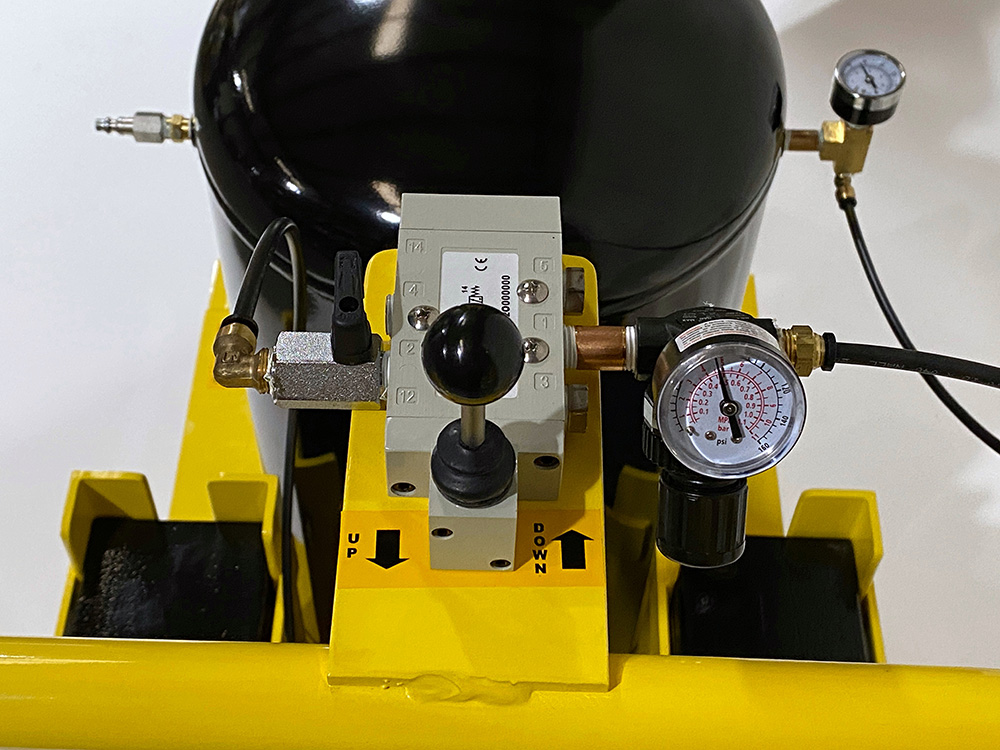

06-Ergo-CB-Air-Controls

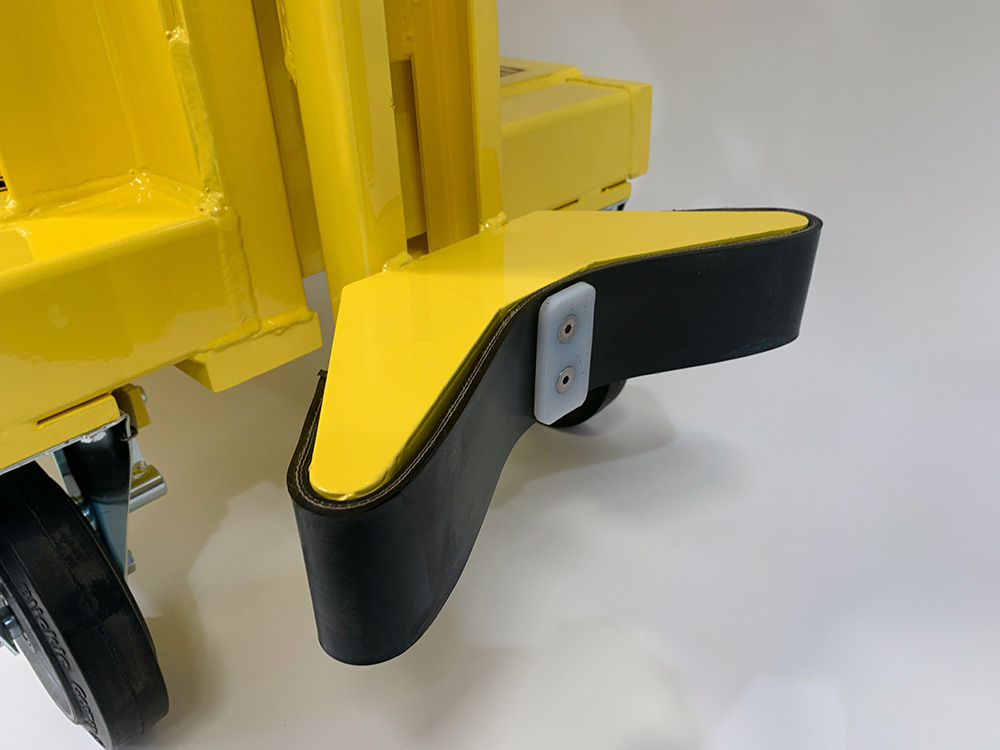

07-Ergo-CB-Air-Belt-Cradle
01-Ergo-CB-Air-with-steel-drum-raised
02-Ergo-CB-Air-with-plastic-drum-raised
03-Ergo-CB-Air-with-fiber-drum-raised
04-EL800CBASRC-with-EG1-on-steel-plastic-and-fiber-drums
05-Ergo-CB-Air-with-EG1SRC-closeup
06-Ergo-CB-Air-Controls
07-Ergo-CB-Air-Belt-Cradle

EasyLift Counterbalance Drum Transporter

with Air Powered Lift

The EasyLift Counterbalance Drum Transporter are designed to eliminate the legs forward of the clamp and compensate for the lack of legs with counterweights, making this model ideal for picking or placing drums in cabinets, under air piston pumps, onto scales, or pallets where side access is necessary. Providing approximately 4.25” (10.8 cm) of reach forward of the front casters with the EG1 Single Clamping Mechanism can safely and easily pick up a steel, poly, or fiber chimed drum. Counterbalance Drum Transporters with pneumatic lift are ideal for high-volume drum handling in areas where DC powered equipment is not permitted. These models are provided with an air tank that can be filled in less than a minute, providing roughly two dozen lifts per charge of the air tank. Lift and lower functions are controlled by using a simple joystick. All pneumatic lift models include a spark resistant clamping mechanism and anti-static grounding components. Pneumatic lift models are ideal for use in food and pharmaceutical applications as they contain no hydraulic fluids and are virtually maintenance-free.

Videos Brochure Manual Diagram
Request A Quote
EasyLift-Counterbalanced-Drum-Transporter-with-Pneumatic-Air-Powered-Lift-Easy-Lift-Equipment-0-1-screenshot

EasyLift Counterbalanced Drum Transporter with Pneumatic Air Powered Lift – Easy Lift Equipment

video-union
Specifications
Additional Options
Videos
  • Manual propelled counterbalance drum transporter
  • Single stage mast provides 20” (50.8cm) vertical drum lift height
  • Pneumatic Lift with air tank, if recharged at 120 psi, a 600 lb. drum can be lifted 8” then lowered approximately 20 times per charge. The air tank is provided with a male end quick disconnect. Customer must supply a female quick-disconnect on their airline. Drum weights, available air pressure, and the distance the drum is elevated will vary the number of lifts provided by the air tank.
  • Capacity available from 400 to 800 lbs. (181 to 363 kgs) contingent on total weights used
  • Includes EG1 single clamping mechanism with stainless steel spark resistant clamp for handling a steel, fiber, or plastic chimed drum. Also includes an anti-static grounding strap and a rubber belt attached to drum cradle to rest against the lower side of the drum.
  • Darcor® ergonomic non-marking casters 8” x 2”: (2) swivel, (2) rigid
  • Ergonomic step-down foot floor lock
  • Finish: Safety yellow powder coating
  • 1-year warranty
  • Made in USA

Easy Lift Equipment’s pneumatic and air-powered models are built with anti-static and non-sparking components. These units have not been submitted for third-party certification and contain no electrical components, except for the optional scale system, which carries its own independent approval.

EG2L Double clamping mechanism with spark resistant clamp for handling a steel, plastic, or fiber chimed drum (minimum 17” diameter) in lieu of EG1SRC (designed for working with an open top drum or plastic/fiber drum, all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle). Providing approximately 3.25” (8.3 cm) of reach forward of the front casters.

01-Ergo-CB-Air-EG2LDCMSRC-with-various-drums

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid, and EG1 Single clamping mechanism with spark resistant clamp

01-Ergo-CB-Air-with-FDA-Compliant-Powder-Coating

Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

02-Ergo-CB-Air-with-Full-304-Stainless-Steel-Construction

Non-Intrinsically Safe Scale System: Doran 7000XL Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

01-Rice-Lake-482-Non-Intrinsically-Safe-Scale

Intrinsically Safe Scale System: Rice Lake 882IS Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, external battery, external charger, mounting and calibration. FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4

02-Rice-Lake-882IS-Intrinsically-Safe-Scale

Counterbalance Drum Transporters offer increased lift heights of 40” (101.6 cm) or 60” (152.4 cm) above floor level for double or triple stacking drums, or the ability to pick and place drums to and from shelves.
(*Max capacity of 600 lbs. (270kg) with increased lift height of 60” (152.4cm), 40” lift has a 74.75” (189.9cm) lowered height, 60” lift has a 92.75” (235.6cm) lowered height)

01-Ergo-CB-Air-with-increased-lift-height
Uncrating-your-equipment-Drum-Transporter-Easy-Lift-Equipment-0-8-screenshot-min-1

Uncrating your equipment – Drum Transporter – Easy Lift Equipment

The following video is a step-by-step guide on how to uncrate your new Easy Lift Equipment Drum Transporter both safely and efficiently. This process will be the same for all styles of Easy Lift Equipment Drum Transporters. Including Economy, Ergonomic, Narrow Aisle and Counterbalance Models.
