Eagle-Grip® 1 Series Attachments

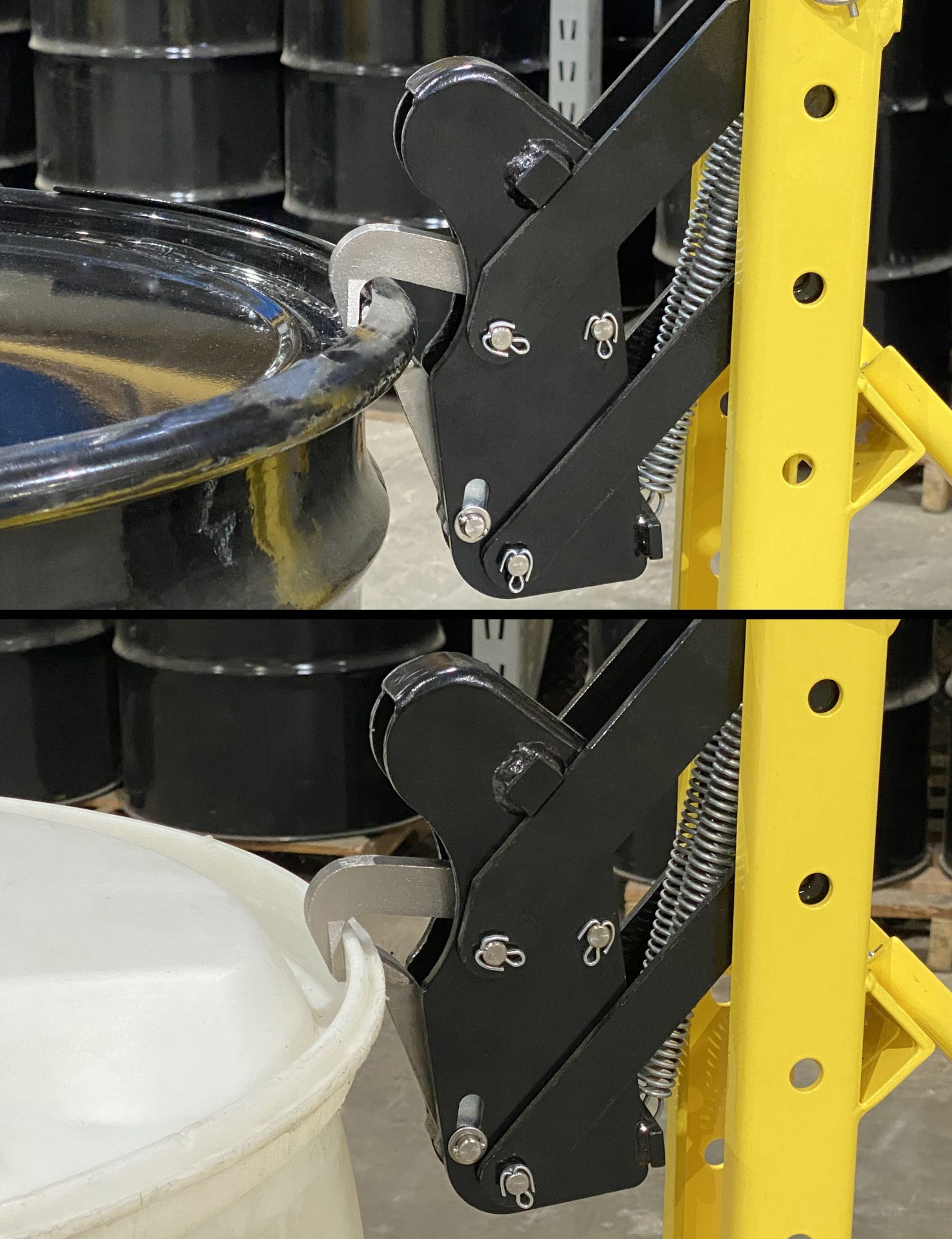

Eagle-Grip® 1 Series Light-Duty / Low Volume fork mount attachments utilize an Eagle-Grip 1 single automatic clamping mechanism designed for handling a steel, or plastic drum(s). Eagle-Grip 1 Series attachments are capable of handling one or two drums at a time, 750 lbs. (340 kg) capacity per drum, 1,500 lbs. (680 kg) total capacity for double drum handling models. Eagle-Grip 1 Series fork-mounted models provide easy installation by the operator within seconds either to or from a fork truck. Eagle-Grip 1 Series models come standard with 33” (83.8 cm) long, light duty fork pockets designed to sit on the front of standard forks with a safety chain to secure the attachment to forklift carriage. EG1’s are also available as a Class II carriage mount (CM), in lieu of fork mount.

Videos Brochure Manual
Request A Quote
Eagle-Grip®-1-Series-Lift-Truck-Attachment-Models-Easy-Lift-Equipment-0-10-screenshot-min

Eagle-Grip® 1 Series Lift Truck Attachment Models – Easy Lift Equipment

video-union
Specifications
Additional Options
Videos
  • Eagle-Grip® 1 Series Light-Duty / Low Volume fork mount attachment
  • Available at time of order to handle either one or two drum(s) at a time
  • 750 lbs. (340 kg) capacity per drum, 1,500 lbs. (680 kg) total capacity for double drum handling models

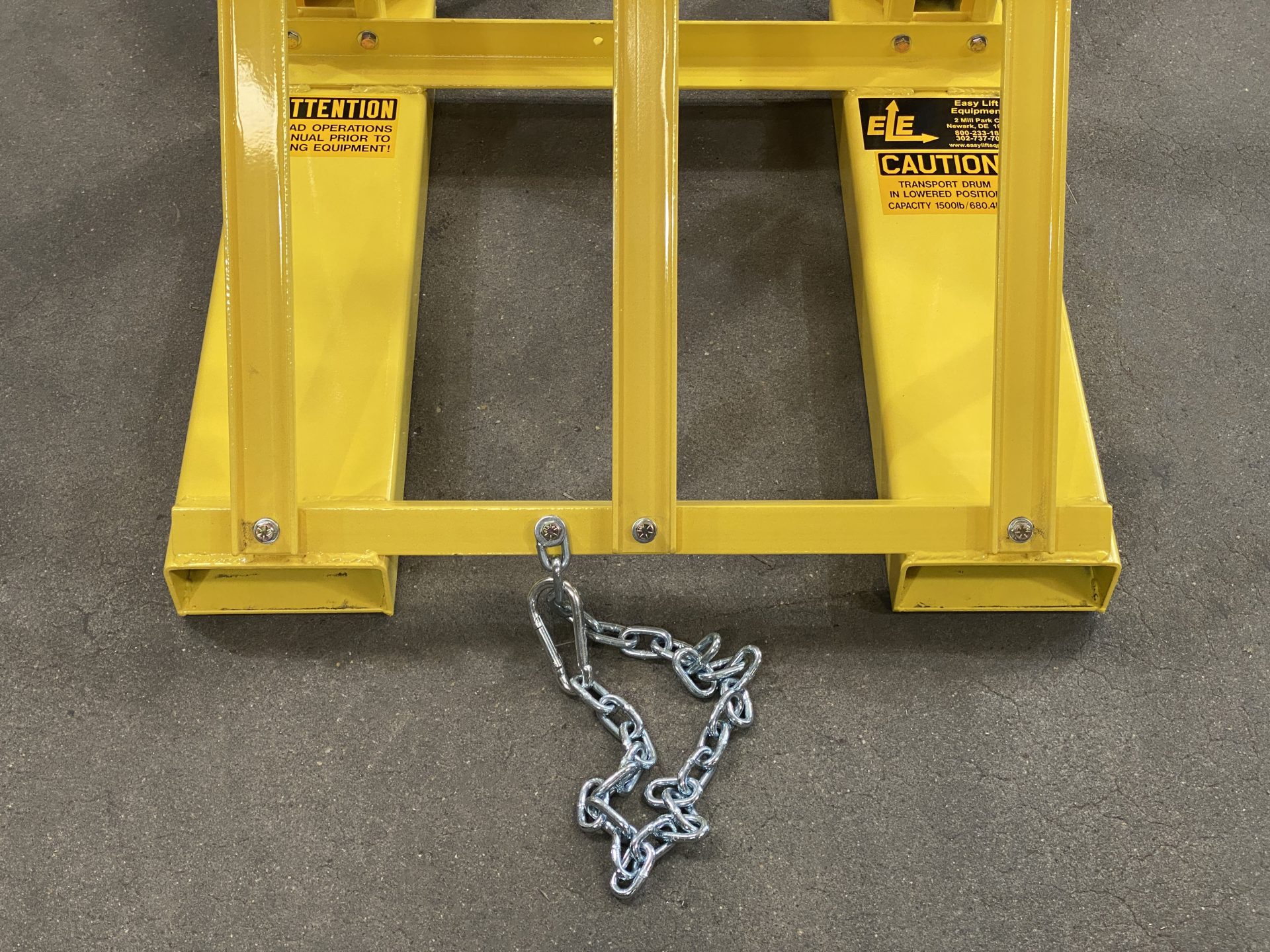

  • Light duty 33” (83.8 cm) long fork mount frame with safety chain to secure the attachment to forklift carriage
  • Easy installation by the operator within seconds either to or from a fork truck
  • Finish: Safety yellow powder coating
  • 1-year warranty
  • Made in USA

Rubber belt attached to drum cradle to prevent cosmetic damage to the drum

05-EG1SCM2-F-with-Rubber-Belt-min

EG1SRC Single clamping mechanism with spark resistant clamp (all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes a rubber belt attached to drum cradle)

03-EG1SCMSRC-F-steel-drum-min

Quick Claw Safety Restraint System (Requires 42” long forks) eliminates the need for operator to dismount from the lift truck to install the OSHA required safety chain.  Quick-Claw cam locks  automatically lock the attachment onto the lift truck forks when the attachment is lifted.  A safety chain is not required with the Quick-Claw option.

01-EG1SCM-FQC-on-floor-no-drum-min

Non-Intrinsically Safe Scale System: Doran 7000XLM Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

Intrinsically Safe Scale System: Rice Lake 882IS or Mettler-Toledo 256x Indicators for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.  FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4. (Not pictured)

EG1SCMSRC-F-S-with-steel-drum

EG1 Preventative Maintenance Kit

02-NO-PHOTO-IMAGE-COMING-SOON-1

“FDA” Compliant Metallic Gray Powder Coating



02-NO-PHOTO-IMAGE-COMING-SOON-1
