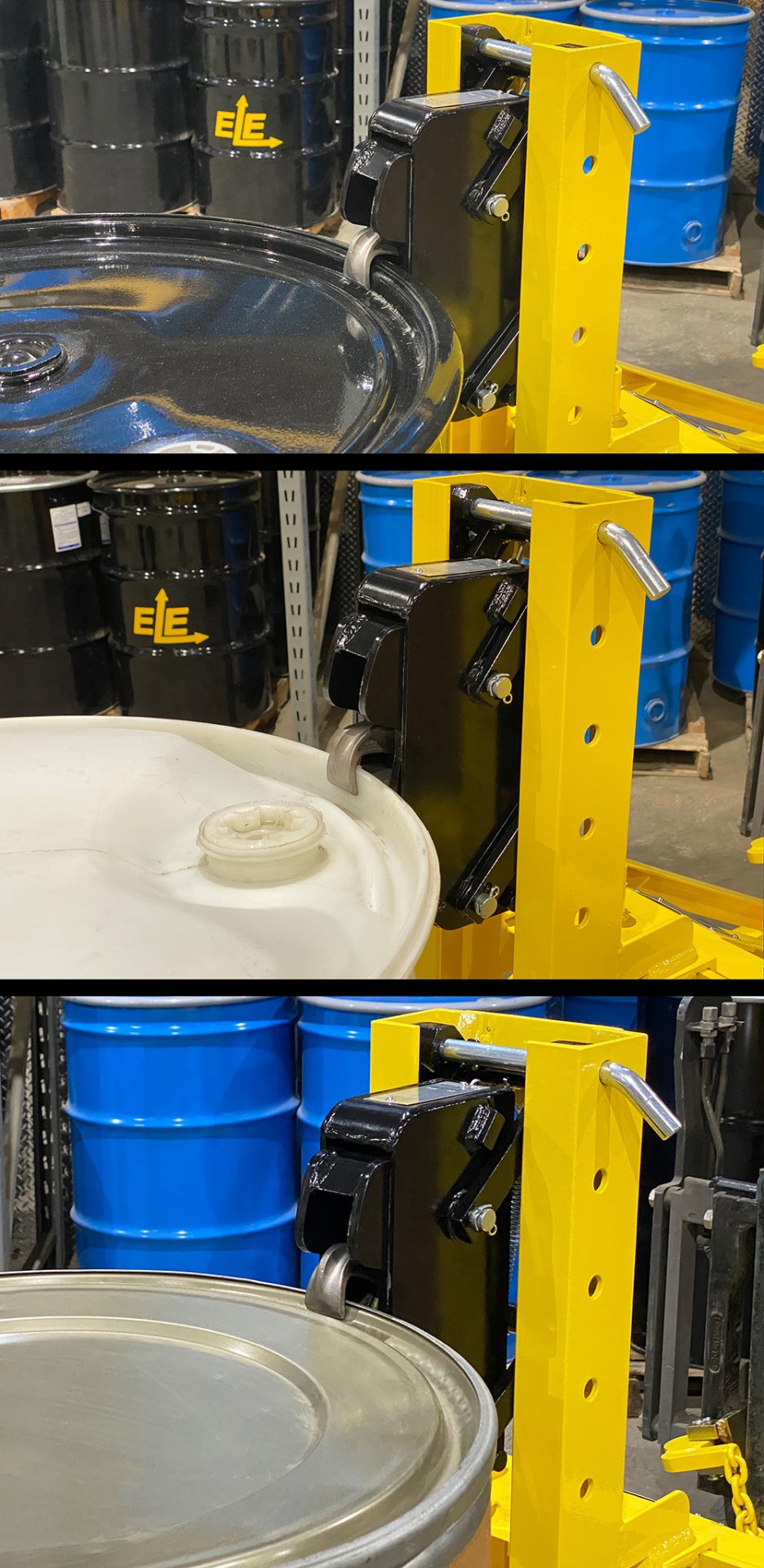

02-EG3SCM-F-with-steel-plastic-and-fiber-drum-closeup_resized

03-EG3SCM-F-on-lift-with-steel-drum_resized

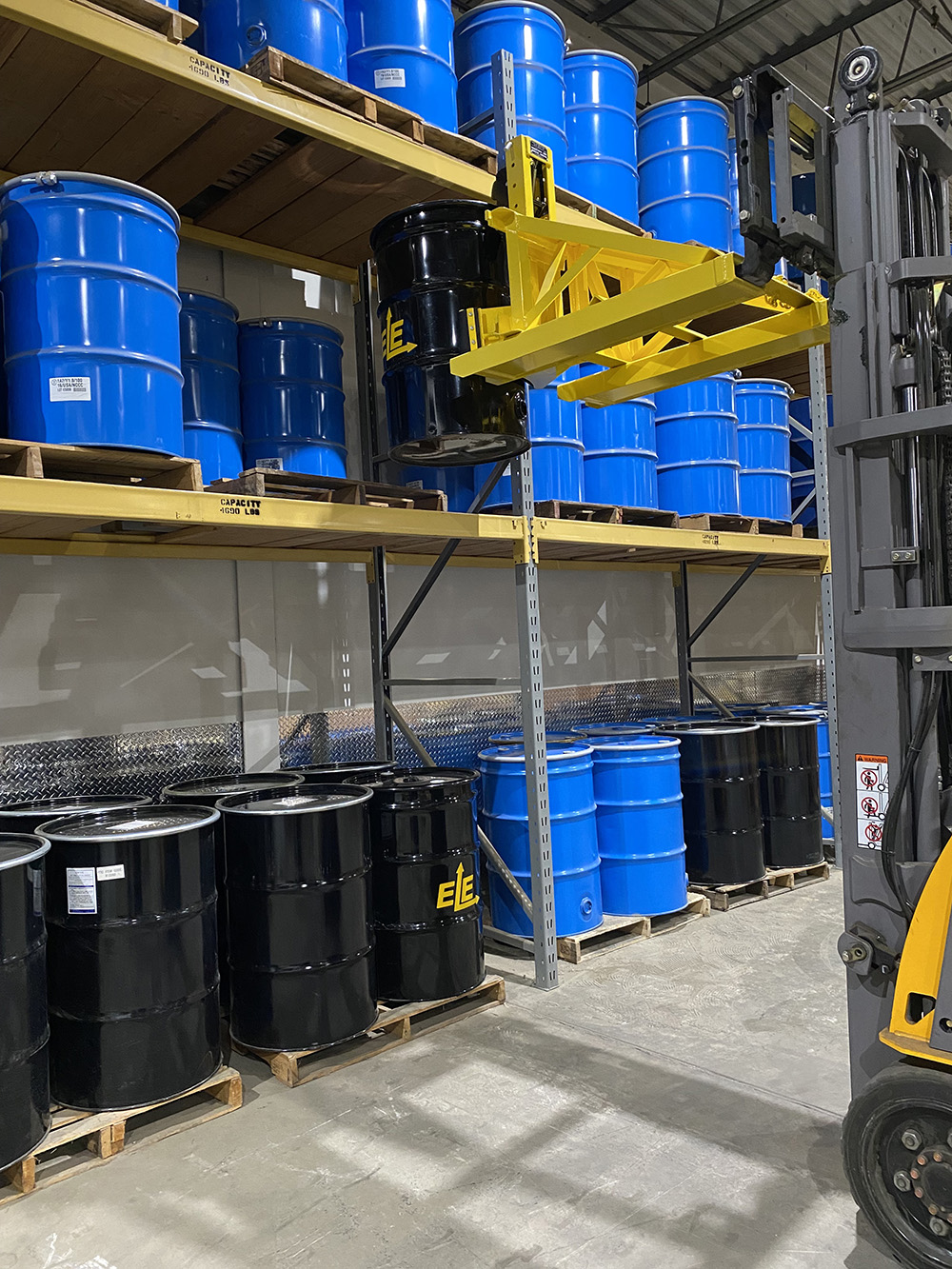

06-EG3SCM-F-raising-drum-into-rack_resized

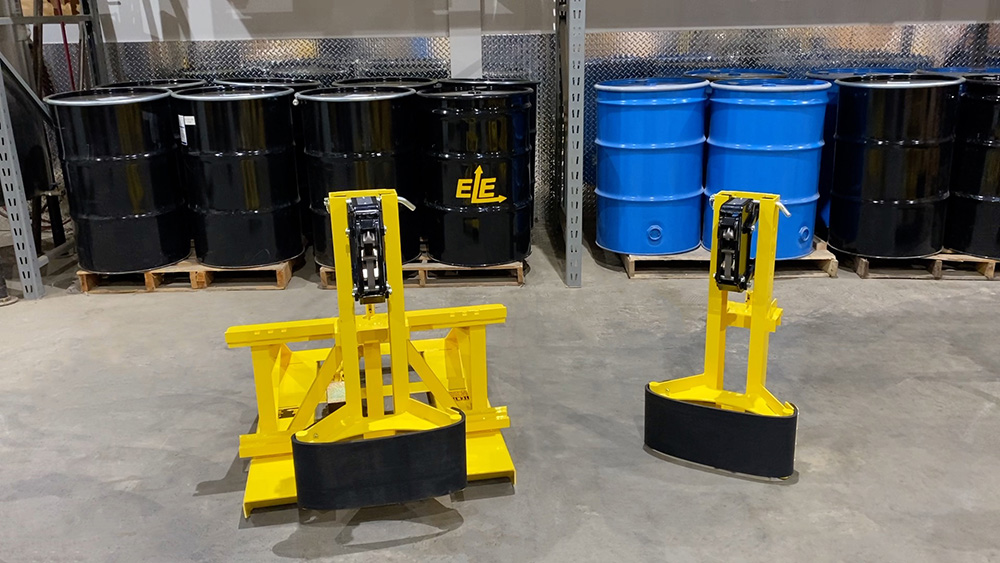

07-EG3SCM-F-on-floor-with-another-CM_resized

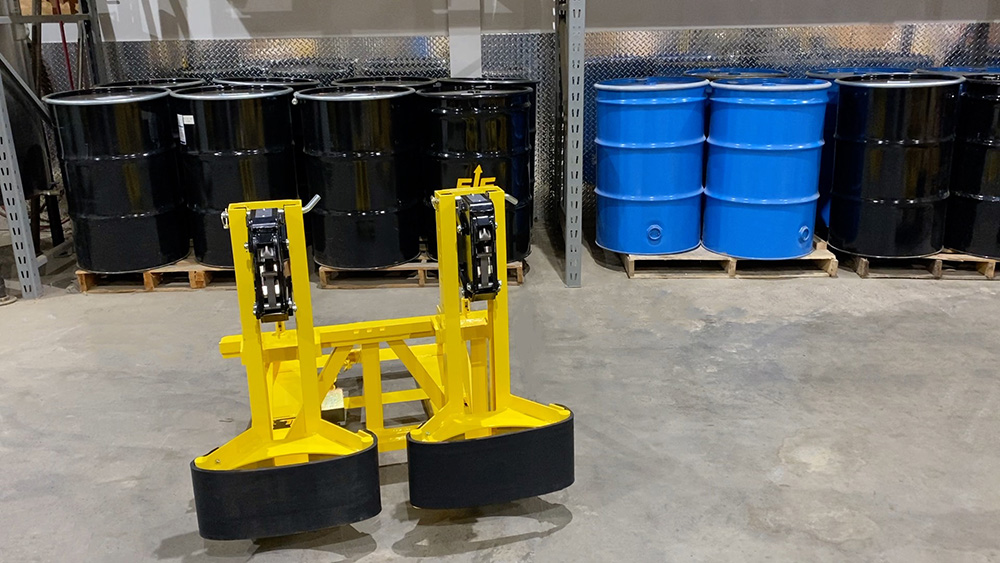

08-EG3SCM2-F-on-floor-with-2nd-CM-installed_resized

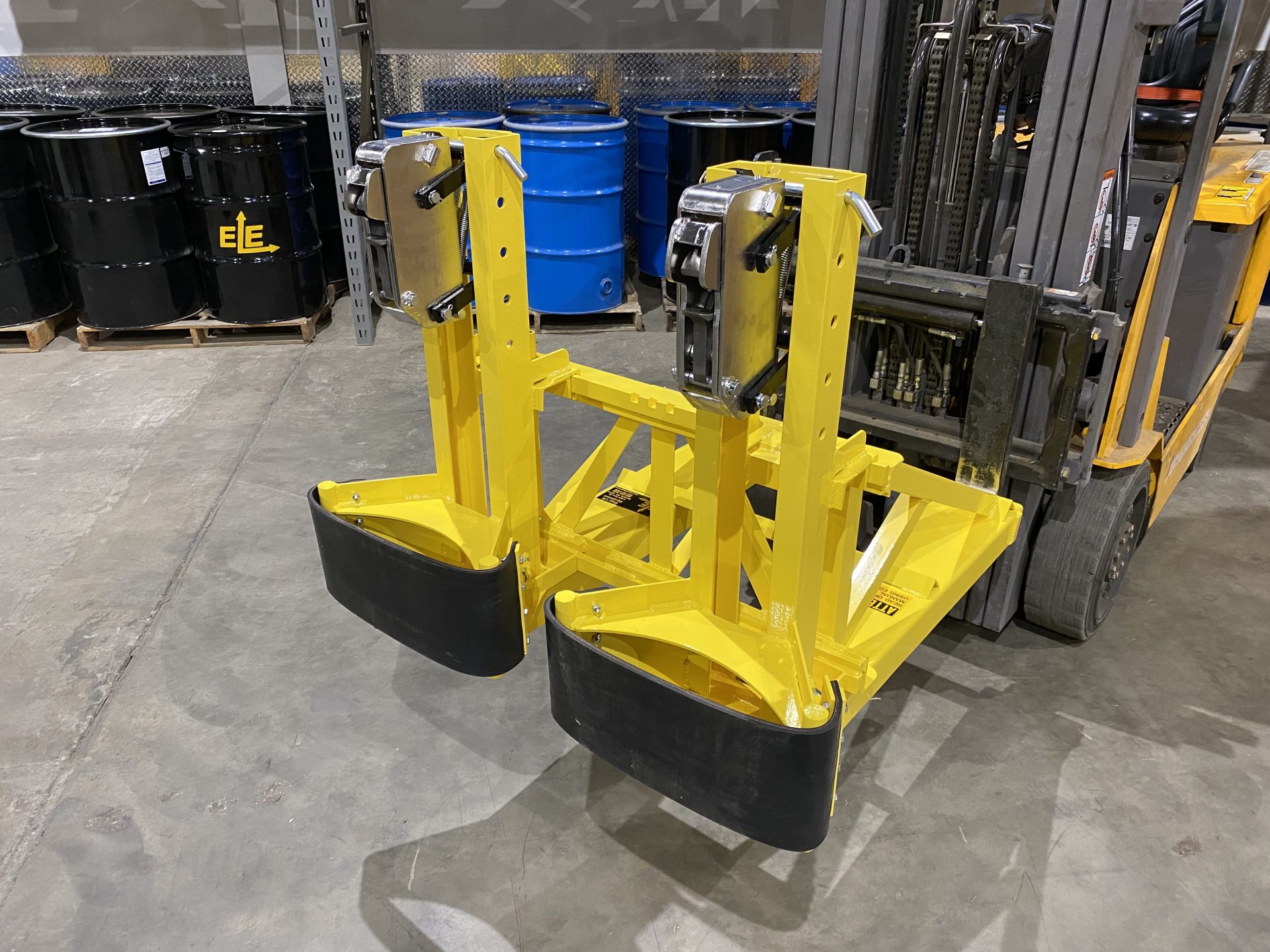

EG3SCMSRC2-F-without-drums

10-EG3SCM2-F-with-steel-plastic-and-fiber-drum-closeup_resized

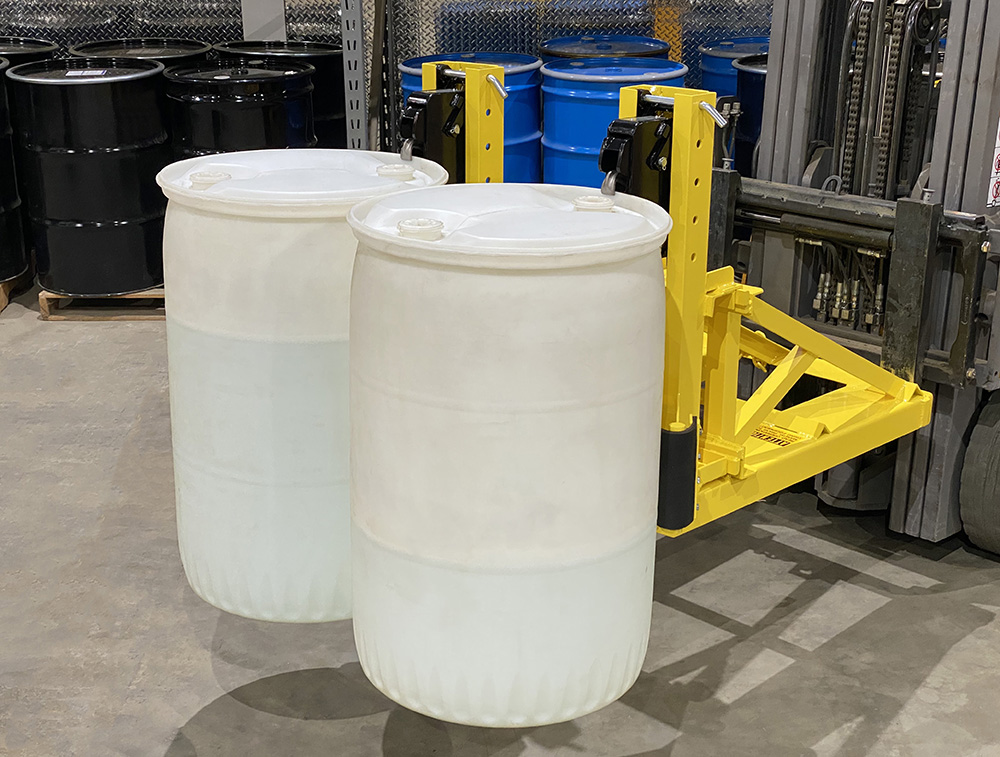

12-EG3SCM2-F-with-plastic-drums_resized

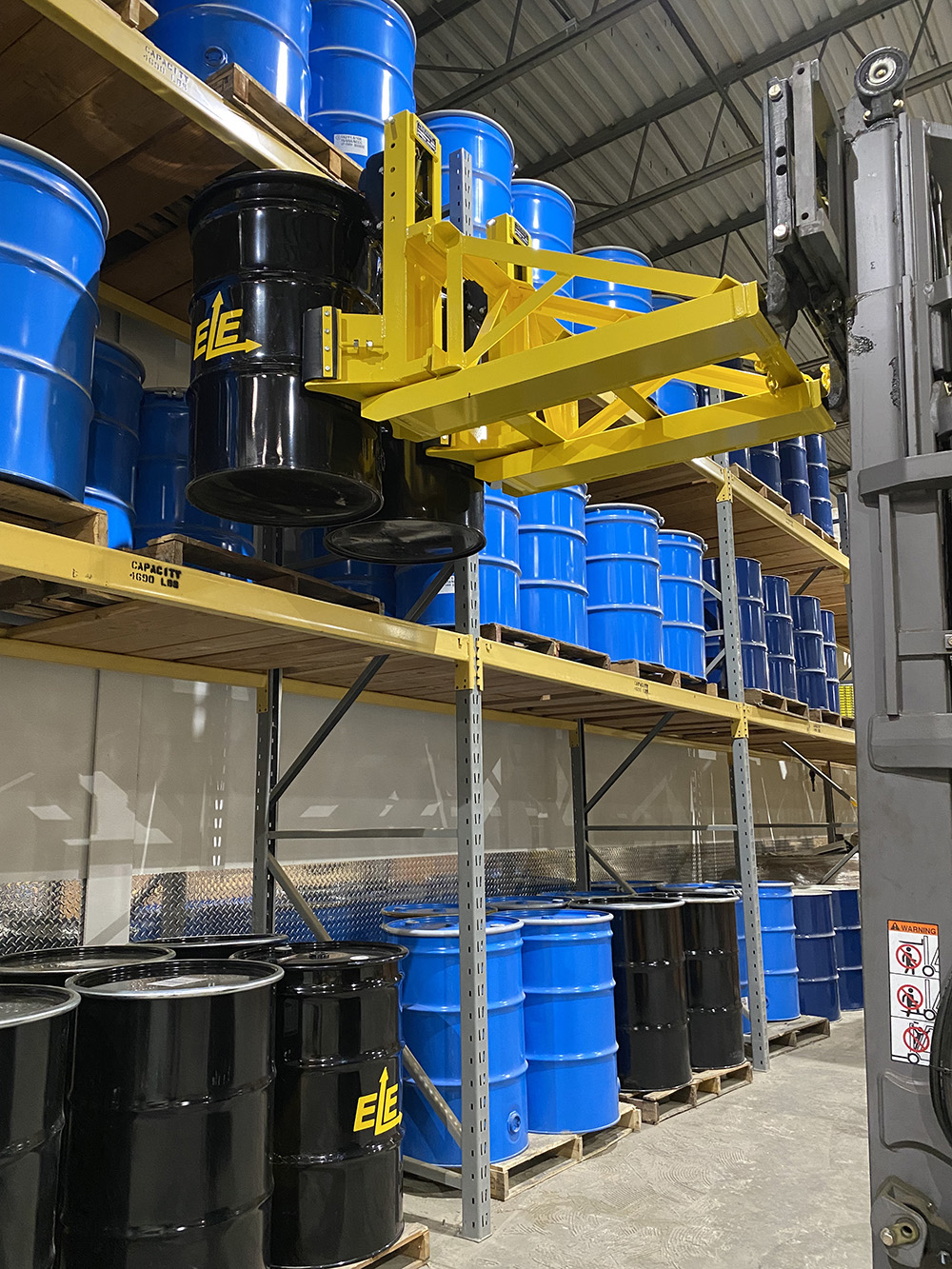

14-EG3SCM2-F-being-put-in-rack_resized

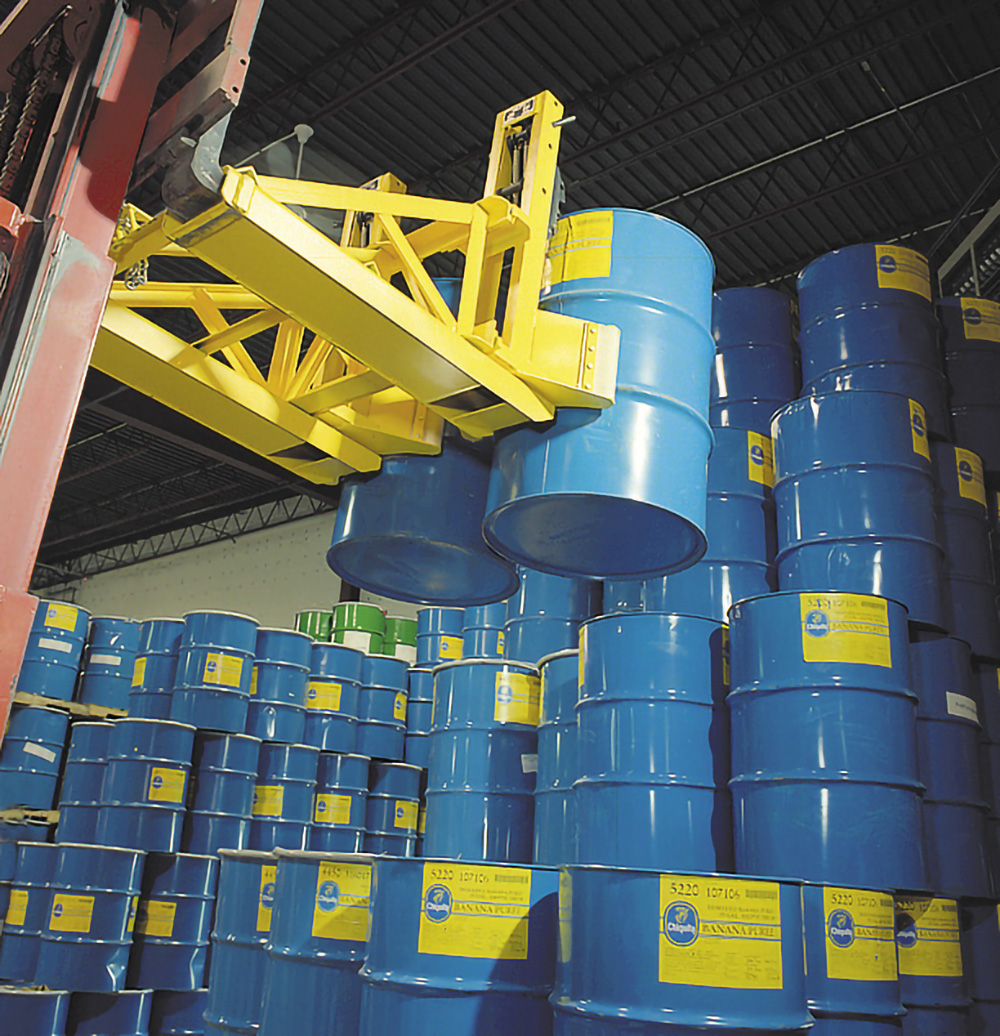

15-EG3SCM2-F-Step-tiering-drums_resized

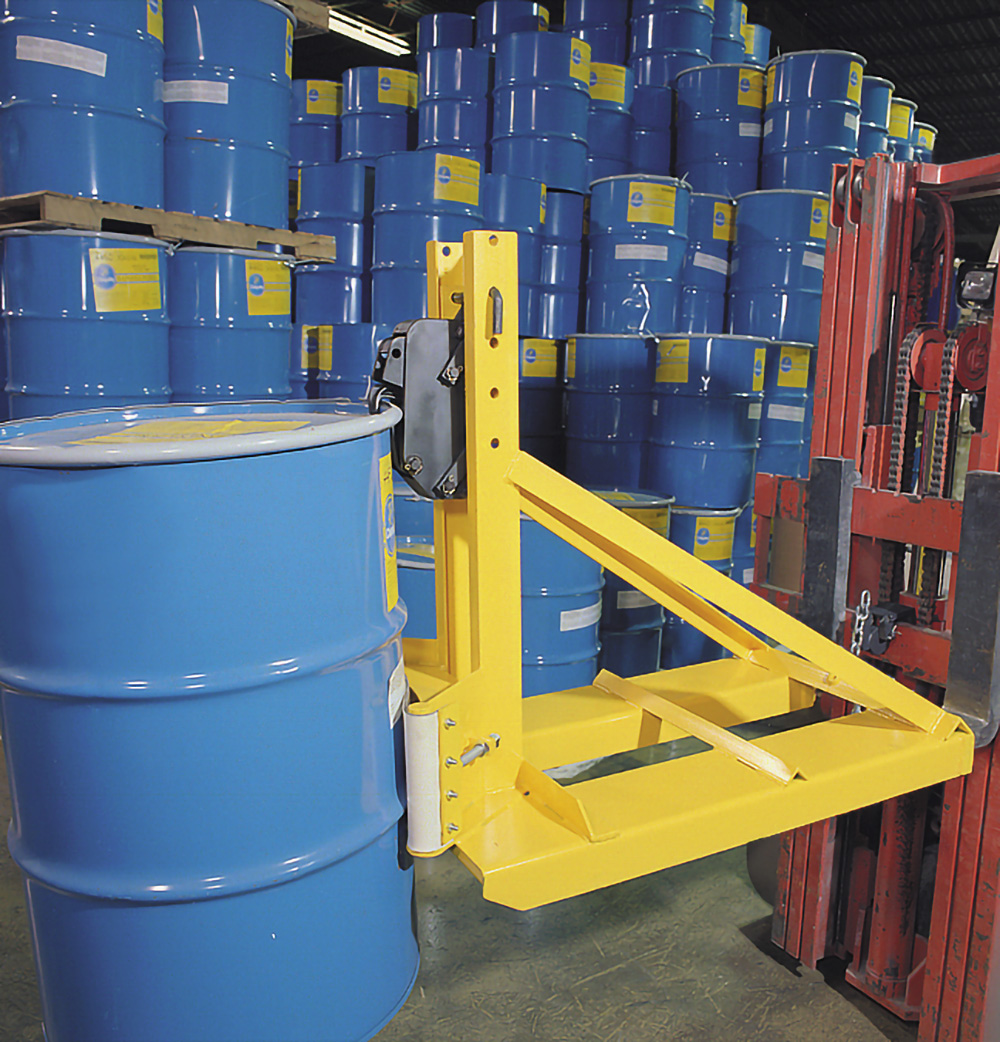

17-EG3SCM-NF-Narrow-Fork-Frame-with-drum_resized

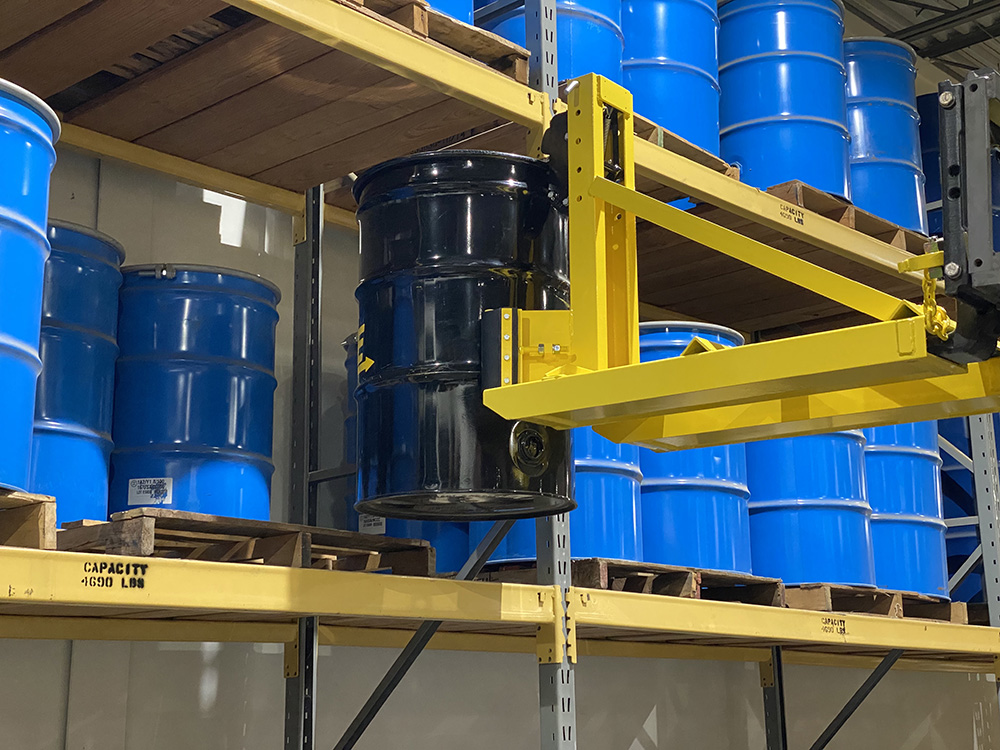

18-EG3SCM-NF-Narrow-Fork-Frame-lifting-drum-into-rack_resized

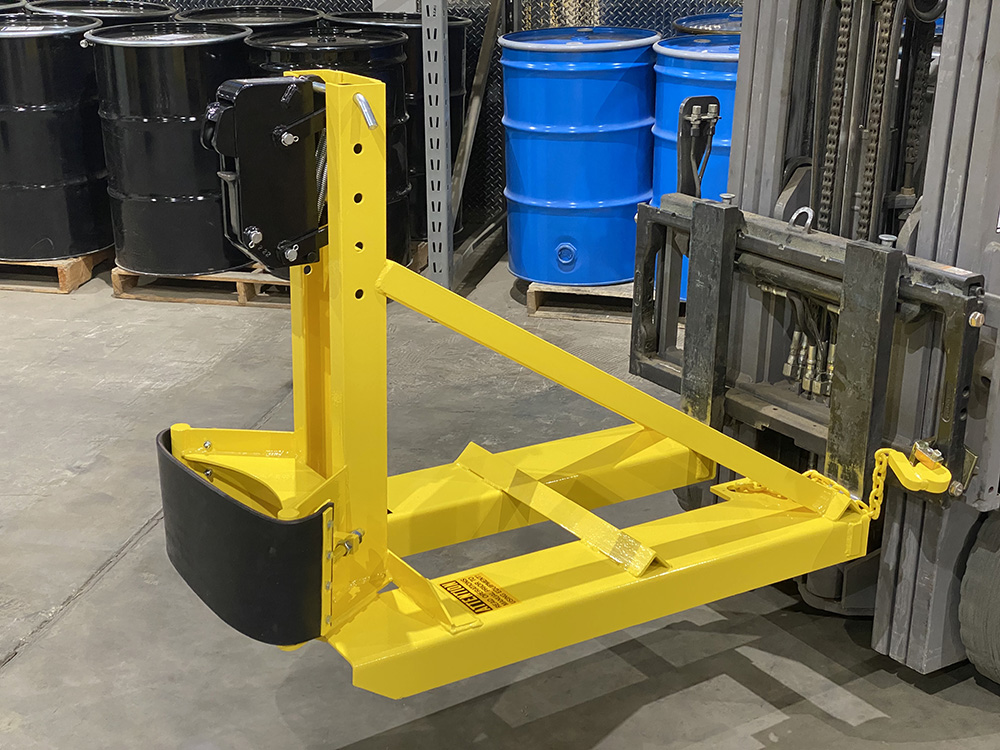

19-EG3SCM-NF-on-lift-without-drum_resized

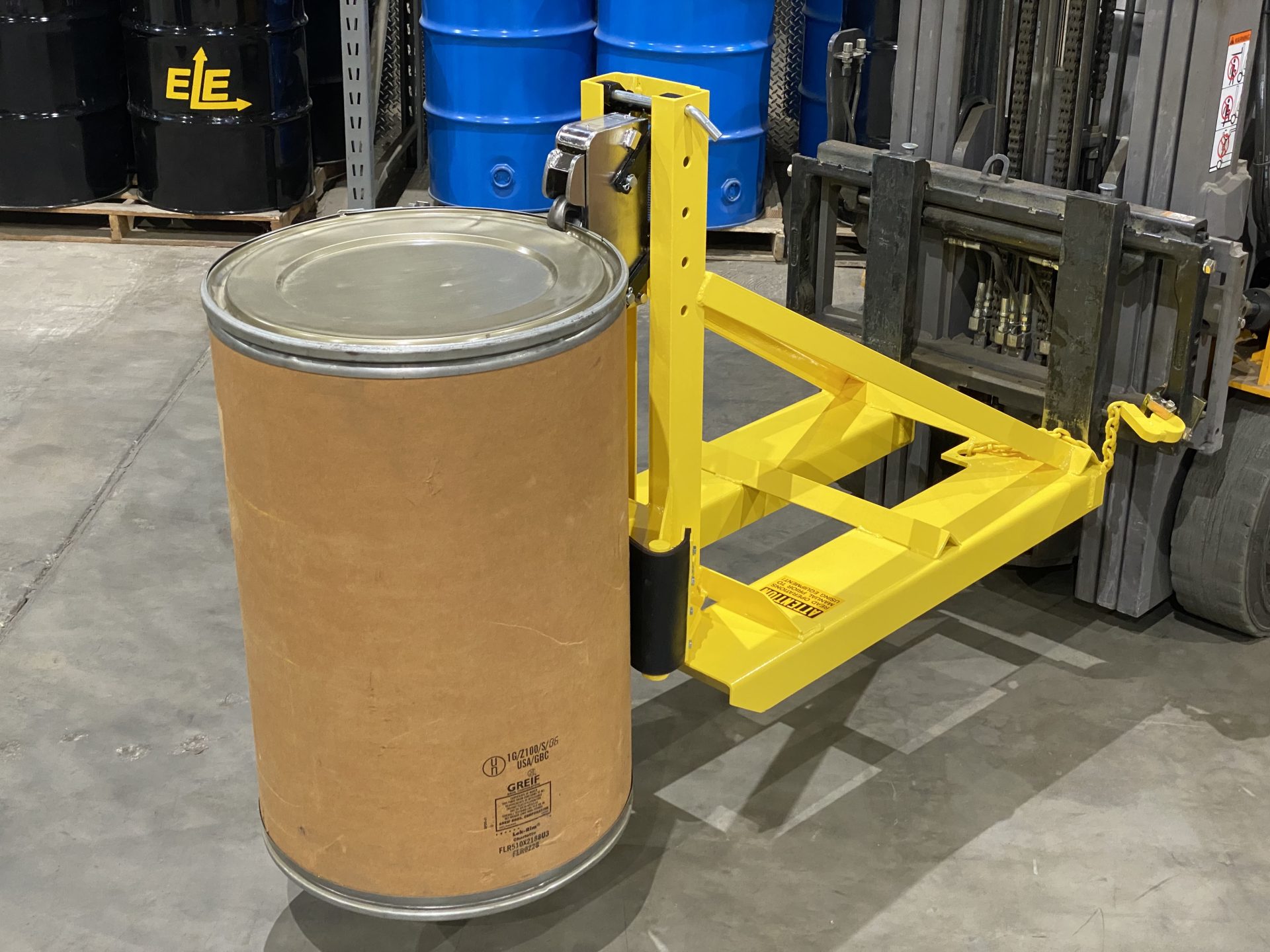

EG3SCMSRC-NF-with-Fiber-Drum

EG3SCMSRC-NFQC-S-with-drum

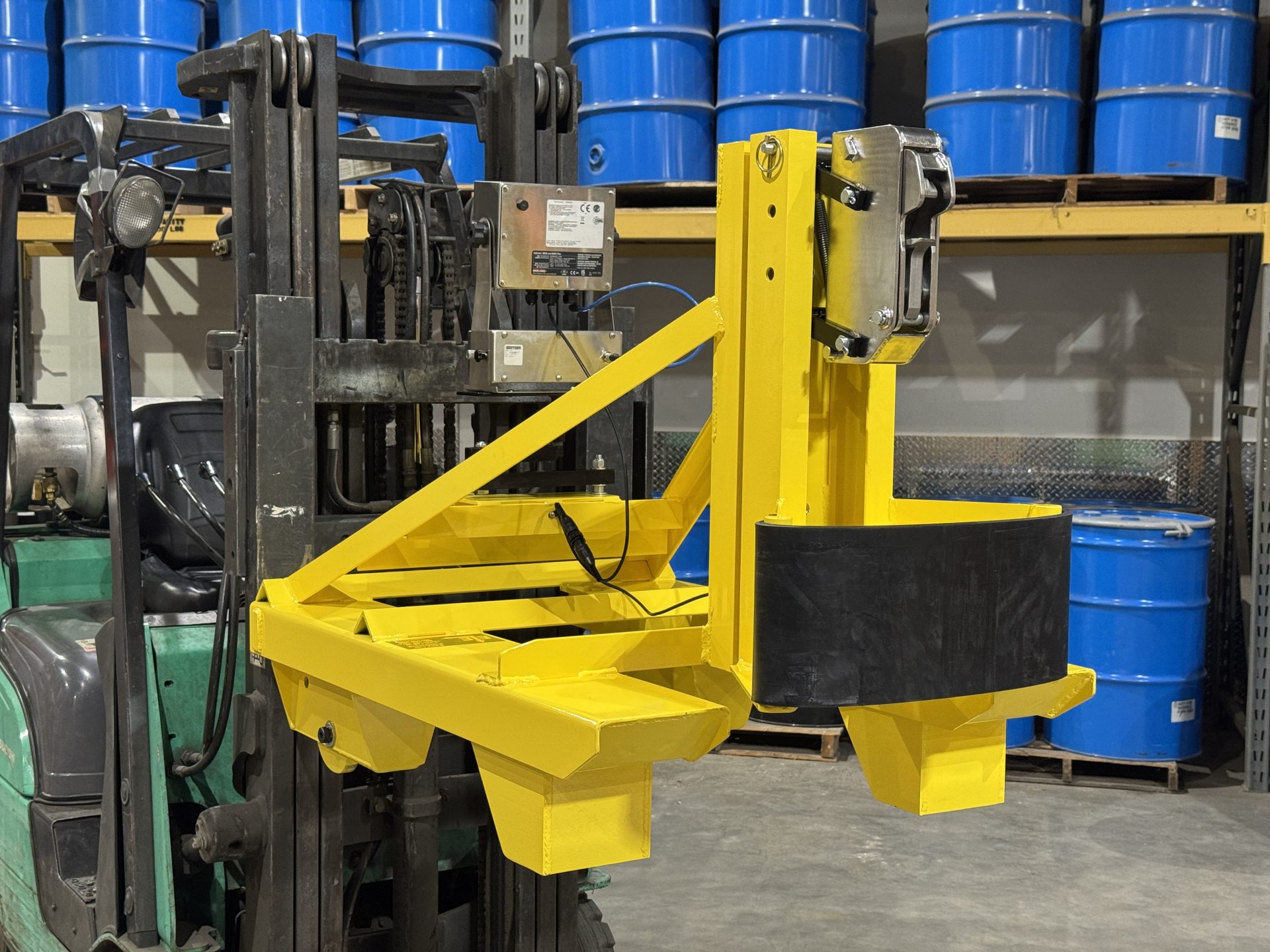

EG3SCM-FQC-IS-on-forklift-no-drum-02

01-EG3SCM-F-on-lift-without-drum_resized

02-EG3SCM-F-with-steel-plastic-and-fiber-drum-closeup_resized

03-EG3SCM-F-on-lift-with-steel-drum_resized

06-EG3SCM-F-raising-drum-into-rack_resized

07-EG3SCM-F-on-floor-with-another-CM_resized

08-EG3SCM2-F-on-floor-with-2nd-CM-installed_resized

EG3SCMSRC2-F-without-drums

10-EG3SCM2-F-with-steel-plastic-and-fiber-drum-closeup_resized

12-EG3SCM2-F-with-plastic-drums_resized

14-EG3SCM2-F-being-put-in-rack_resized

15-EG3SCM2-F-Step-tiering-drums_resized

17-EG3SCM-NF-Narrow-Fork-Frame-with-drum_resized

18-EG3SCM-NF-Narrow-Fork-Frame-lifting-drum-into-rack_resized

19-EG3SCM-NF-on-lift-without-drum_resized

EG3SCMSRC-NF-with-Fiber-Drum

EG3SCMSRC-NFQC-S-with-drum

EG3SCM-FQC-IS-on-forklift-no-drum-02

Eagle-Grip® 3 Series Attachment

Eagle-Grip® 3 Series Heavy-Duty / High Volume fork mount attachments utilize an Eagle-Grip 3 single automatic clamping mechanism designed for handling a steel, plastic, or fiber chimed drum. Eagle-Grip 3 Series attachments are capable of handling one or two drums at a time — 1,500 lbs. (680 kg) on the single drum handling attachment and up to 3,000 lbs. (1,361 kg) on the double drum handling attachment. All EG3 models come standard with rubber belt(s) attached to every drum cradle to help prevent cosmetic damage to the drum or drums being handled. Eagle-Grip 3 Series fork mounted models provide easy installation by the operator within seconds either to or from a fork truck. EG3 models are provided with totally enclosed 43” fork pockets for use with lift trucks equipped with 42” forks. Standard fork pocket size for EG3 models are 7″ Wide x 2.75″ High x 43″ Long. 49-inch Fork Pockets are also available for 48-inch forks. In addition, specific custom sized fork pockets are available for all Eagle-Grip attachments. Standard EG3 fork mount attachments are 30” (76 cm) wide for the single drum handling attachment and 38.5” (97.8 cm) wide for a two drum handling attachment. A Narrow Fork Frame is also available at time of order, which measures 24” (61 cm) in overall width and allows an operator to pick and place a single drum at a time on the far side of pallet, even in a congested rack. EG3’s are also available as a Class II carriage mount (CM), in lieu of fork mount.

Videos Brochure Manual

Request A Quote

Eagle-Grip®-3-Series-Lift-Truck-Attachment-Models-Easy-Lift-Equipment-0-7-screenshot-min

Eagle-Grip® 3 Series Lift Truck Attachment Models – Easy Lift Equipment

video-union

Specifications

Additional Options

Videos

Eagle-Grip® 3 Series Heavy-Duty / High Volume fork mount attachment
Standard attachments are available at time of order to handle either one or two drums at a time
1,500 lbs. (680 kg) capacity per drum, 3,000 lbs. (1,361 kg) total capacity for double drum handling models
Standard fork pocket size are 7″ (17.8 cm) wide x 2.75″ (7 cm) high x 43″ (109 cm) long
Fork mount attachments are 30” (76 cm) wide for a single drum handling attachment and 38.5” (97.8 cm) wide for a double handling attachment
A Narrow Fork Frame is also available at time of order for handling one drum at a time and measures 24” (61 cm) in overall width
Easy installation by the operator within seconds either to or from a fork truck
Come standard with a safety chain and cam lock to secure the fork mount attachment to a lift truck
Rubber belt(s) attached to every drum cradle to help prevent cosmetic damage to the drum or drums being handled
Finish: Safety yellow powder coating
1-year warranty
Made in USA

EG3SRC Single clamping mechanism with spark resistant clamp (all metal surfaces including clamping jaws which contact the drum to be stainless steel).

01-EG3SCMSRC-F-on-lift-no-drum_resized

Quick Claw Safety Restraint System (Requires 42” long forks) eliminates the need for operator to dismount from the lift truck to install the OSHA required safety chain. Quick-Claw cam locks automatically lock the attachment onto the lift truck forks when the attachment is lifted. A safety chain is not required with the Quick-Claw option.

02-EG3SCM2-FQC-with-steel-drums_resized

Non-Intrinsically Safe Scale System: Doran 7000XLM Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

Intrinsically Safe Scale System: Rice Lake 882IS or Mettler-Toledo 256x Indicators for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration. FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4. (Not pictured)

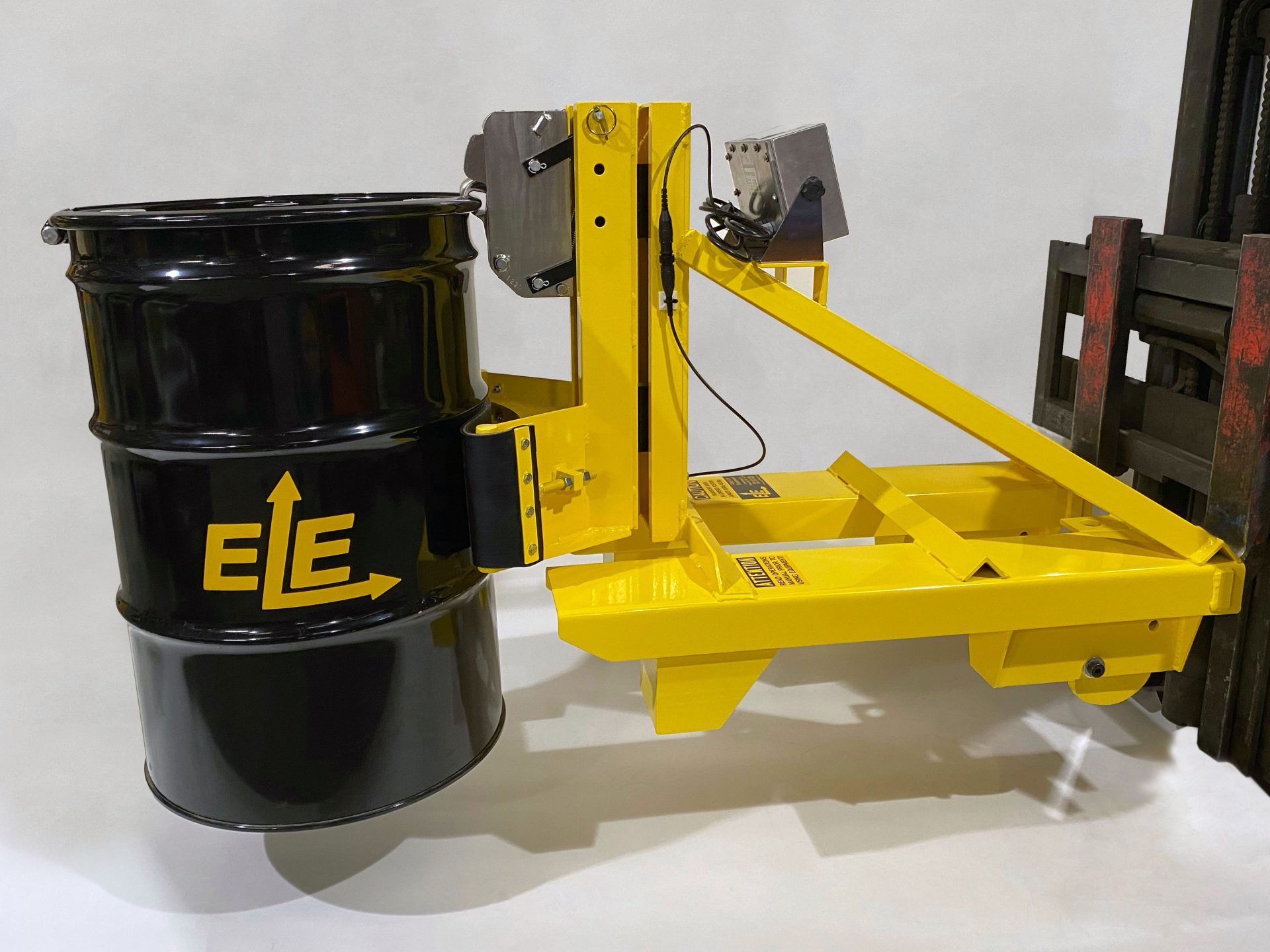

EG3SCMSRC-NFQC-S-with-drum

EG3 Preventative Maintenance Kit

02-NO-PHOTO-IMAGE-COMING-SOON-1

“FDA” Compliant Metallic Gray Powder Coating

02-NO-PHOTO-IMAGE-COMING-SOON-1
