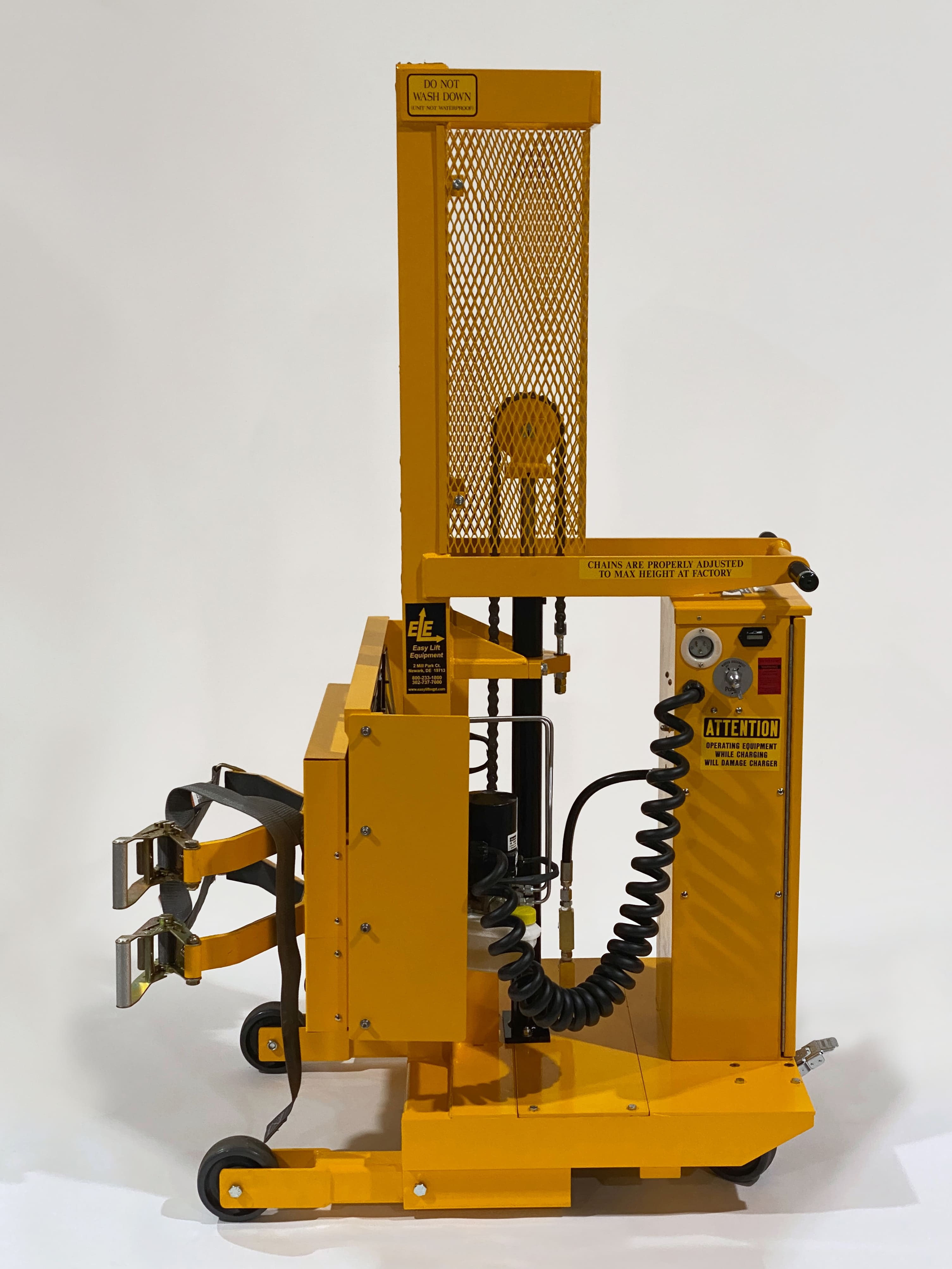

02-ELDR50048SR-clamp-lowered-no-drum-1

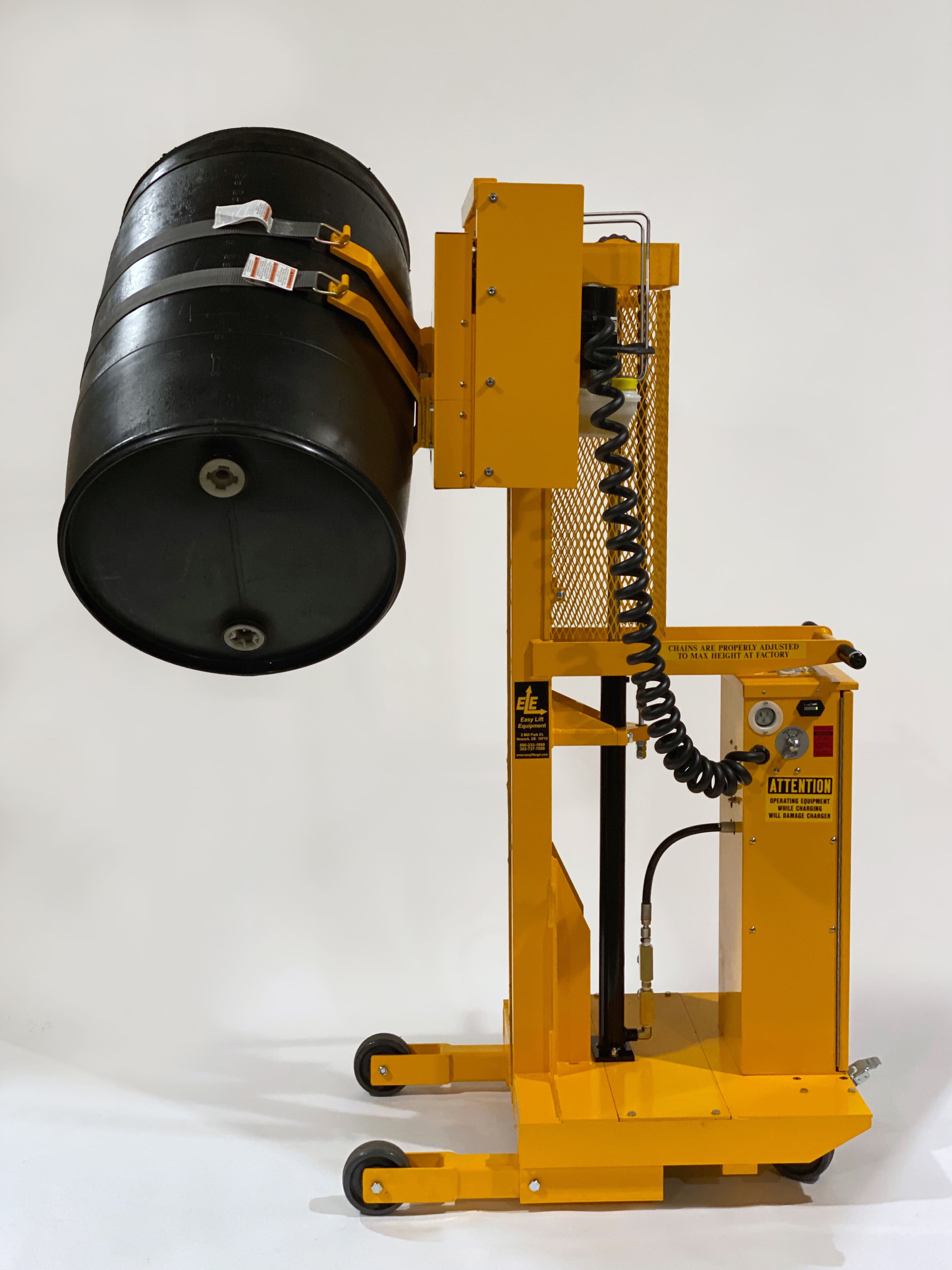

03-ELDR50048SR-clamp-raised-with-plastic-drum-in-pour-position-1

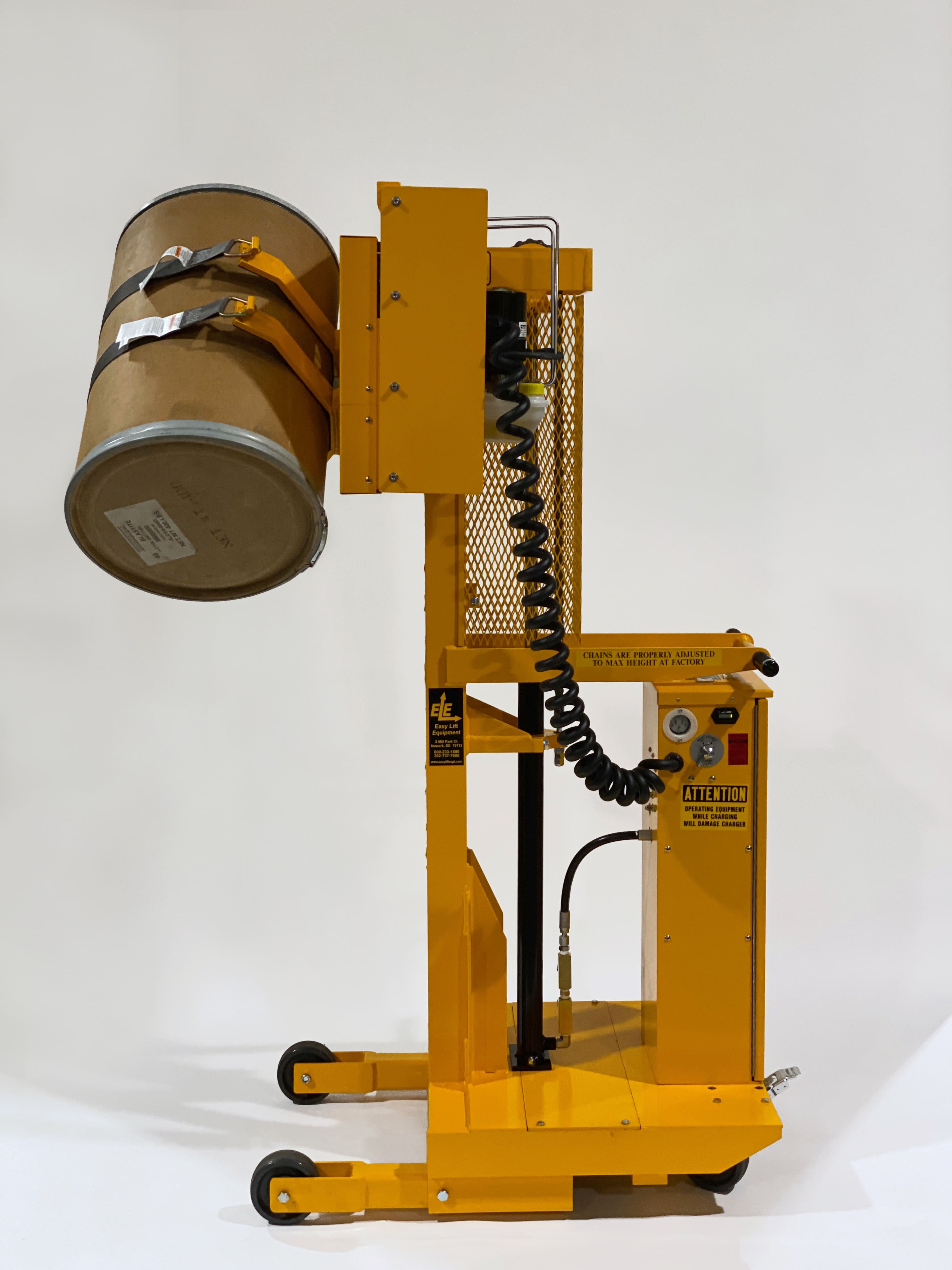

04-ELDR50048SR-clamp-raised-with-fiber-drum-in-pour-position-1

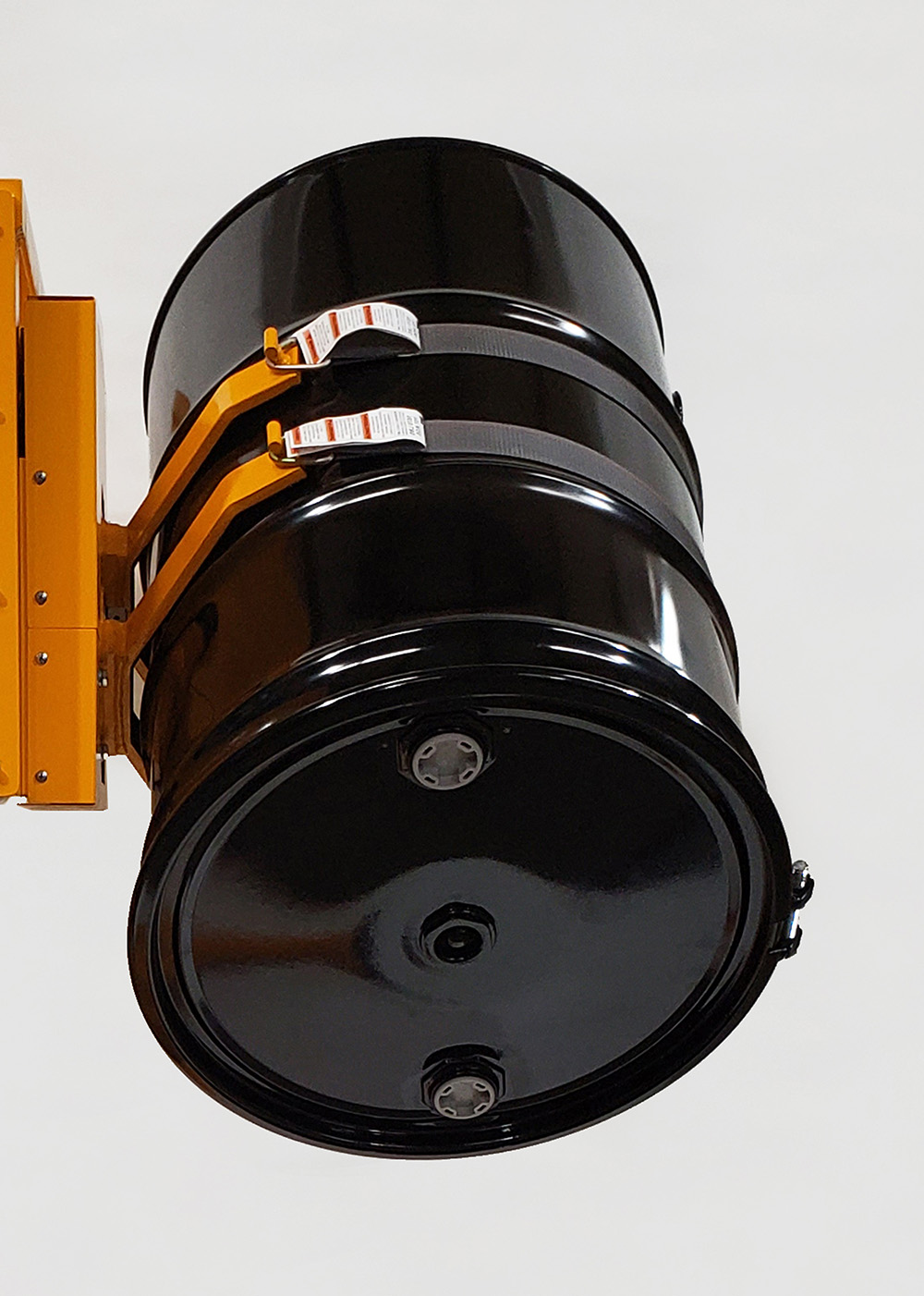

02-ED-DC-closeup-of-SR-Clamp-with-drum

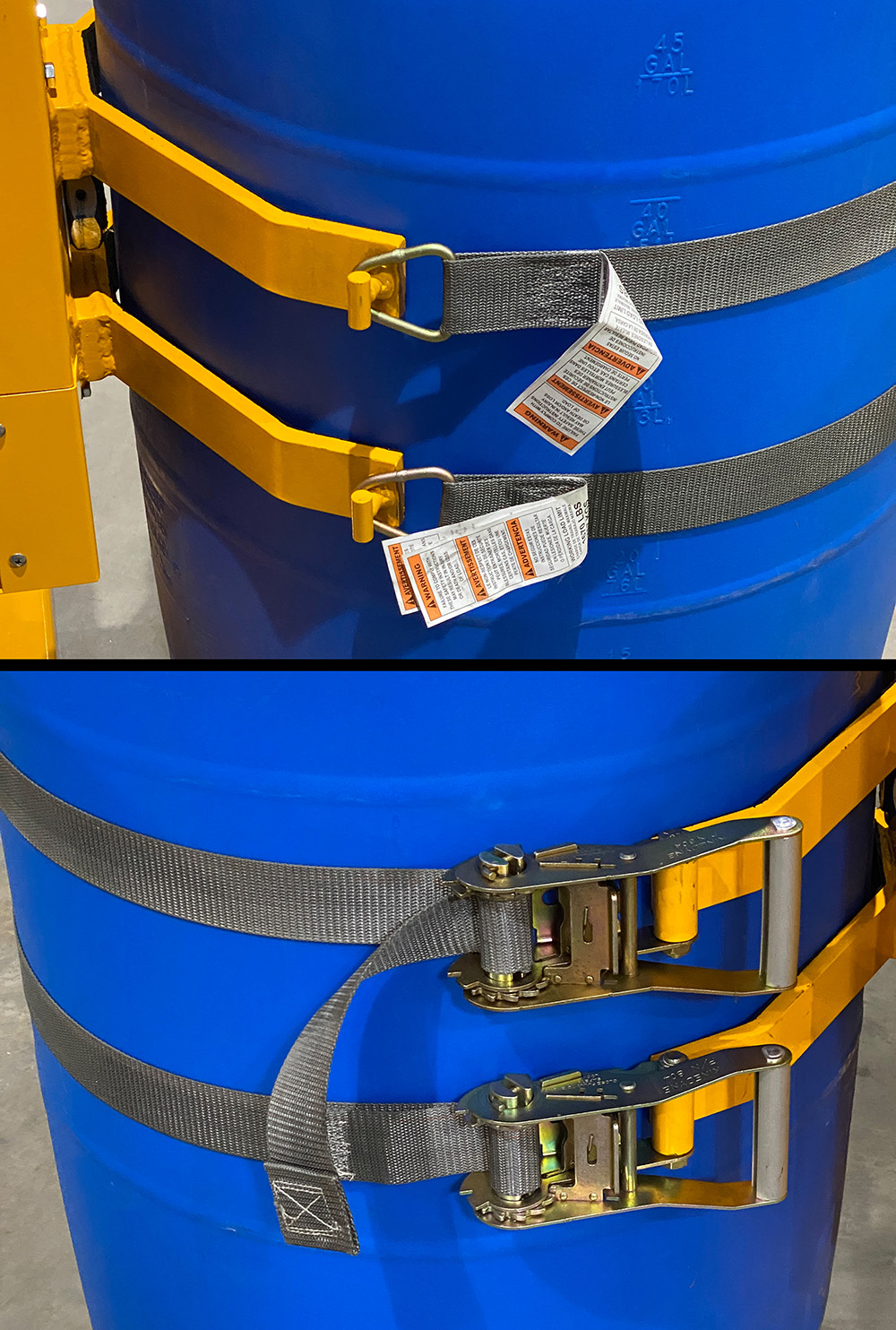

03-Closeup-of-SR-Clamp-on-plastic-drum

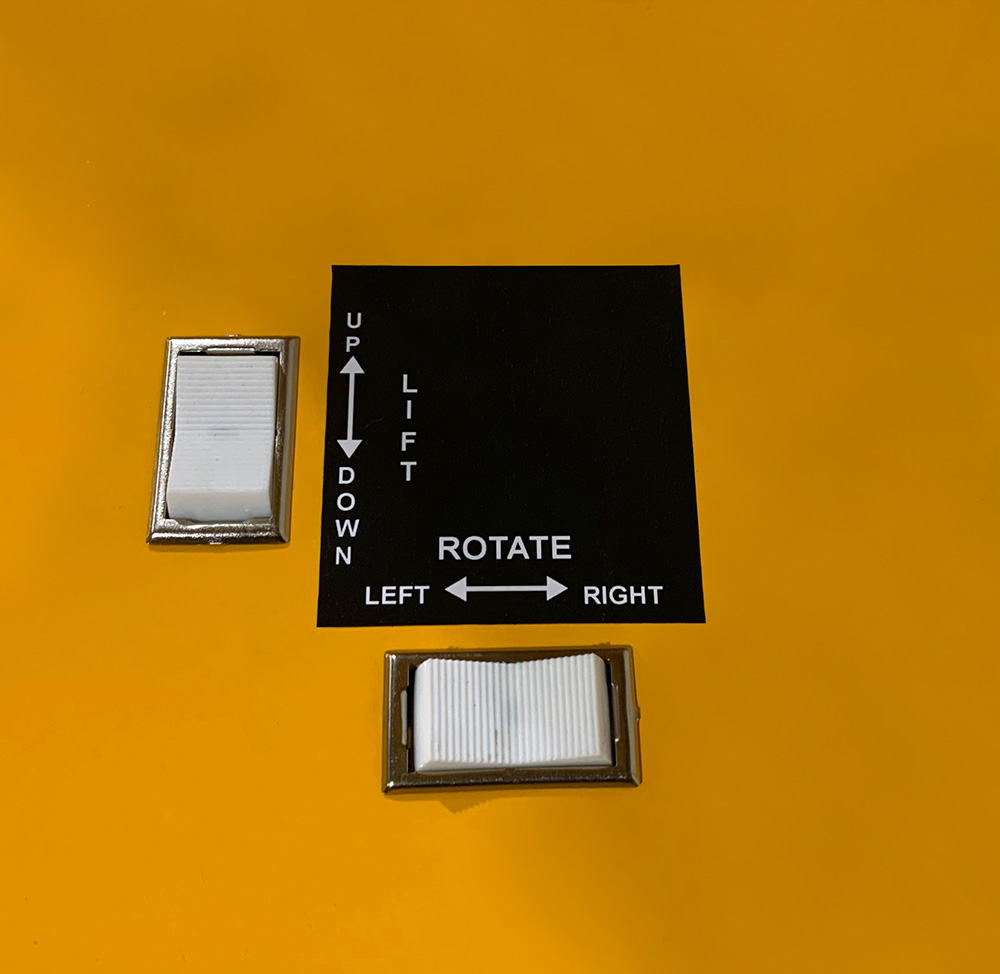

04-Lift-and-Rotate-ED-DC-Cabinet-Controls

ELDR Narrow Aisle Drum Dumpers

with DC Powered Lift, SR Clamp, and Rotate

ELDR Narrow Aisle Drum Dumpers with DC powered lift, SR (Strap Rotator) clamp and rotate (for non-hazardous areas) are designed for handling drums with capacities up to 500 lbs. (226.8 kg). ELDR models are designed to work in tight, congested areas. Straddle leg models are 27″ (68.6 cm) wide by 36″ (91.4 cm) in length. A low-profile base frame permits the clamp to grip a drum or small container from the floor or a pallet. Single-stage masts provide either 41” (104.1 cm) or 53” (134.6 cm) of vertical lift. The SR clamp features two ratchet straps for handling steel, plastic, or fiber drums from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing. ELDR Drum Dumpers feature high-quality Darcor® casters, which help decrease the push and pull forces involved with moving heavy drums. An ergonomic step-down foot floor lock is also included for added safety, locking the equipment into place when it’s not in use.

Videos Brochure
Request A Quote
Specifications
Additional Options
Videos

  • Manual propelled unit with DC powered: lift and rotation

  • Capacity: 500 lbs. (225kg)

  • Single stage mast sits 10.5″ (26.7cm) above floor level in lower vertical position and provides either 41” (104.1cm) or 53” (134.6cm) of lift from floor to bottom of a 34.5” (87.6cm) tall drum in the vertical position

  • DC powered lift and rotation with (2) 12-volt AGM deep cycle batteries (24-volt system), hydraulic motor & internal charger housed in a closable cabinet with a master disconnect switch and gauge type battery discharge indicator.  (A polarized heavy gauge extension cord rated 12-3 15amp / 125 volt with grounded type B (NEMA 5-15) plug is required).

  • SR clamp with two ratchet straps for handling a steel, plastic, or fiber drum from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing

  • Lift/lower and rotate left/right function located in the top of DC cabinet

  • Darcor® ergonomic non-marking casters 5” x 2”: (2) swivel, (2) rigid

  • Ergonomic step-down foot floor lock

  • Finish: Safety orange powder coating

  • Base Dimensions: 42.5” (106.68cm) length x 27.5” (69.9cm) width, 29.5” (75cm) width at clamp x 69” (175.3cm) or 79” (200.7cm) lowered height

  • 1-year warranty

  • Made in USA

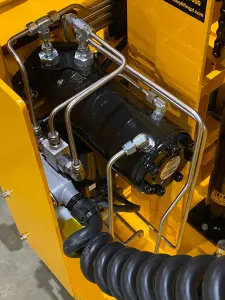

Anti-Drift Motor Brake for suspending an unbalanced load in a rotated position for an extended period of time.

01-Anti-Drift-Motor-Brake-225x300-1

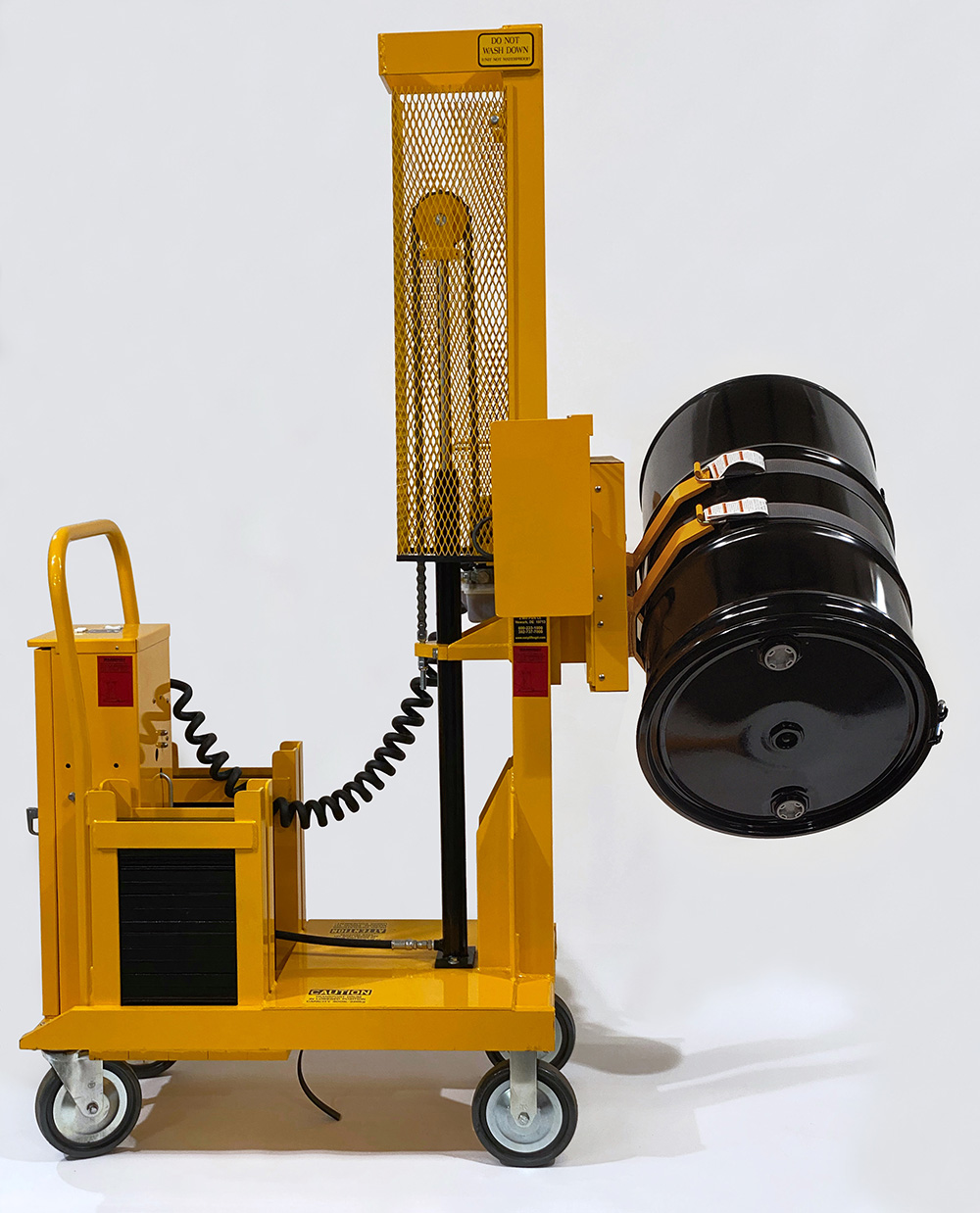

 Counterbalanced base frame in lieu of Straddle leg base frame

02-DC-Powered-ELDR-with-SR-Clamp

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid



02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

Non-Intrinsically Safe Scale System: Rice Lake 680 Indicator for dispensing by weight or performing inventory. Includes swivel ​scale bracket, all wiring, two stainless steel load cells, hardwired todrum dumper battery, mounting and calibration.


DC Cabinet with exchangeable batteries for long run application (includes quick disconnects, two sets of 12-volt AGM batteries and external charger in lieu of internal charger) requires DC powered lift option

01-Exch.-Battery-Option-in-DC-Cabinet-2

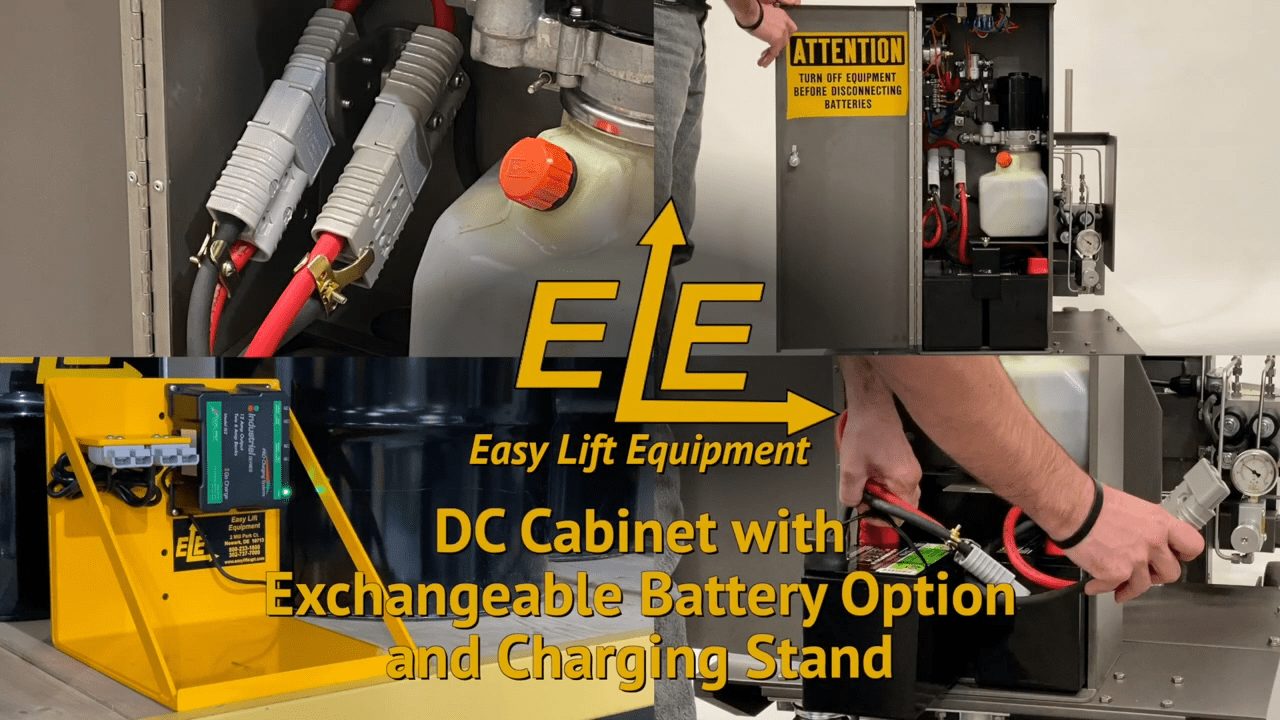

DC Cabinet with exchangeable batteries & charging stand for long run applications (includes quick disconnects, two sets of 12-volt AGM batteries, and a wall mounted charging stand with an external charger in lieu of internal charger) requires DC powered lift option

07-Exch.-Battery-DC-Box-and-Shelf

Additional set of exchangeable 12-volt AGM batteries with quick disconnects requires DC powered lift & DC Cabinet with exchangeable batteries option

04-Set-of-Exchangeable-Batteries-2
