ED Drum Dumpers

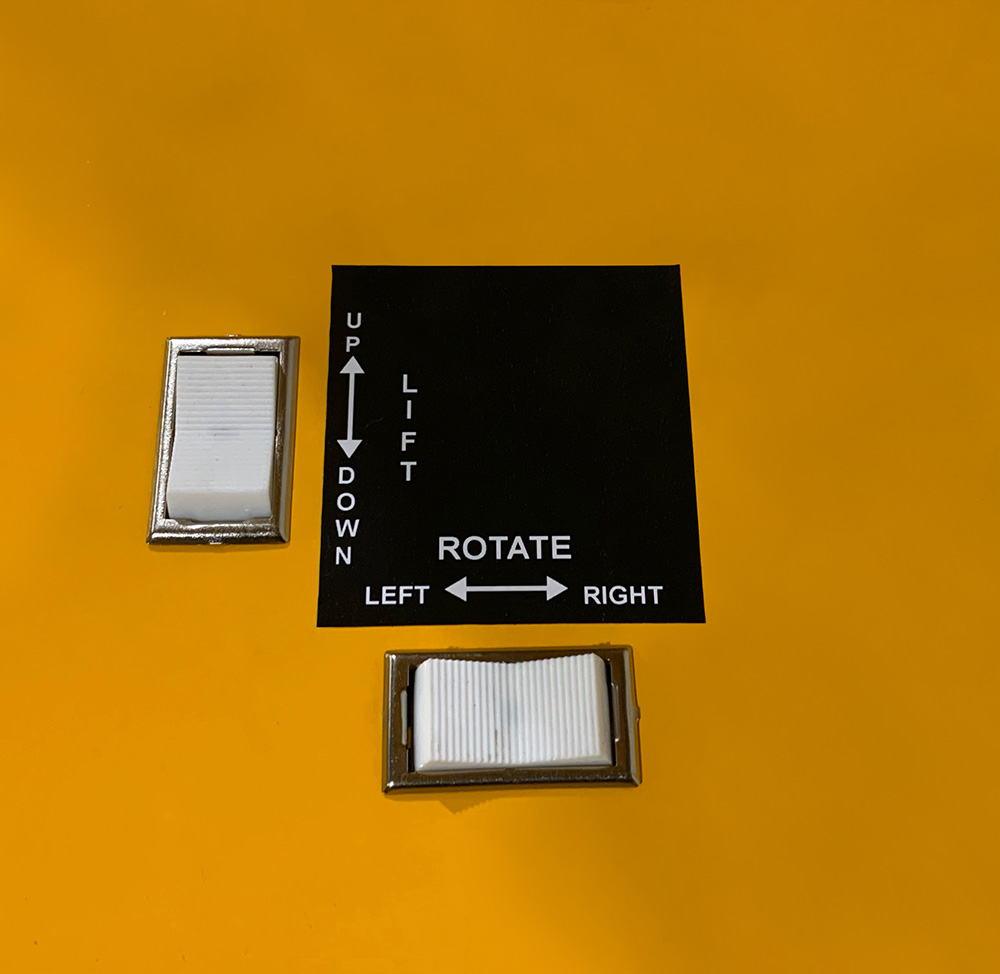

with DC Powered Lift, SR Clamp, and Rotate

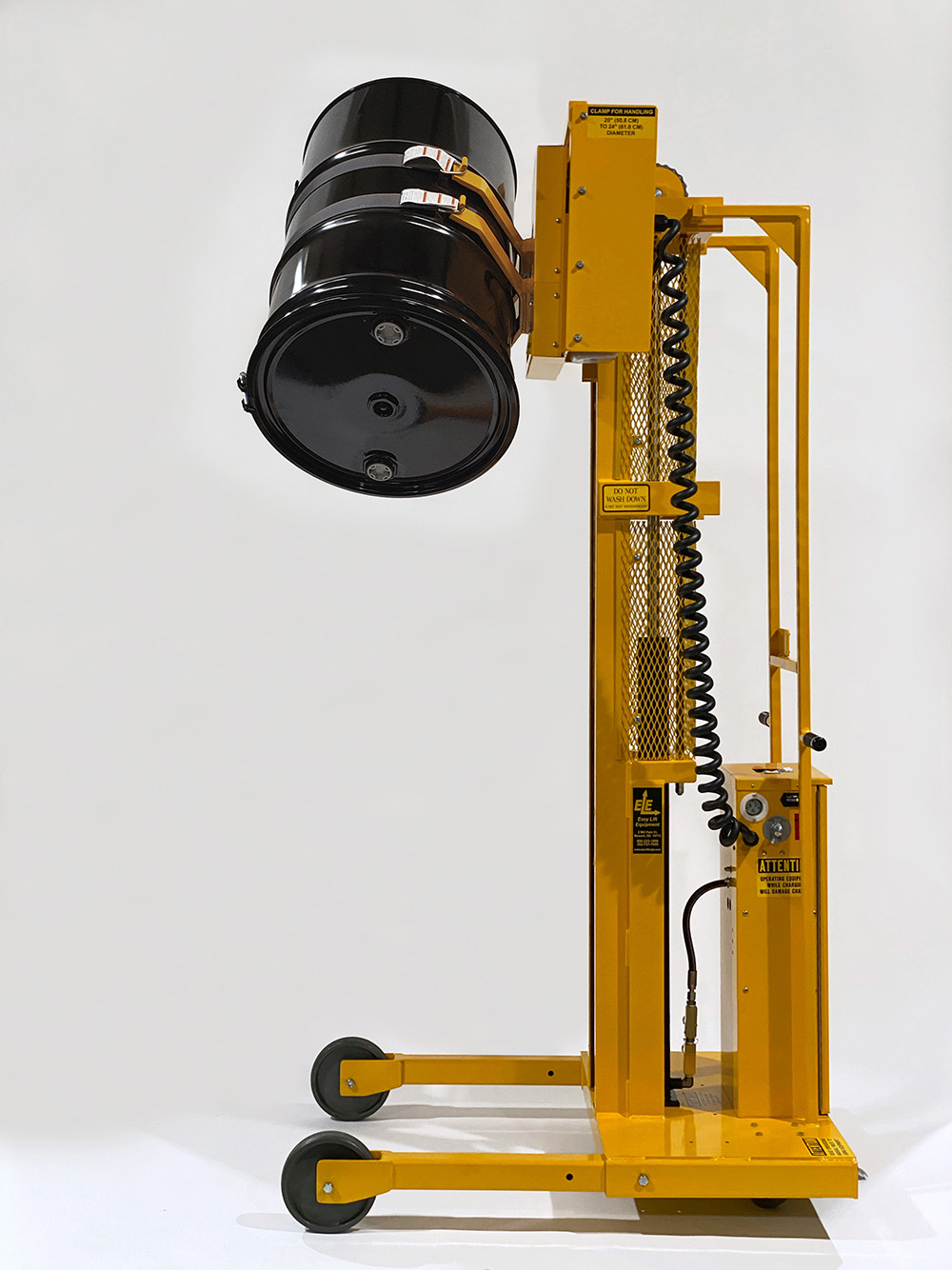

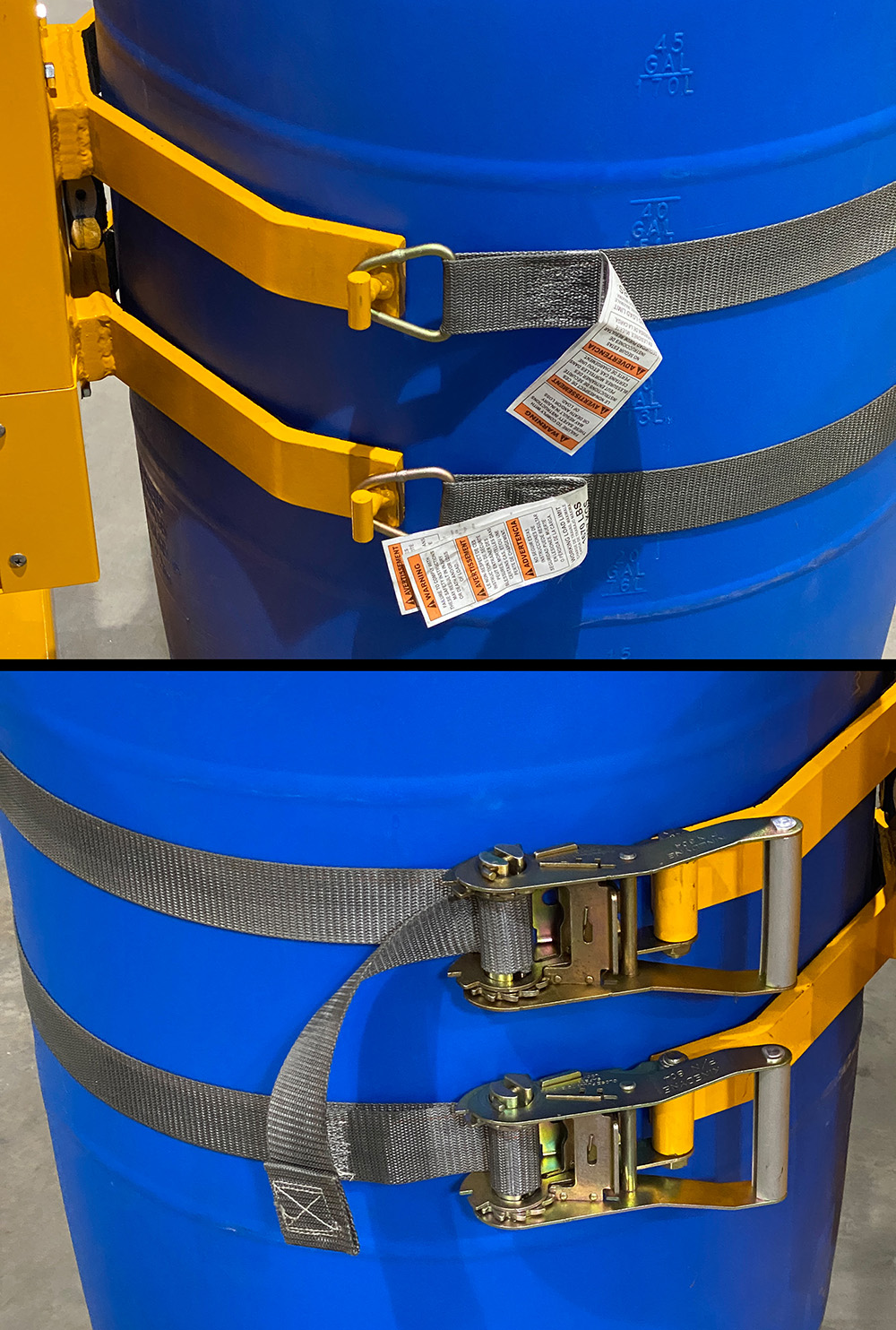

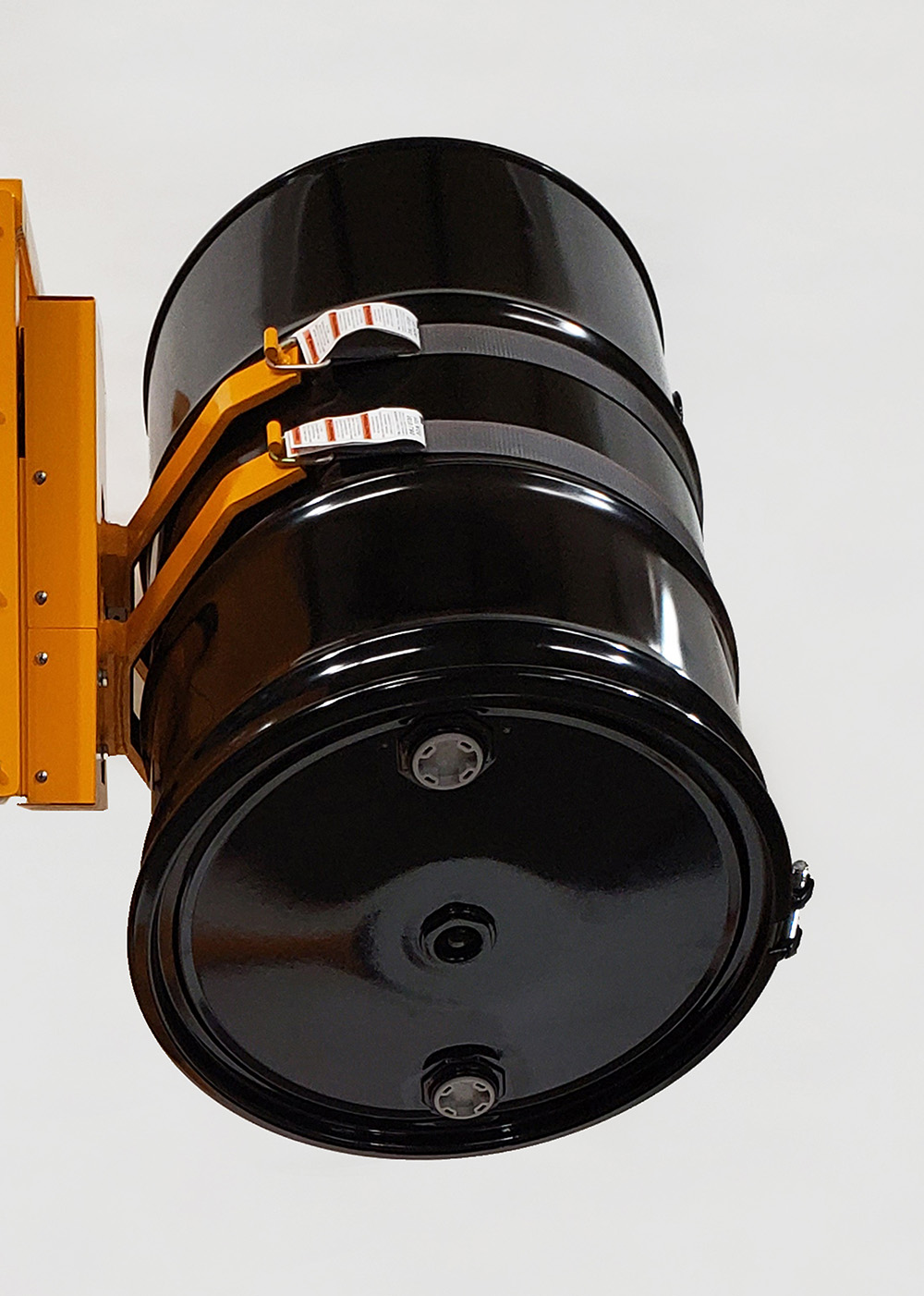

ED Drum Dumpers with DC powered lift, SR (Strap Rotator) clamp and rotate (for non-hazardous areas) are designed for handling a drum with a standard capacity of 800 lbs. (362.9 kg) but are also available in configurations designed to handle up to 1,200 lbs. (545 kg). ED models are designed with a straddle leg base frame 34.5″ (87.6 cm) wide and 47″ (119.4 cm) in length based on clamp and weight capacity requirements. Available with either a single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift. The SR clamp feature two ratchet straps for handling a steel, plastic, or fiber drum from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing. ED Drum Dumpers feature high quality Darcor® casters, which help decrease the push and pull forces involved with moving heavy drums. An ergonomic step-down foot floor lock is also included for added safety, which locks the equipment into place when it’s not in use.
