ELDR Narrow Aisle Drum Dumpers

with DC Powered Lift, CR Clamp, and Rotate

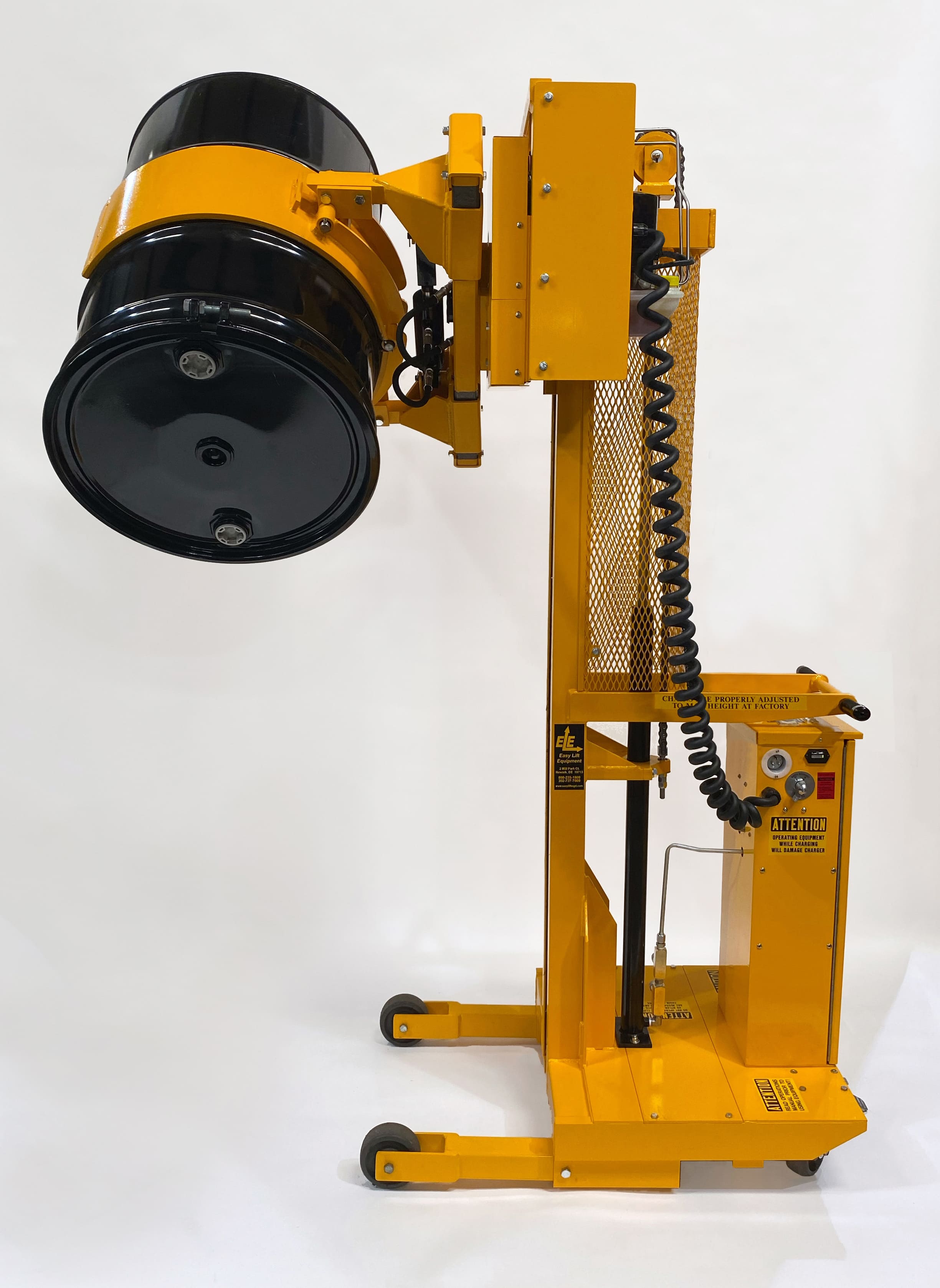

ELDR Narrow Aisle Drum Dumpers with DC powered lift, CR clamp and rotate (for non-hazardous areas) are designed for handling drums with capacities up to 500 lbs. (226.8 kg). ELDR models are built to work in tight, congested areas. Straddle leg models are 41.9″ (106.4 cm) in length and 29.5″ (74.9 cm) in overall width. A low-profile base frame permits the clamp to grip a drum or small container from the floor or a pallet. Single-stage masts provide either 41” (104.1 cm) or 53” (134.6 cm) of vertical lift. The CR clamp features two 8” (20.3 cm) high clamping jaws, each lined with white SBR rubber to provide a durable yet secure non-marking surface to grip the drum. CR clamps are designed for handling steel, plastic, or fiber drums from 20” (50.8 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing. ELDR Drum Dumpers feature high-quality Darcor® casters, which help decrease the push and pull forces involved with moving heavy drums. An ergonomic step-down foot floor lock is also included for added safety, locking the equipment into place when it’s not in use.

Brochure Video
Request A Quote
ELDR-DC-Powered-Drum-Dumper-with-CR-Clamp-FDA-Powder-Scale-Easy-Lift-Equipment-0-8-screenshot-min

ELDR DC Powered Drum Dumper with CR Clamp, FDA Powder & Scale – Easy Lift Equipment

video-union


Specifications
Additional Options
Videos

  • Manual propelled unit with DC powered: lift, clamp, and rotation

  • Capacity: 500 lbs. (225kg)

  • Single stage mast sits 10.5″ (26.7cm) above floor level in lower vertical position and provides either 41” (104.1cm) or 53” (134.6cm) of lift from floor to bottom of a 34.5” (87.6cm) tall drum in the vertical position

  • DC powered lift, clamp, and rotation with (2) 12-volt AGM deep cycle batteries (24-volt system), hydraulic motor & internal charger housed in a closable cabinet with a master disconnect switch and gauge type battery discharge indicator.  (A polarized heavy gauge extension cord rated 12-3 15amp / 125 volt with grounded type B (NEMA 5-15) plug is required).

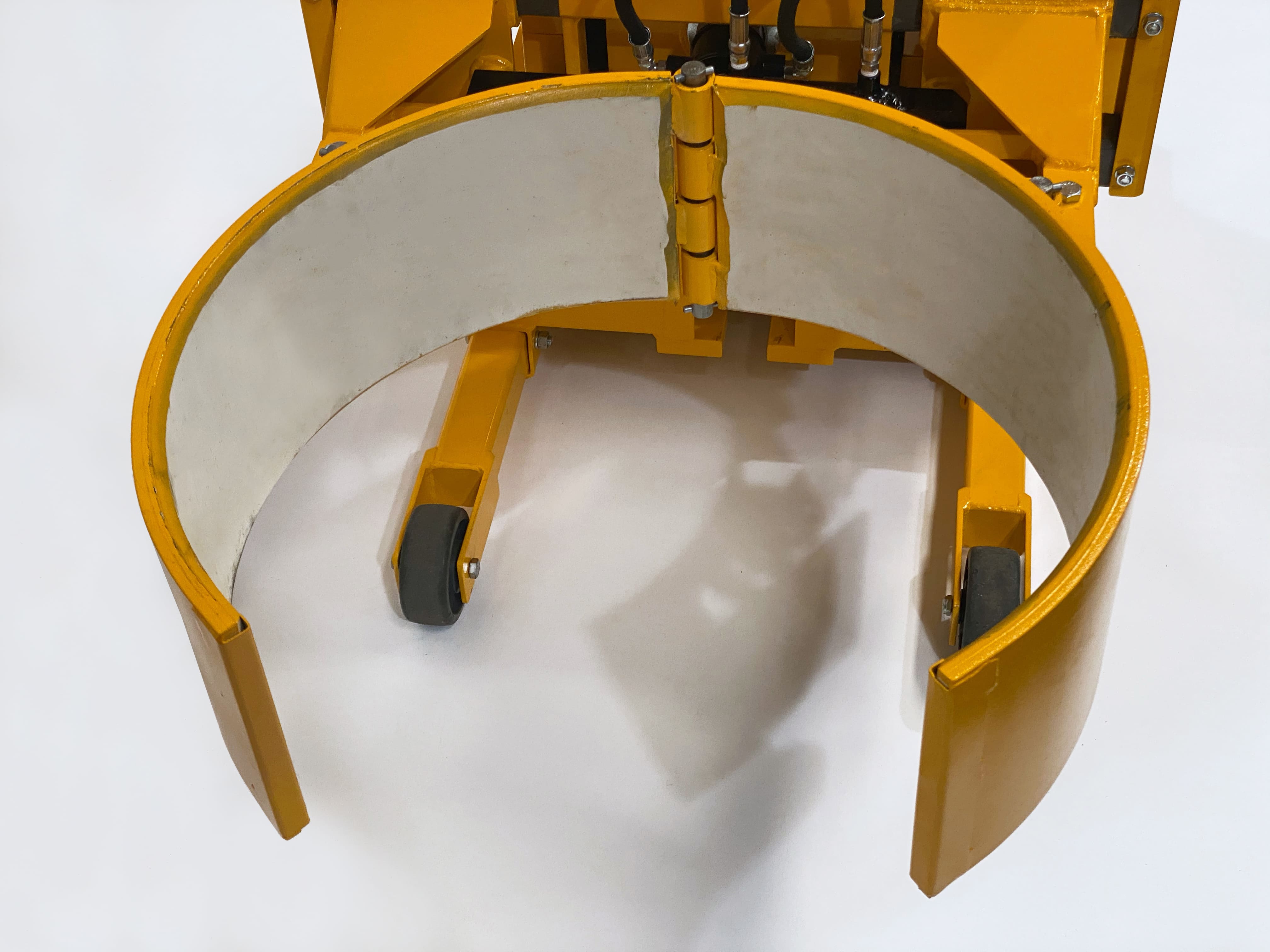

  • CR side clamp rotator lined with white non-marking rubber to securely grip a plastic, fiber, or steel drum from 20” (50.8cm) to 24” (60.9cm) in diameter.

  • Clamp Rotator rotates 360 degrees left or right for dispensing

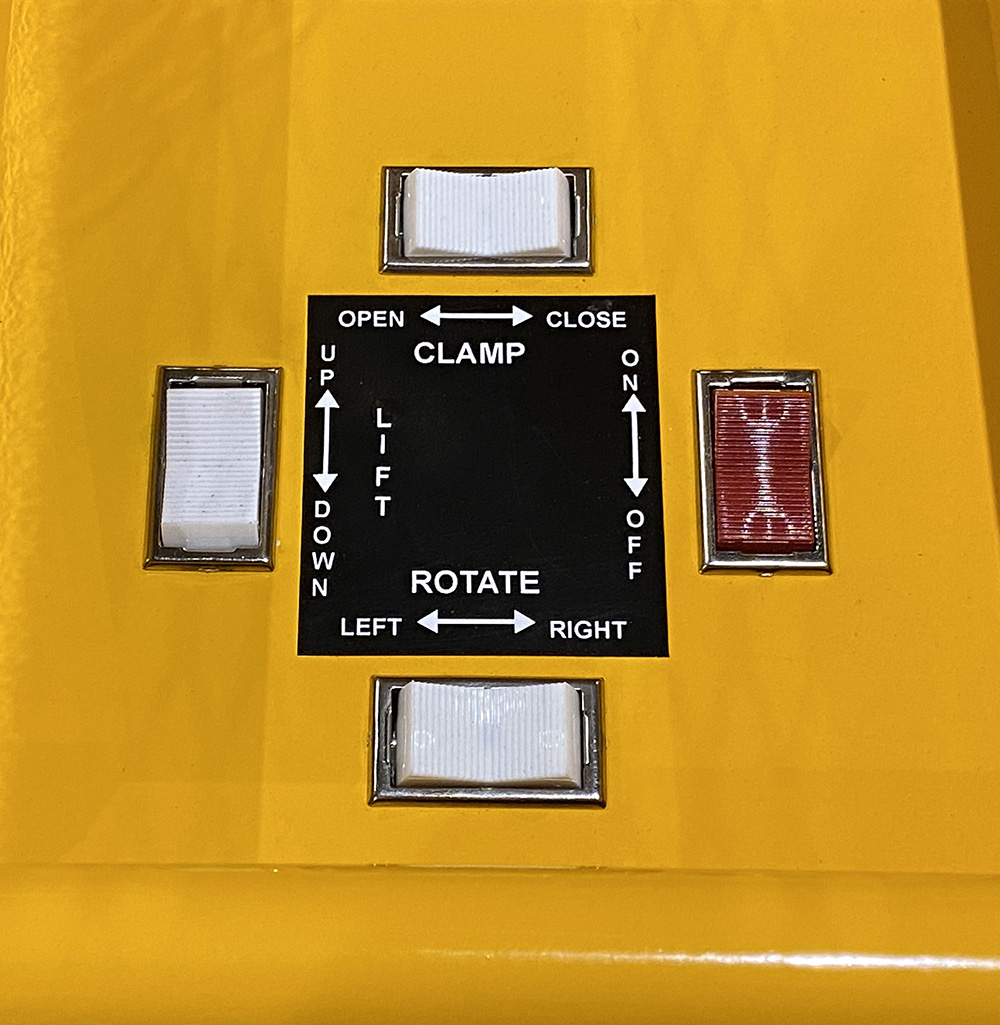

  • Lift/lower, clamp/unclamp and rotate left/right function located in the top of DC cabinet

  • Clamp/unclamp with red dead-man switch to prevent accidental dropping of drum

  • Darcor® ergonomic non-marking casters 5” x 2”: (2) swivel, (2) rigid

  • Ergonomic step-down foot floor lock

  • Finish: Safety orange powder coating

  • Base Dimensions: 41.9″ (106.4cm) length x 29.5″ (74.9cm) in overall width

  • 1-year warranty

  • Made in USA

Small Drum Adaptor (for 16” (40.6cm) to 20” (50.8cm) diameter drums) The small drum adapter is comprised of two individual curved sections with white SBR rubber vulcanized to the metal curve to provide a durable yet secure non-marking surface to grip the drum. Each curve is slid onto a clamping jaw then locked into place by inserting a stainless-steel retaining pin & circle cotter pin on a lanyard.

    ​

    01-CR-Clamp-with-Small-Drum-Adapter

    Stainless-Steel Adjustable Foot (Quantity 1 Bolt-on, 3530061) & Stainless-Steel Pony Hold Down (Quantity 1 Bolt-on, 3530062). When handling a heavy plastic, fiber, or tapered drum it may be necessary to add either a pony hold-down or foot support to reduce the risk of slippage from the clamping jaws. The CR clamping jaws have two pre-drilled and tapped locations for easy installation. Both supports are constructed in stainless-steel for cleanliness and durability.

    Pony-Foot-STILL-for-website

    Adjustable Clamping Pressure with Pressure Gauge – When handling light fiber or a sensitive drum subject to impressions it may be necessary to lower the hydraulic pressure of the clamping mechanism. Reducing the hydraulic clamping pressure will reduce the force of the clamping mechanism against the drum being gripped.

      02-Adjustable-Clamping-Pressure-min

      Anti-Drift Motor Brake for suspending an unbalanced load in a rotated position for an extended period of time

        01-Anti-Drift-Motor-Brake

         Counterbalanced base frame in lieu of Straddle leg base frame

        05-Counterbalanced-ELDR-w-CR-Clamp

        “FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid

        01-DC-Powered-ELDR-CR-Clamp-FDA

        Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

        02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

        Non-Intrinsically Safe Scale System: Rice Lake 680 Indicator for dispensing by weight or performing inventory. Includes swivel ​scale bracket, all wiring, two stainless steel load cells, hardwired to drum dumper battery, mounting and calibration.

        01-DC-Powered-ELDR-with-CR-Clamp-and-Scale

        DC Cabinet with exchangeable batteries for long run application (includes quick disconnects, two sets of 12-volt AGM batteries and external charger in lieu of internal charger) requires DC powered lift option

        01-Exch.-Battery-Option-in-DC-Cabinet-2

        DC Cabinet with exchangeable batteries & charging stand for long run applications (includes quick disconnects, two sets of 12-volt AGM batteries, and a wall mounted charging stand with an external charger in lieu of internal charger) requires DC powered lift option

        07-Exch.-Battery-DC-Box-and-Shelf

        Additional set of exchangeable 12-volt AGM batteries with quick disconnects requires DC powered lift & DC Cabinet with exchangeable batteries option

        04-Set-of-Exchangeable-Batteries-2
