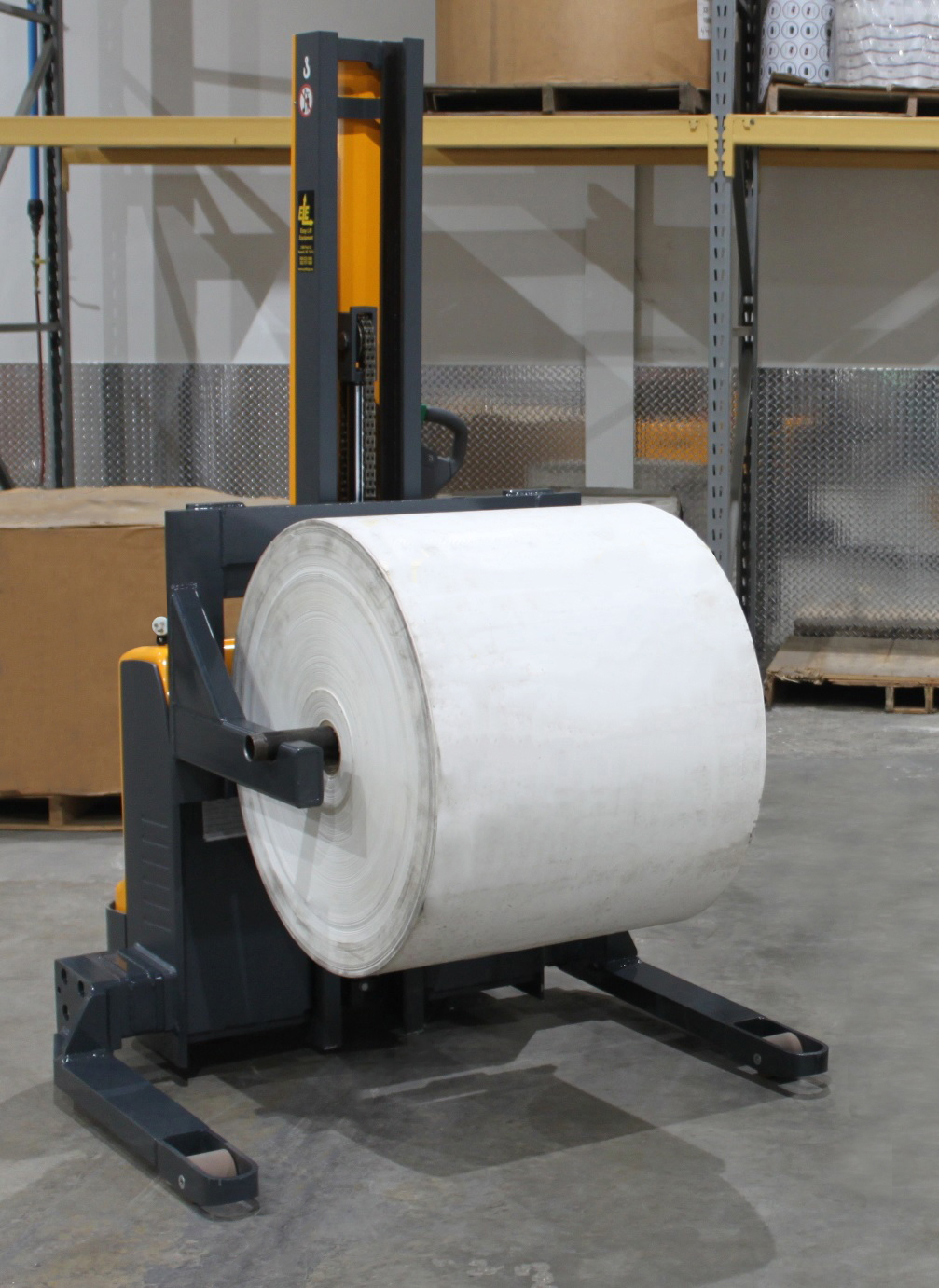

01-ERP-with-Roll-Arms-holding-a-roll-1

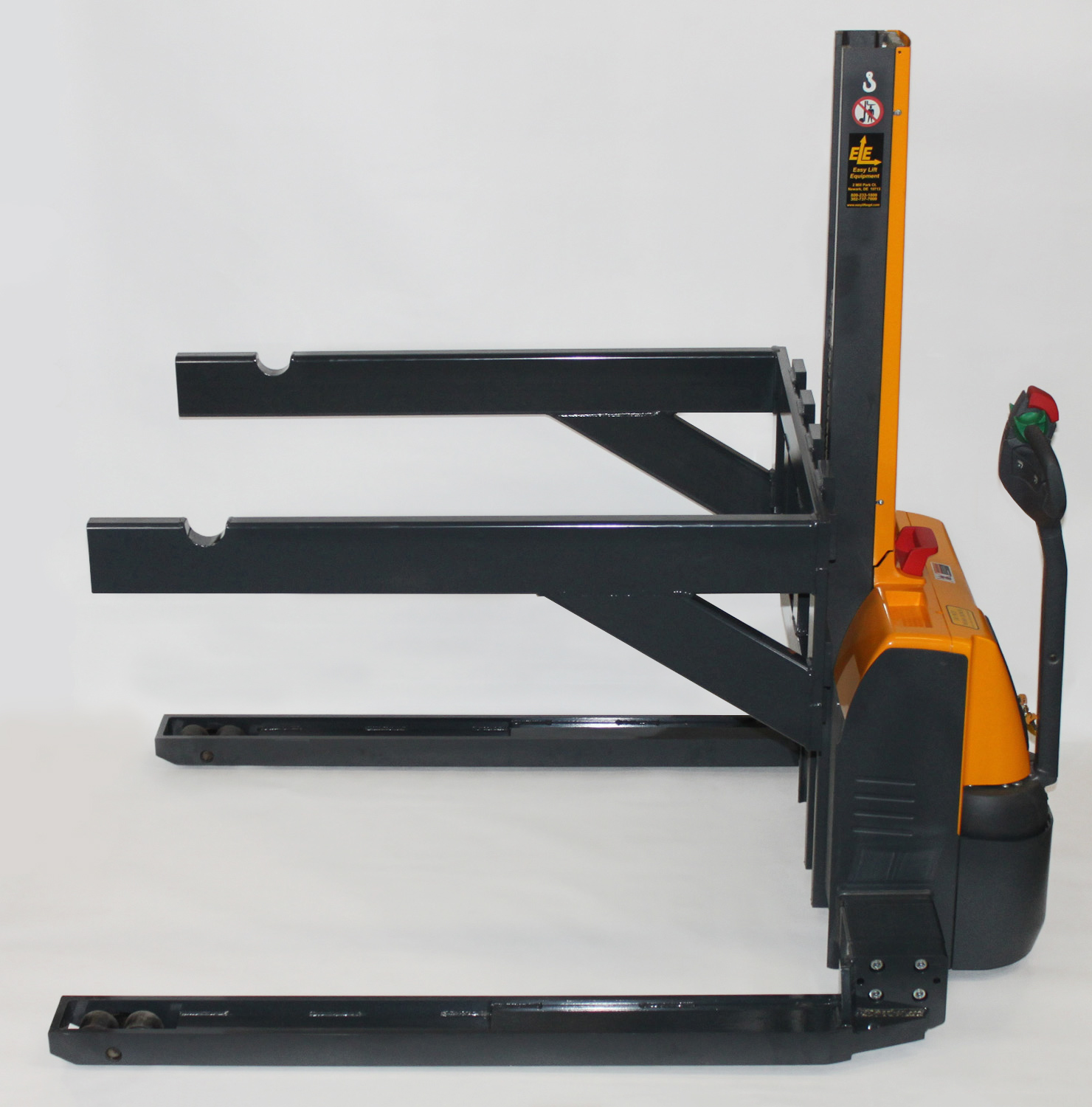

02-ERP-with-Roll-Arms-side-view-1

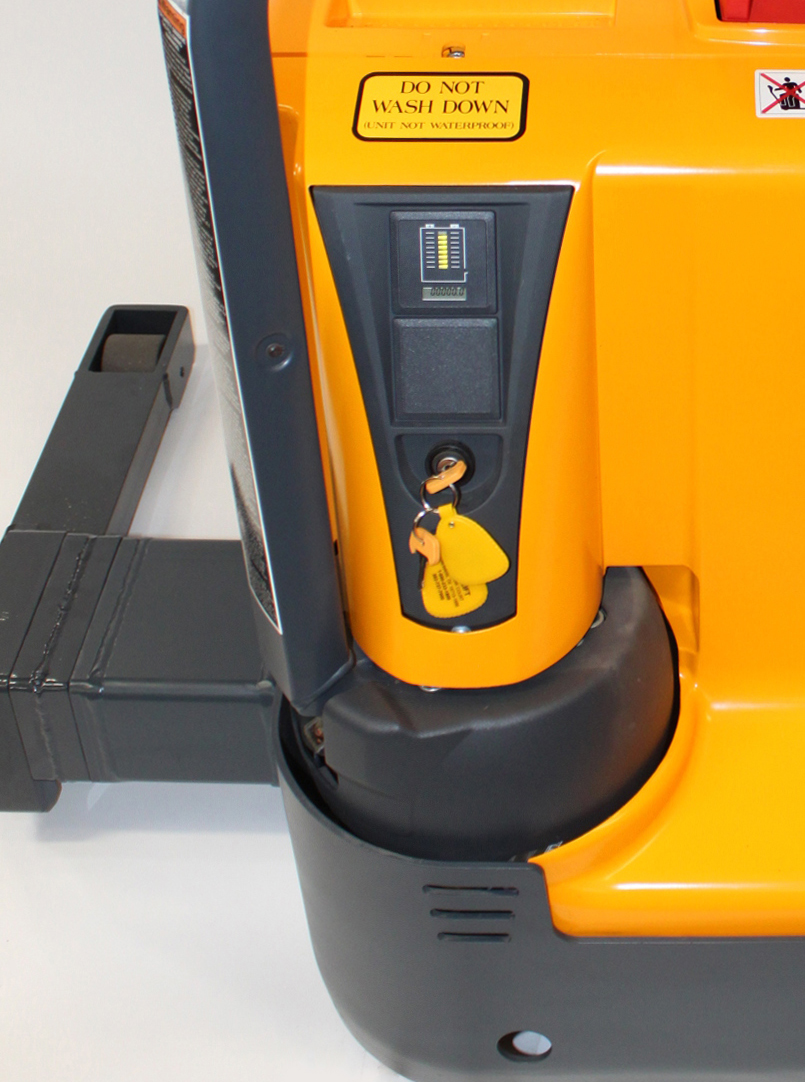

03-ERP-close-up-of-key-switch-and-candis-display-1
01-ERP-with-Roll-Arms-holding-a-roll-1
02-ERP-with-Roll-Arms-side-view-1
03-ERP-close-up-of-key-switch-and-candis-display-1

ERP with Roll Arms

These ERPs are self-propelled roll transporters with powered travel and lift and include Roll Arms (RA), which are carriage mounted and fixed and designed to lift a roll weighing up to 2,000 lbs. (907.2 kg), contingent on equipment configuration. Roll Arm lengths and straddle leg specifications are designed to meet the specific needs of a customer’s roll handling application and will have an impact on the overall weight capacity of the equipment. Contact Easy Lift Equipment for more details.

Brochure
Request a Quote
sddefault-34-e1763671437602

ERP Roll Transporter ERP200060-RF & ERP150060-RA – Easy Lift Equipment

video-union
Specifications
  • Self-propelled roll transporter with powered travel and lift
  • Capacity: Up to 2,000 lbs. (907.2 kg), contingent on equipment configuration.
  • (2) Roll Arms, which can be customized at time of order to suit specific customer needs
  • Single stage mast provides approximately 60” (152.4 cm) of lift from floor to top of roll arms, but may vary depending on specific customer needs
  • Includes two lowering speed control in handle for slower decent and easier placement of rolls onto converting machine shafts
  • High Efficiency 3-Phase AC drive motor with regenerative braking
  • Electronic Speed Controller
  • Maintenance-free (2) 12V, 70 AH battery pack (24-Volt system) with integrated 115V charger sealed within IP54-protected controller
  • Candis BDI – Enhanced Information display with lift interrupt, hour-meter and service code display
  • Drive Wheel: (1) polyurethane 9.1” (23.1 cm) diameter x 2.8” (7.1 cm) wide
  • Load Wheels:
    • (2) polyurethane 3” (7.6 cm) diameter x 2.8” (7.1 cm) wide”
    • (2) polyurethane stability casters 5.5” (14 cm) diameter x 2.1” (5.3 cm) wide
  • Safety: Horn, key on/off, safety-reversing switch in handle, rear stabilizers casters’
  • Finish: Gray powder coating with orange plastic access covers
  • Straddle Leg Base Frame: 42.4” (107.7 cm) ID
  • Base Dimensions: 57.5” (146 cm) Length x 31.5” (80 cm) rear width, 50.4” (128.1 cm) front width x 77.75” (197.5 cm) height
  • 1-year warranty
