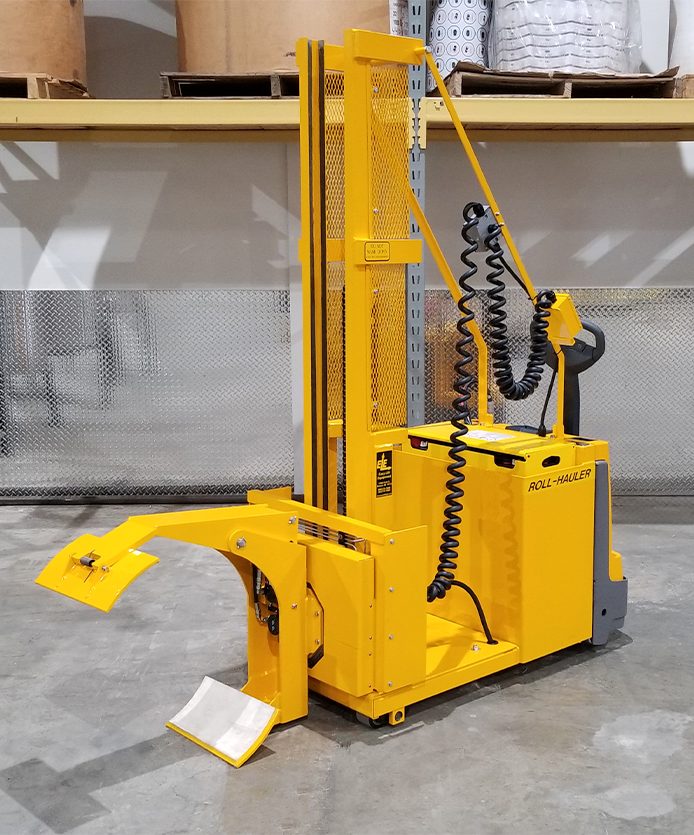

Roll-Hauler for handling a roll from 12” (30 cm) to 26” (66 cm) in diameter

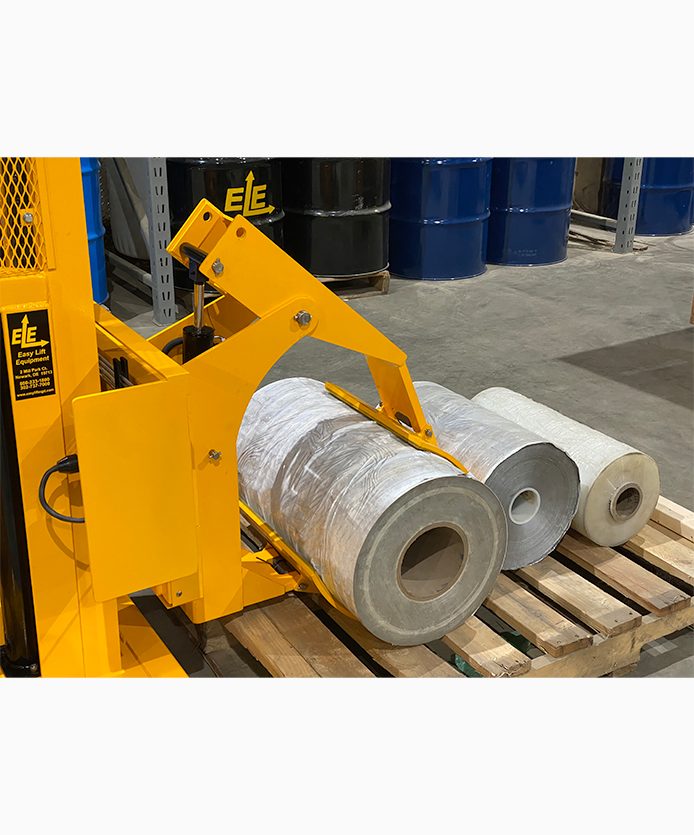

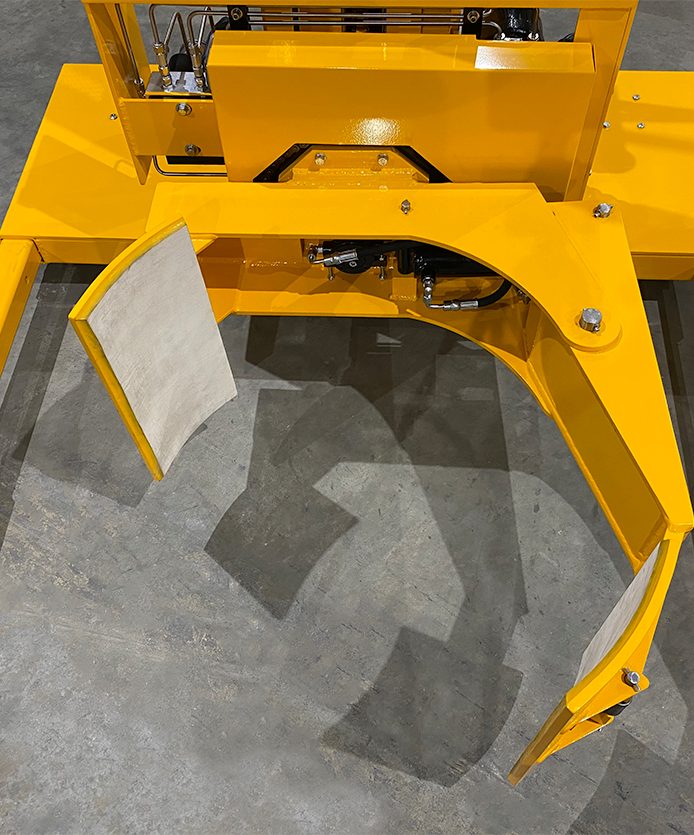

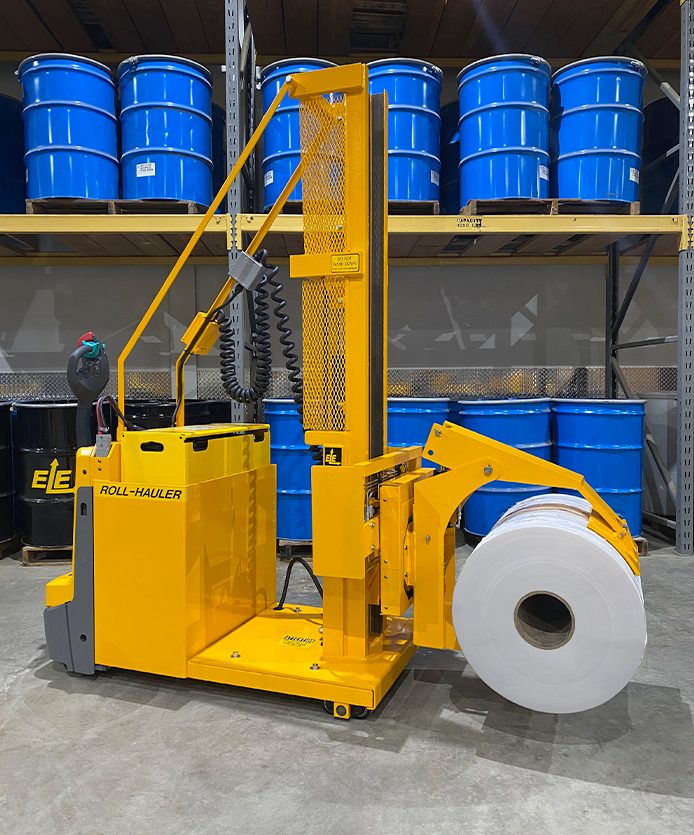

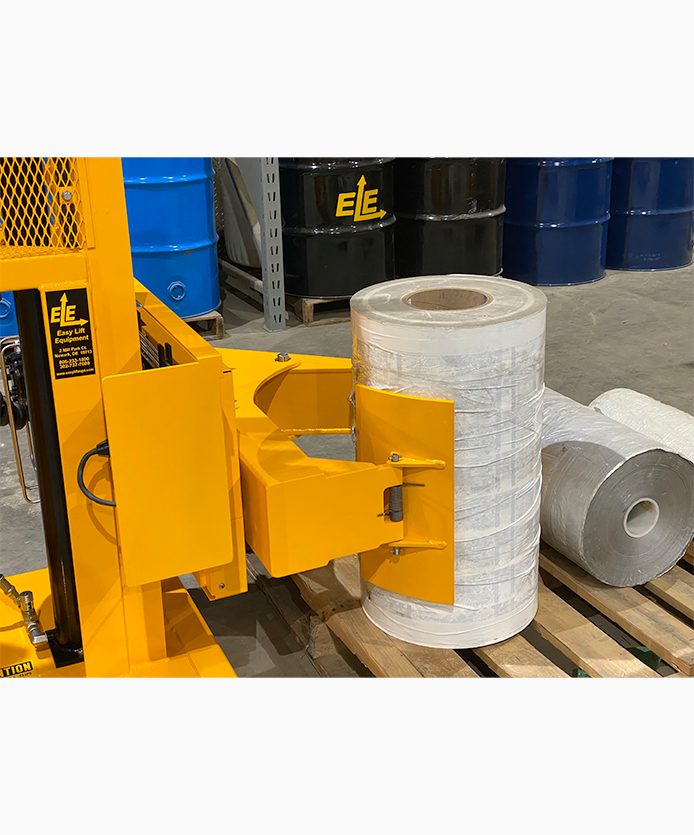

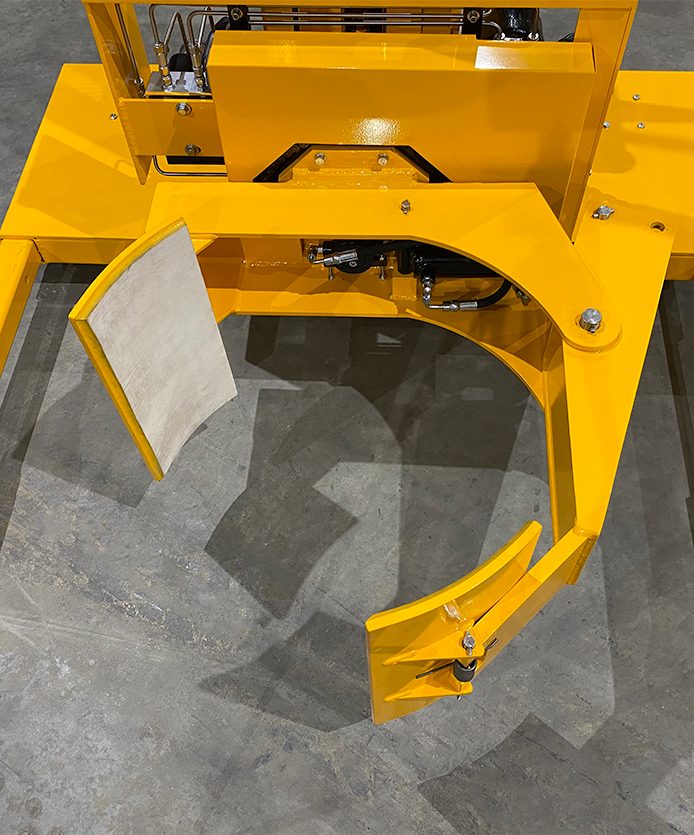

Roll-Haulers with an SRCR side rotation clamp are the most ergonomic equipment available for transporting, weighing, and handling a wide range of roll materials from 12” (30 cm) to 26” (66 cm) in diameter. Standard capacity is 800 lbs. (362.9 kg) but an increased capacity of 1,000 lbs. (453.6 kg) is also available, contingent on equipment configuration. Roll-Haulers are designed to work in tightly confined production areas and are completely counterbalanced, requiring no outriggers for stability, and are ideal for traveling over long distances. Roll-Haulers are designed to fit through a standard 30” (76 cm) wide x 84” (213 cm) high doorway. The large industrial battery provides enough power to run continuously for up to 16 hours on a single charge. The larger hydraulic clamping arm of the SRCR is equipped with two position settings, which allows the clamp to handle this wide range of roll diameters. The inner pin position handles 12” (30 cm) to 22” (56 cm) diameter rolls, while the outer pin position handles 18” (46 cm) to 26” (66 cm) diameter rolls. The most valuable feature of this clamp is its ability to grip and handle rolls from either a vertical or horizontal position. This feature is possible due to the SRCR clamp having a lower fixed arm and an upper hydraulic clamping arm. The lower arm acts as a scoop, allowing the clamp to get a clamping pad underneath a horizontal roll. The hydraulic arm then clamps down securing the roll for rotation or transport. The SRCR clamp features two 16” (41 cm) high clamping jaws, each lined with white SBR rubber to provide a durable yet secure non-marking surface to grip the roll. The 16” (41 cm) high clamping pads are ideal for clamping more sensitive roll materials, as they spread the clamping force over a larger surface area which helps to minimize excessive distorting or impressions to more fragile roll materials. For handling shorter width rolls, 8” (20.3 cm) high clamping pads are also available at time of order. This clamp rotates 360° endlessly, either left or right, at a controlled speed which enables accuracy when rotating a roll from vertical to horizontal positioning, or vice-versa. Available with either a single- or two-stage mast for lift heights from 48″ to 96″ (122 cm to 243.8 cm) of vertical lift.
