EasyLift Narrow Aisle Drum Transporter (SL) with Foot Pump Powered Lift

Back to EasyLift Manual Propelled Drum Transporters
flexible-hero-image

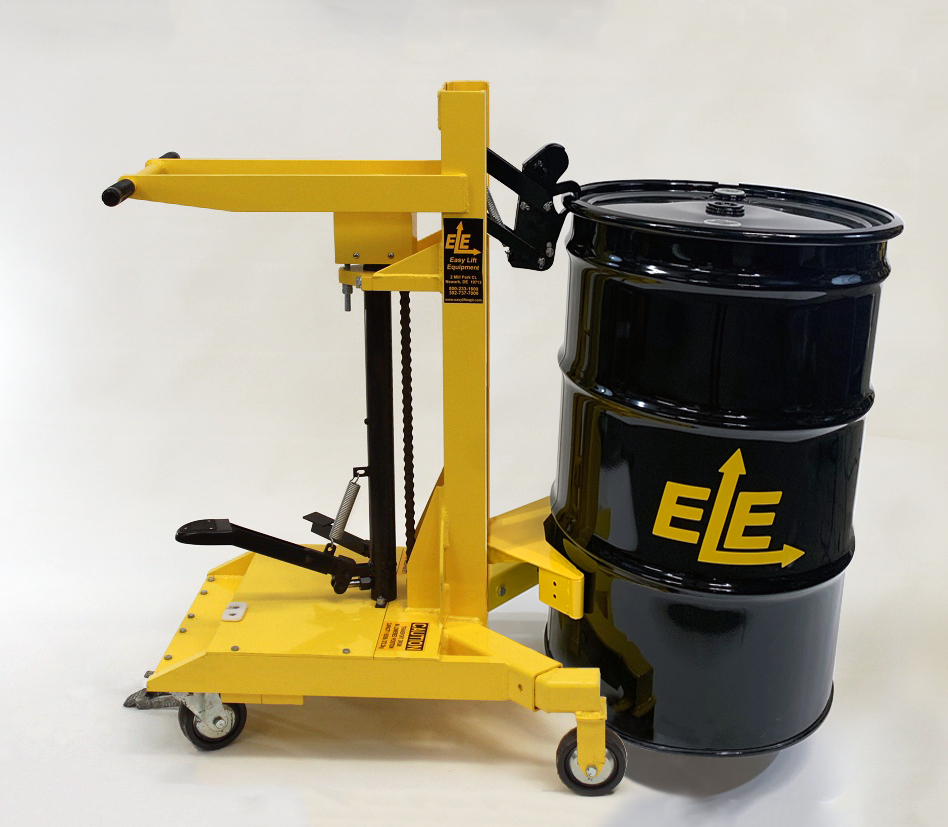

01-Ergo-SL-foot-pump-with-steel-drum

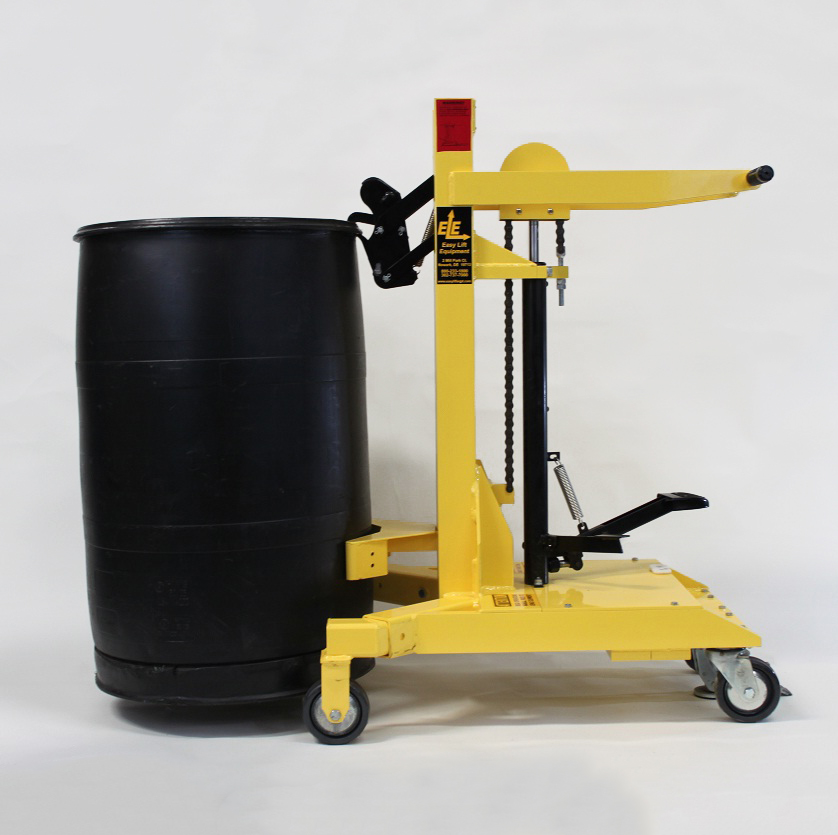

02-Ergo-SL-foot-pump-with-plastic-drum

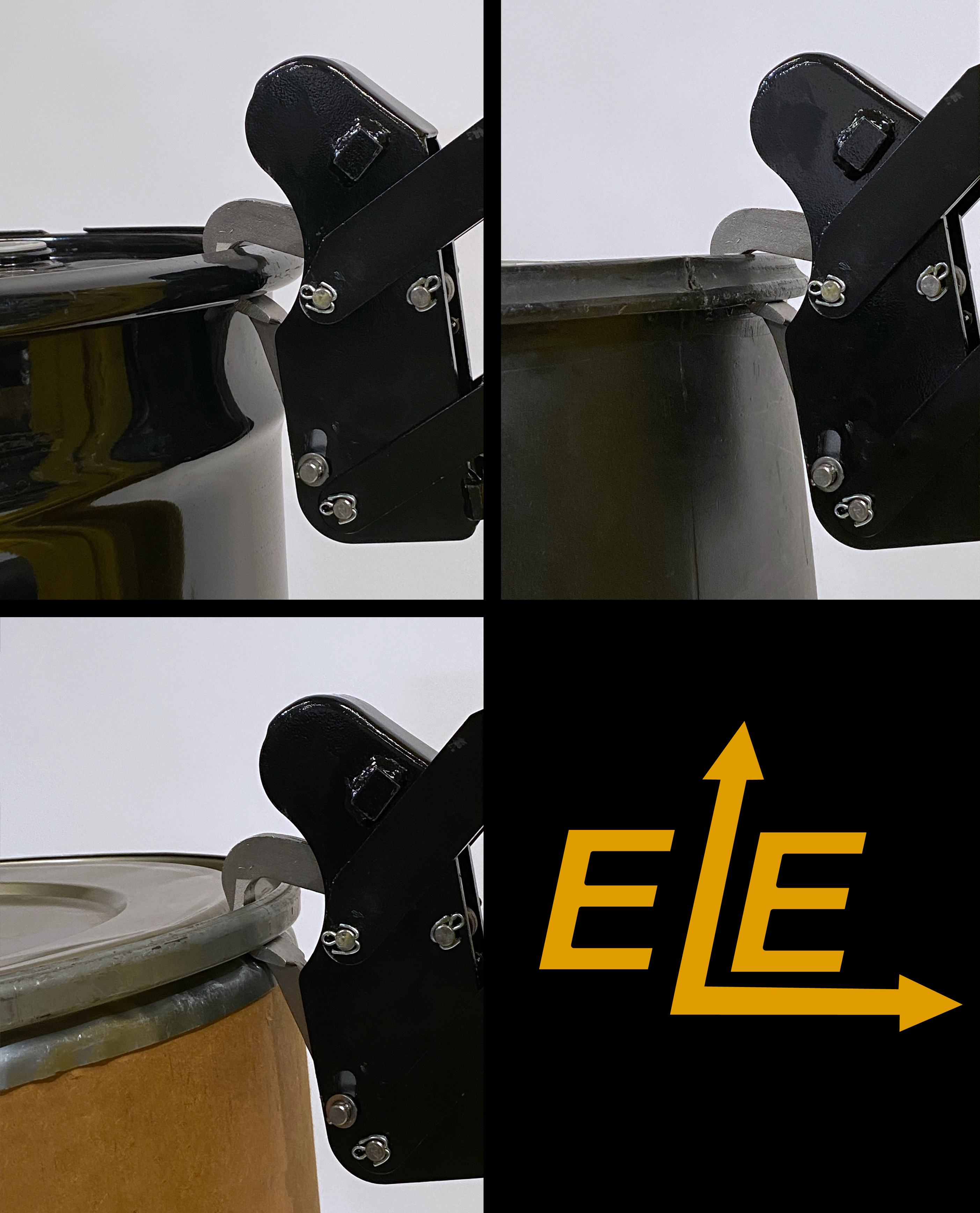

03-EG1-clamping-Steel-Plastic-and-Fiber-drums
01-Ergo-SL-foot-pump-with-steel-drum
02-Ergo-SL-foot-pump-with-plastic-drum
03-EG1-clamping-Steel-Plastic-and-Fiber-drums

EasyLift Narrow Aisle Drum Transporter

with Manual Powered (Foot Pump) Lift

Finally! A simple, safe and ergonomic method that addresses the risks in manual handling in moving, lifting and lowering drums without a forklift – all while the drum remains completely in the vertical position. Eliminate strained backs, pinched fingers and the risk of injuries caused by manhandling drums.

The EasyLift Narrow Aisle Drum Transporter (27” /68.6 cm overall width) can safely and easily pick up a steel, fiber, or plastic chimed drum. Raising or lowering to a full 20” (50.8cm) with a convenient foot pedal ensures both easy lifting and lowering of drums at up to 1” per stroke all while the drum remains completely in the vertical position. Eliminate strained backs, pinched fingers and the risk of injuries caused by manhandling drums.

Brochure Manual Videos Diagram
Request a Quote
EasyLift-SL-Narrow-Aisle-Drum-Transporter-with-Scale-Easy-Lift-Equipment-0-10-screenshot-min

EasyLift SL Narrow Aisle Drum Transporter with Scale – Easy Lift Equipment

Easy Lift Equipment SL Narrow Aisle Drum-Transporters are the safe and ergonomic solution for picking and transporting drums from the floor or a pallet.

video-union
Specifications
Additional Options
Videos
  • Manual propelled narrow aisle drum transporter
  • Single stage mast provides 20” (50.8cm) vertical drum lift height by means of foot pump at the rate of .75” (1.9cm) per stoke
  • Convenient foot pedals ensures both easy lifting and lowering of a drum.
  • Standard capacity of 600 lbs. (272kg), with options to increase to 800 lbs. (363 kg) based on equipment configuration
  • EG1 single clamping mechanism for handling steel, fiber or plastic chimed drum
  • Darcor® ergonomic non-marking casters 5” x 2”: (2) swivel, (2) rigid
  • Ergonomic step-down foot floor lock
  • Finish: Safety yellow powder coating
  • 1-year warranty
  • Made in USA

EG2L Double Clamping Mechanism for handling a steel, plastic, or fiber chimed drum (minimum 17” diameter, designed for working with an open top drum or plastic/fiber drum over 600 lbs.) in lieu of EG1 Single Clamping Mechanism

01-Ergo-SL-with-EG2L-without-drum

EG1 Single clamping mechanism with spark resistant clamp for handling a steel or plastic chimed drum (all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle) in lieu of EG1.

01-Ergo-SL-foot-pump-with-EG1-SRC-option-and-steel-drum

EG2L Double clamping mechanism with spark resistant clamp for handling a steel, plastic, or fiber chimed drum (minimum 17” diameter, designed for working with an open top drum or plastic/fiber drum, all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle) in lieu of EG1

05-Ergo-SL-foot-pump-with-EG2L-SRC-option-steel-drum

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid, and EG1 Single clamping mechanism with spark resistant clamp

01-Ergo-SL-foot-pump-with-FDA-compliant-powder

Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

02-Ergo-SL-foot-pump-with-full-304-Stainless-Steel

Non-Intrinsically Safe Scale System: Doran 7000XL Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

01-Ergo-SL-with-Non-Intrinsically-Safe-Scale

Intrinsically Safe Scale System: Rice Lake 882IS Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, external battery, external charger, mounting and calibration. FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4

03-Ergo-SL-with-Intrinsically-Safe-Scale

Narrow Aisle Drum Transporters offer increased lift heights of 40” (101.6 cm) or 60” (152.4 cm) above floor level for double or triple stacking drums, or the ability to pick and place drums to and from shelves.

(*Max capacity of 600 lbs. (270kg) with increased lift height of 60” (152.4cm), 40” lift has a 74.75” (189.9cm) lowered height, 60” lift has a 92.75” (235.6cm) lowered height)

02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1
