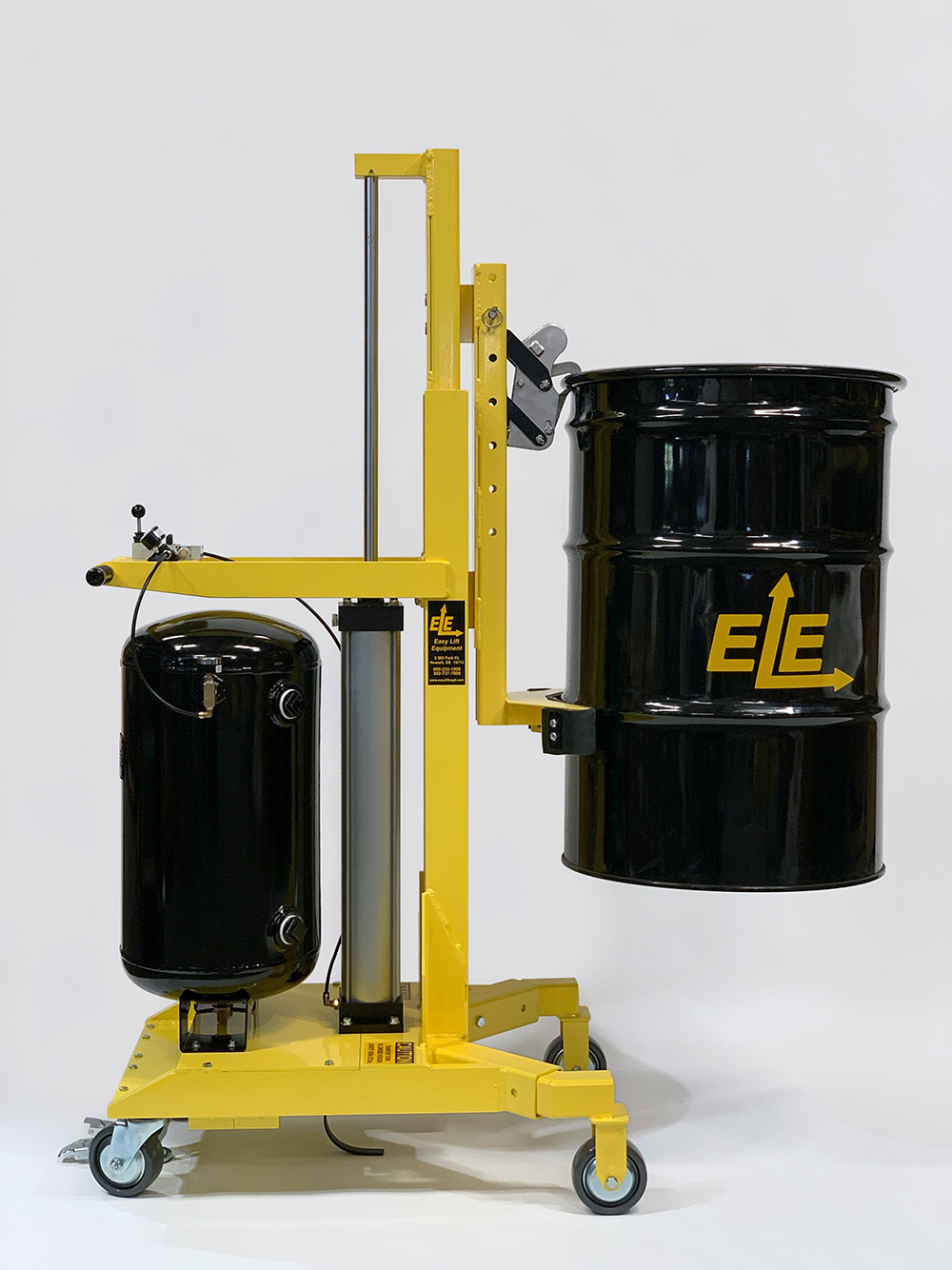

01-Ergo-SL-Air-with-steel-drum

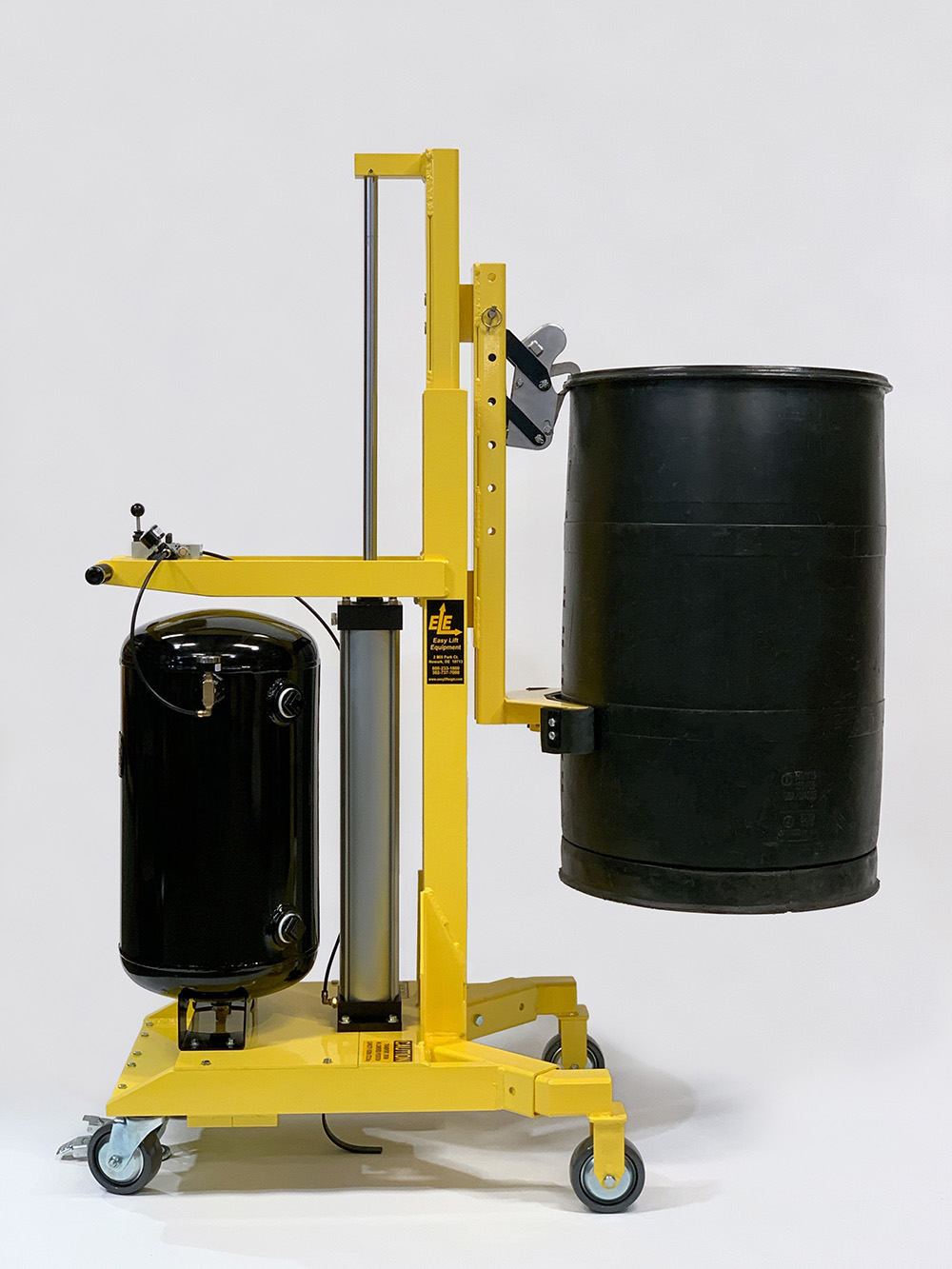

02-Ergo-SL-Air-with-plastic-drum

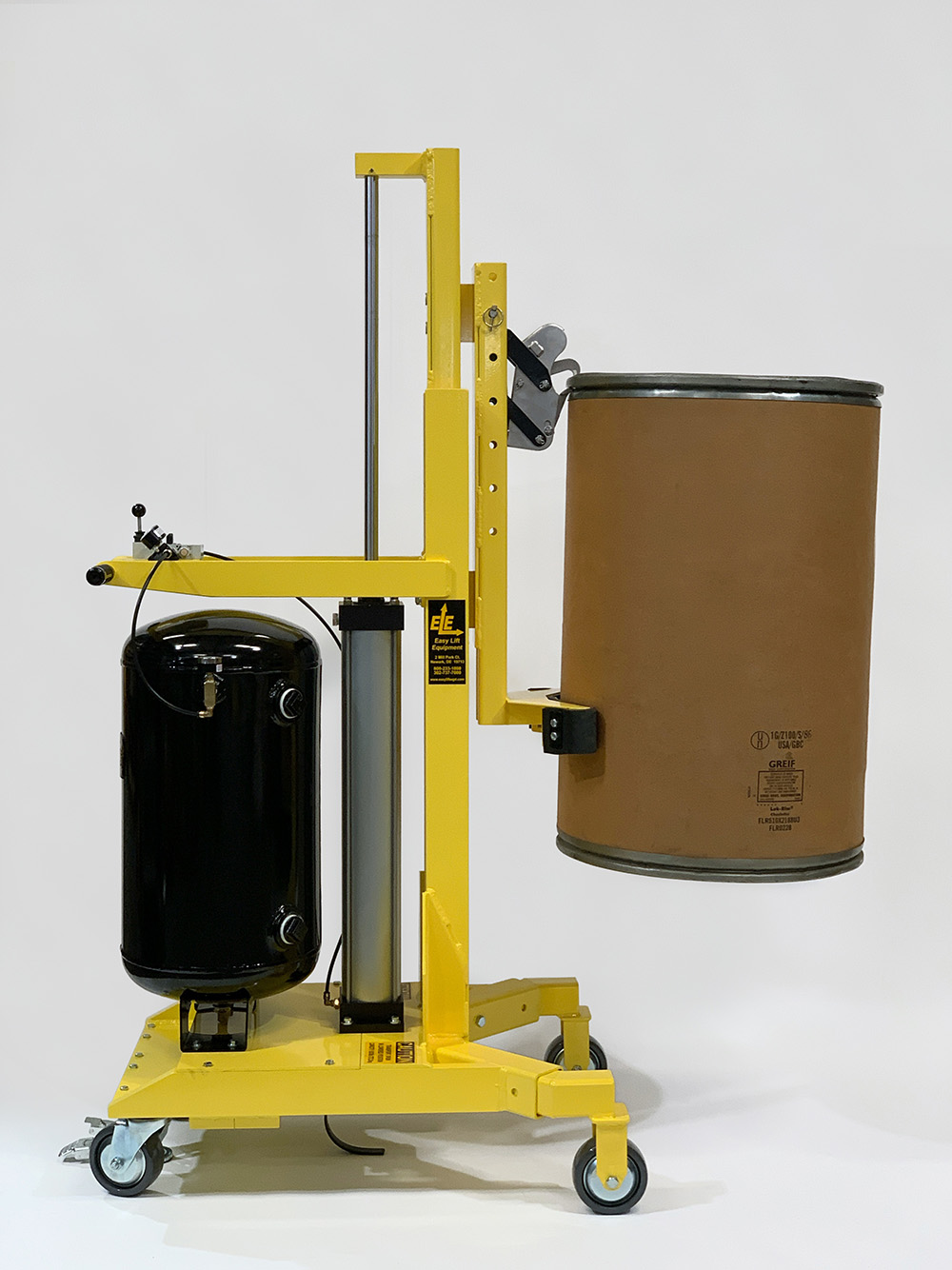

03-Ergo-SL-Air-with-fiber-drum

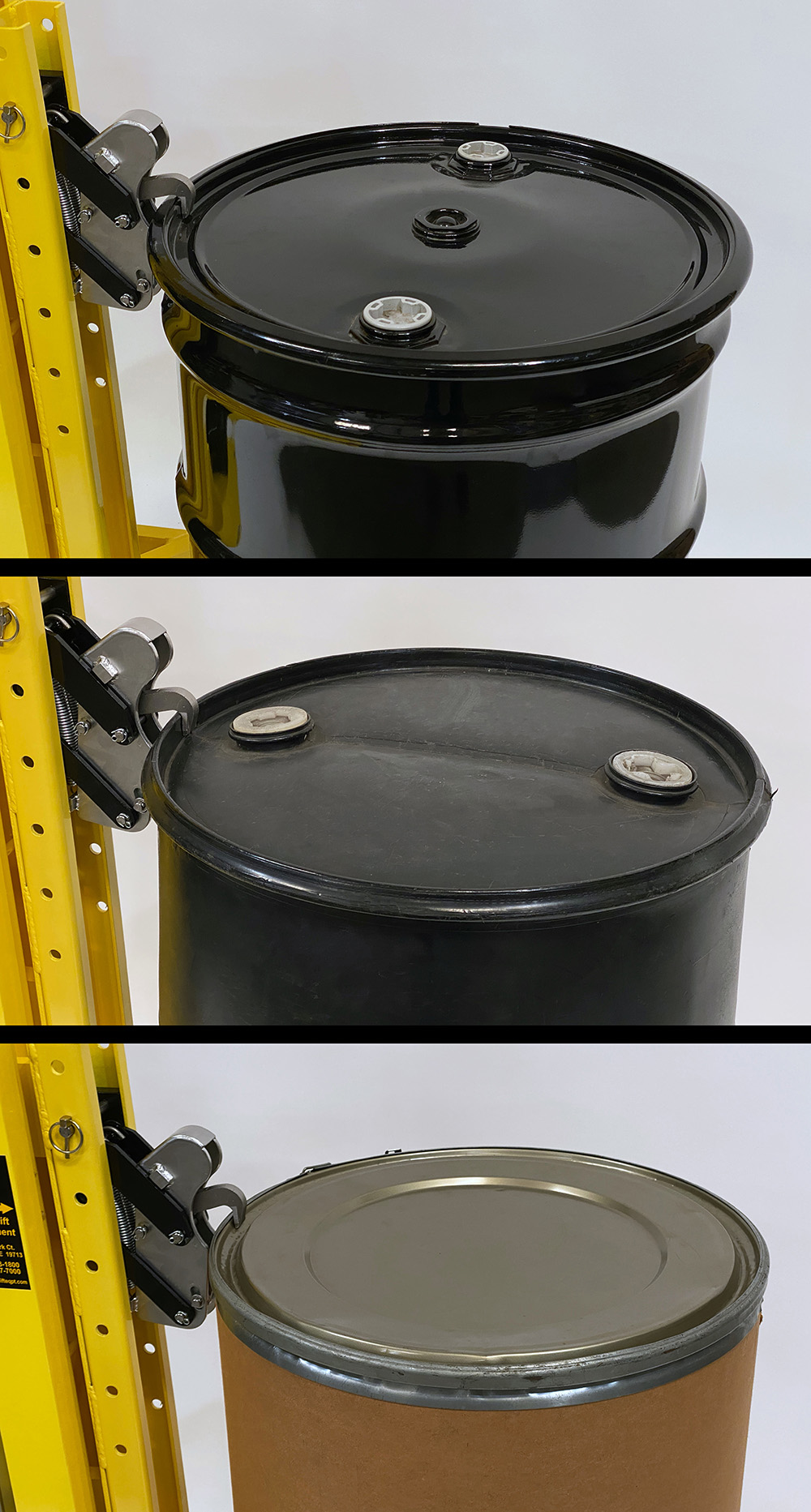

04-Ergo-SL-Air-EG1SRC-with-steel-plastic-and-fiber-drums

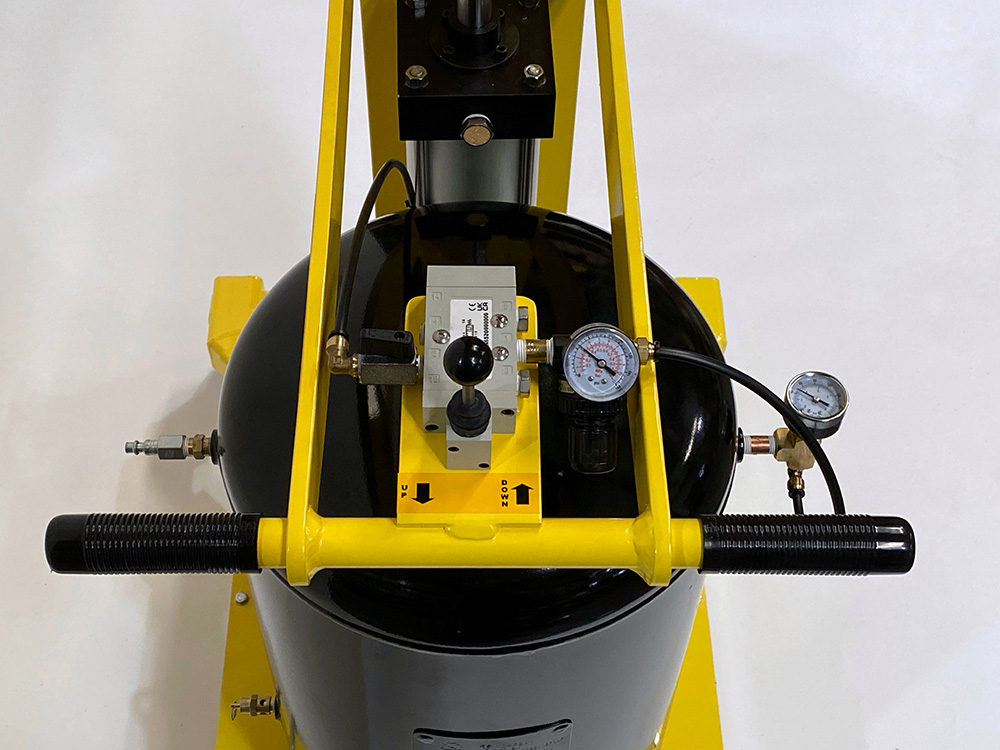

05-Ergo-SL-Air-Joystick-Controls

EasyLift Narrow Aisle Drum Transporter

with Air Powered Lift

Finally! A simple, safe, and ergonomic solution for moving, lifting, and lowering a drum without a forklift, while keeping the drum fully upright at all times. Reduce the risks associated with manual drum handling, eliminate back strain and pinched fingers, and help prevent injuries caused by manually maneuvering heavy drums.

EasyLift Narrow Aisle Drum-Transporter (27” /68.6 cm overall width) with pneumatic lift is ideal for high-volume drum handling in areas where DC powered equipment is not permitted. These models are provided with an air tank that can be filled in less than a minute, providing roughly two dozen lifts per charge of the air tank. Lift and lower functions are controlled by using a simple joystick, raising or lowering to a full 20” (50.8cm). All pneumatic lift models include a spark resistant clamping mechanism and anti-static grounding components. Pneumatic lift models are ideal for use in food and pharmaceutical applications as they contain no hydraulic fluids and are virtually maintenance-free.

Request A Quote
EasyLift-SL-Narrow-Aisle-Drum-Transporter-with-Air-Powered-Lift-Easy-Lift-Equipment-0-1-screenshot-min

EasyLift SL Narrow Aisle Drum Transporter with Air Powered Lift – Easy Lift Equipment

Easy Lift Equipment’s Narrow Aisle Drum-Transporter with Air Powered Lift is the best choice in areas where DC powered equipment is not permitted.

video-union
Specifications
Additional Options
Videos
  • Manual propelled narrow aisle drum transporter
  • Single stage mast provides 20” (50.8cm) vertical drum lift height
  • Pneumatic Lift with air tank, if recharged at 120 psi, a 600 lb. drum can be lifted 8” then lowered approximately 20 times per charge. The air tank is provided with a male end quick disconnect. Customer must supply a female quick-disconnect on their airline. Drum weights, available air pressure, and the distance the drum is elevated will vary the number of lifts provided by the air tank.
  • Standard capacity of 600 lbs. (272kg), with options to increase to 800 lbs. (363kg) based on equipment configuration
  • EG1 single clamping mechanism with spark resistant clamp for handling a steel, fiber, or plastic chimed drum (all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle)
  • Darcor® ergonomic non-marking casters 5” x 2”: (2) swivel, (2) rigid
  • Ergonomic step-down foot floor lock
  • Finish: Safety yellow powder coating
  • 1-year warranty
  • Made in USA

Easy Lift Equipment’s pneumatic and air-powered models are built with anti-static and non-sparking components. These units have not been submitted for third-party certification and contain no electrical components, except for the optional scale system, which carries its own independent approval.

EG2L Double clamping mechanism with spark resistant clamp for handling a steel, plastic, or fiber chimed drum (minimum 17” diameter, designed for working with an open top drum or plastic/fiber drum, all metal surfaces including clamping jaws which contact the drum to be stainless steel, includes anti-static grounding strap and a rubber belt attached to drum cradle) in lieu of EG1SRC

01-EG2LDCMSRC-with-steel-plastic-and-fiber-drums-min-161x300-1

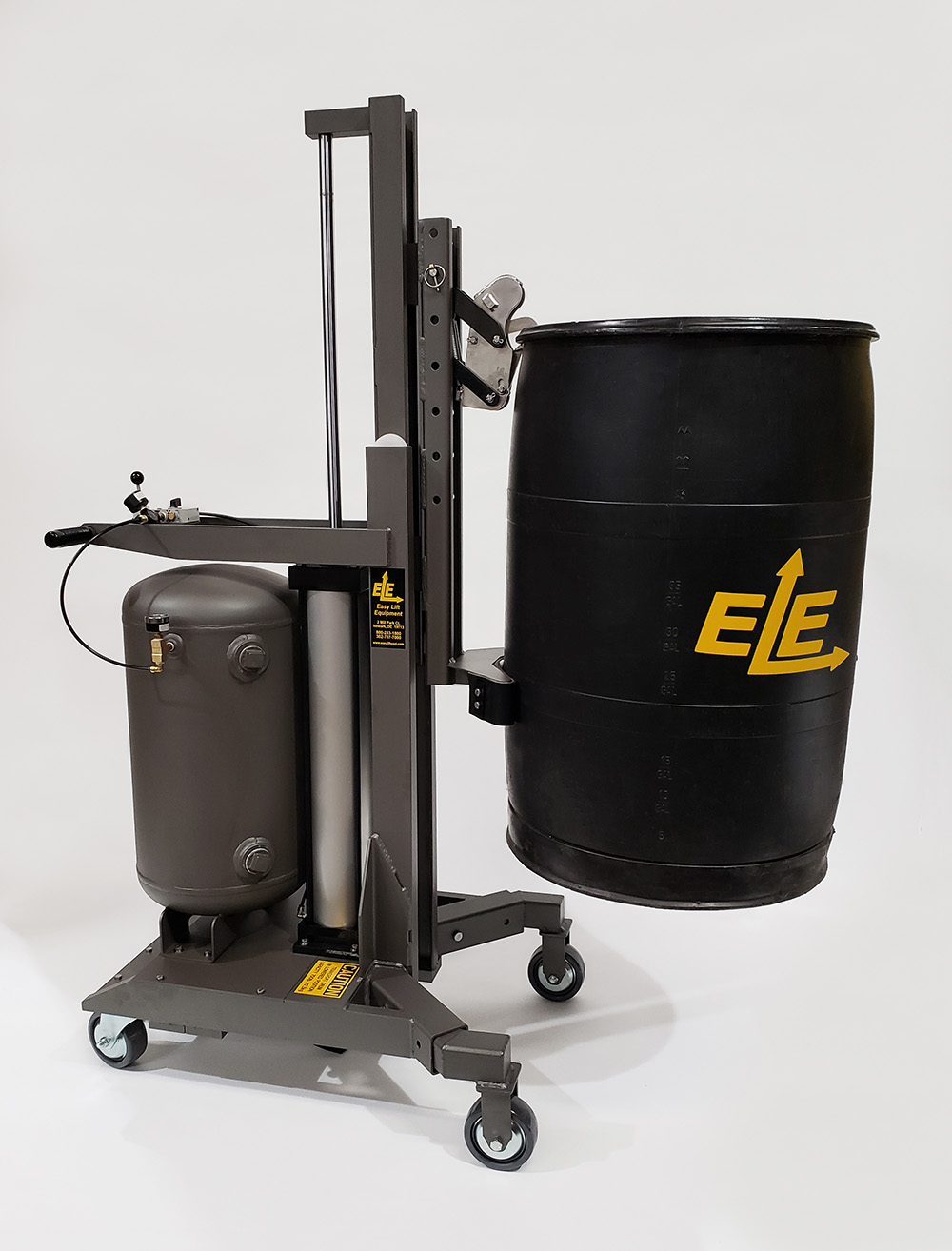

“FDA” Compliant Metallic Gray Powder Coating with coated lift chains, food grade grease & hydraulic fluid, and EG1 Single clamping mechanism with spark resistant clamp

01-Ergo-SL-Air-with-FDA-compliant-powder-coating

Fabricate base frame and mast in 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components). *Stainless-Steel construction is stitch welded, not continuous, and finished by glass bead blasting to provide a #4 brush finish with a gray matte uniform surface. Stainless-Steel units are not wash down safe. Stainless-Steel Construction is not available for trial, return, exchange, or cancellation.

02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

Non-Intrinsically Safe Scale System: Doran 7000XL Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration.

02-NO-PHOTO-IMAGE-COMING-SOON-225x300-1

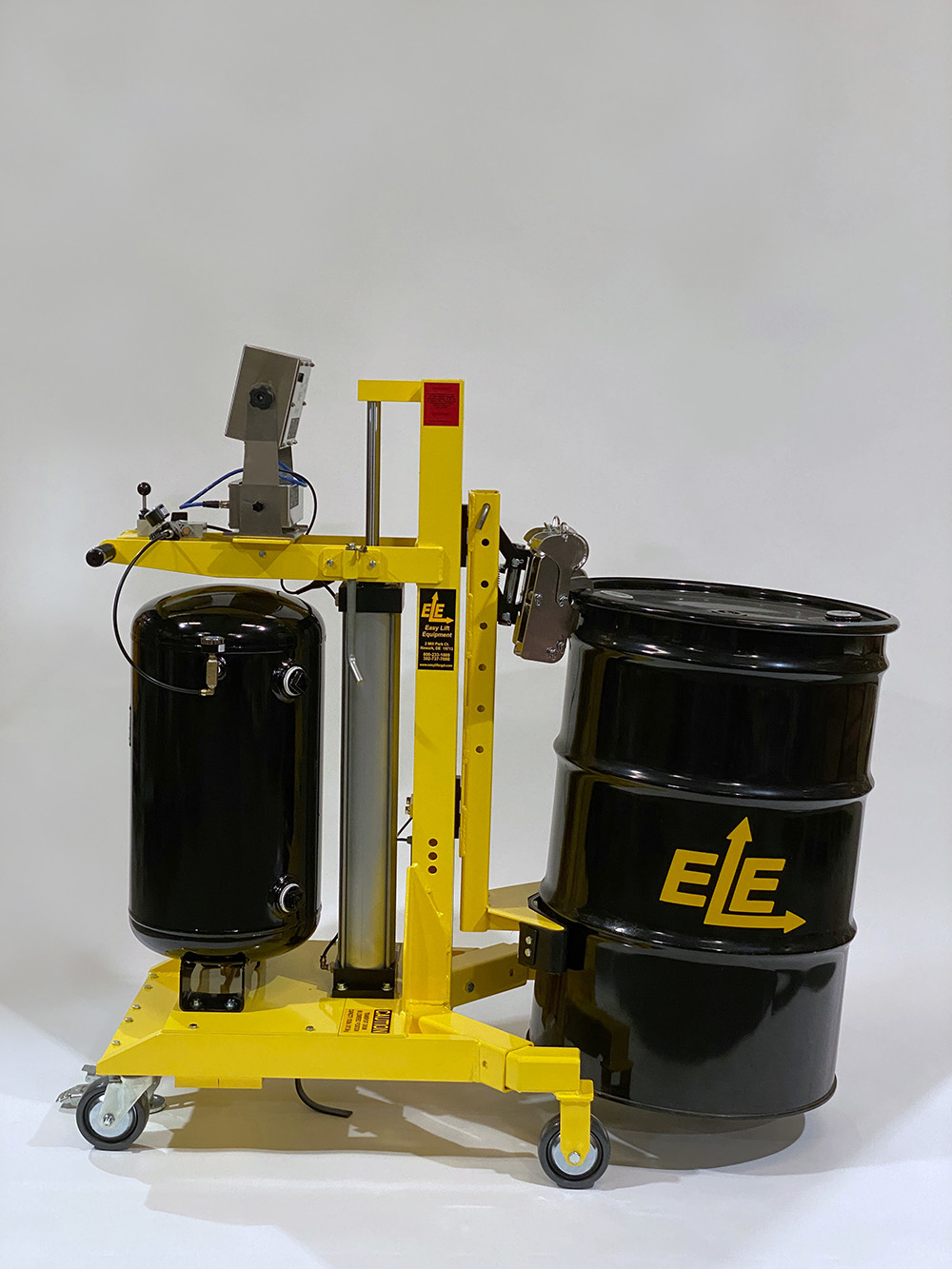

Intrinsically Safe Scale System: Rice Lake 882IS Indicator for checking weight or performing inventory. Includes all wiring, two stainless steel load cells, external battery, external charger, mounting and calibration. FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4

02-SL-Air-with-Intrinsically-Safe-Scale

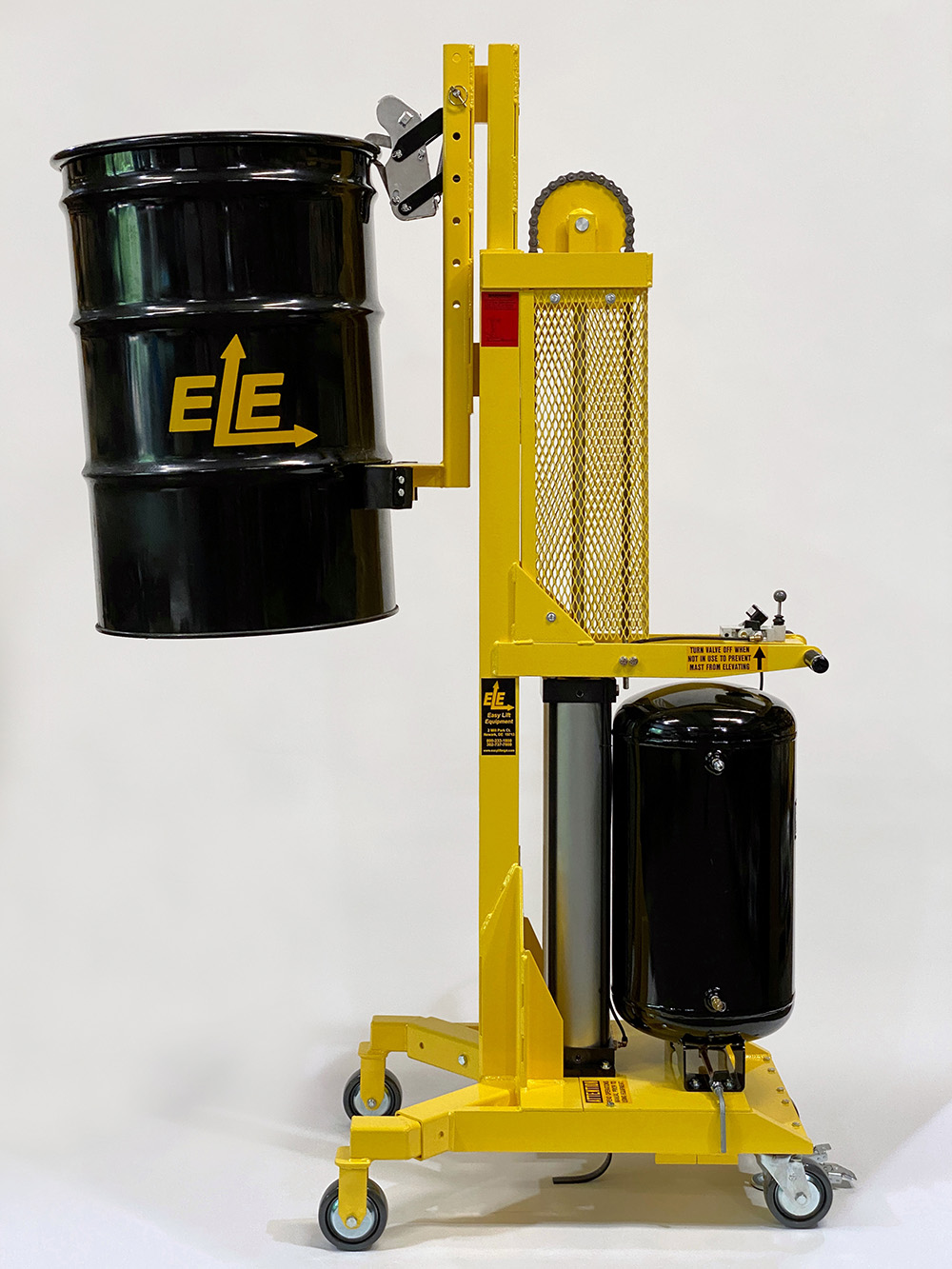

Narrow Aisle Drum Transporters offer increased lift heights of 40” (101.6 cm) or 60” (152.4 cm) above floor level for double or triple stacking drums, or the ability to pick and place drums to and from shelves.
(*Max capacity of 600 lbs. (270kg) with increased lift height of 60” (152.4cm), 40” lift has a 74.75” (189.9cm) lowered height, 60” lift has a 92.75” (235.6cm) lowered height)

01-Ergo-SL-Air-with-increased-lift-height
