Drum-Hauler® with SR Clamp

Back to Drum-Haulers® with Lift, Clamp & Side Rotation
flexible-hero-image
01-Drum-Hauler-with-Single-Stage-and-SR-Clamp-with-drum
02-Drum-Hauler-with-Single-Stage-and-SR-Clamp-pouring-drum
03-DH-with-SR-Clamp-showing-closeup-of-Ratchet-Straps-min
04-DH-with-SR-Clamp-without-a-drum-min
05-DH-with-SR-Clamp-Control-Box-min

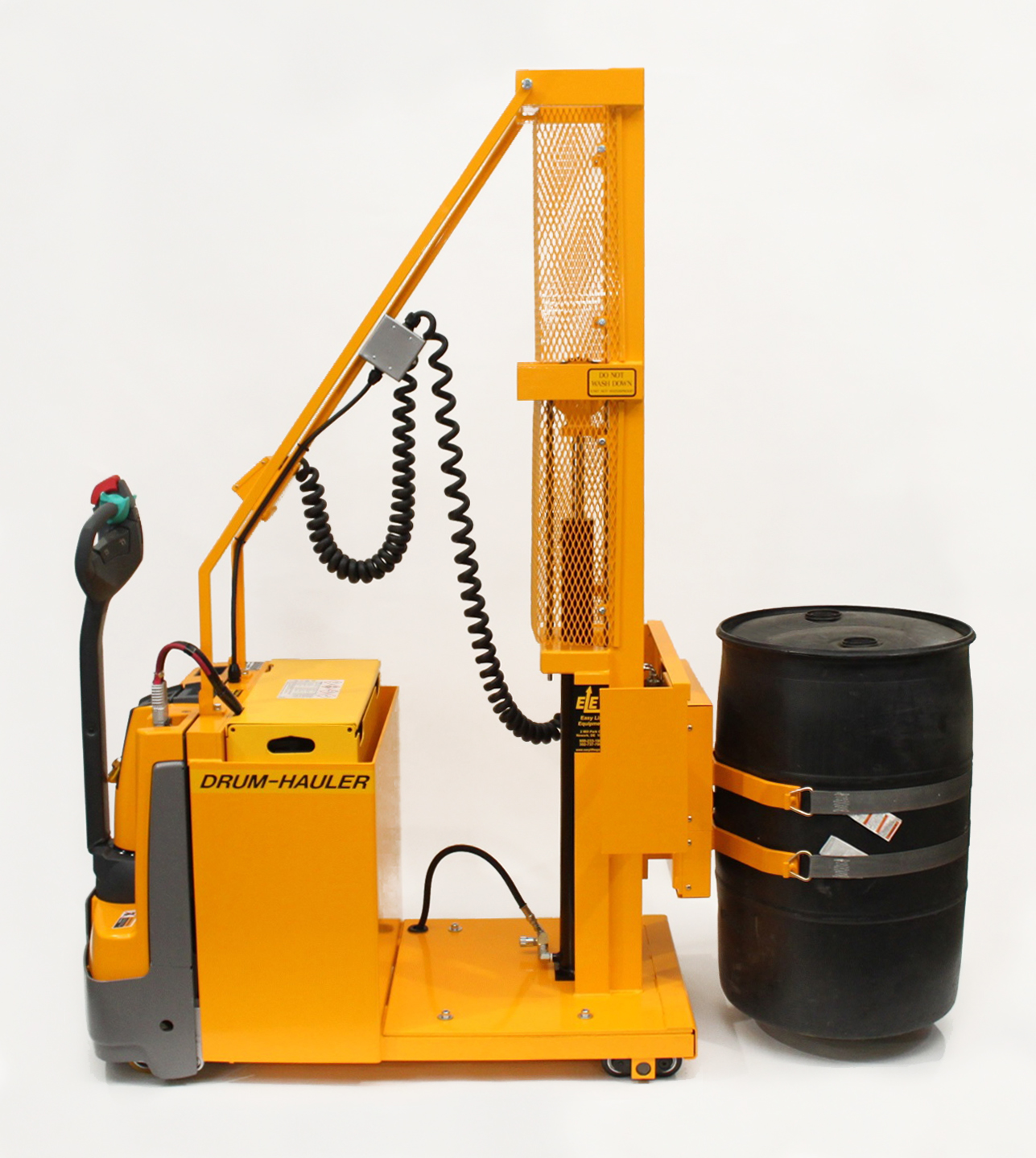

01-Drum-Hauler-with-Single-Stage-and-SR-Clamp-with-drum

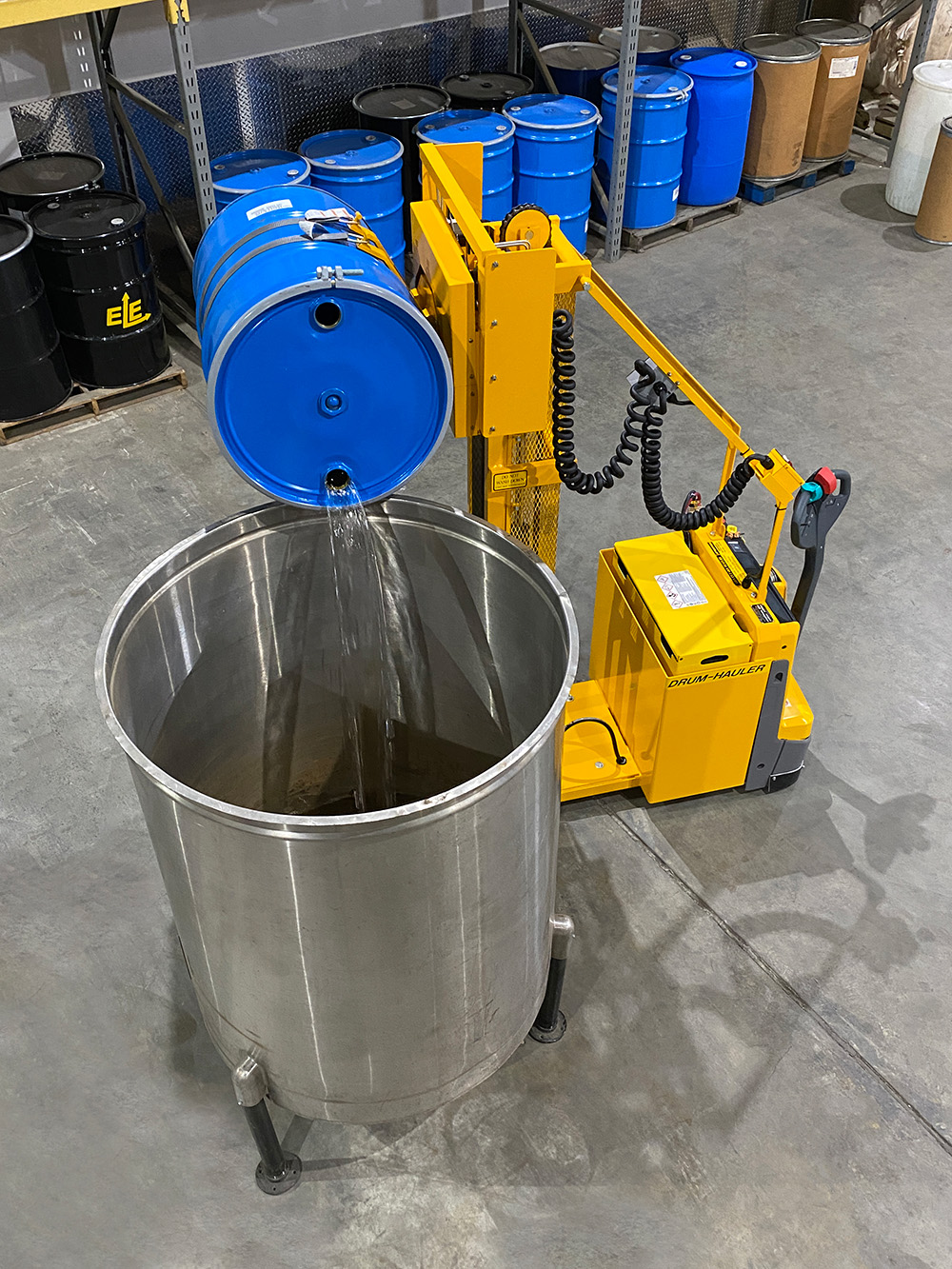

02-Drum-Hauler-with-Single-Stage-and-SR-Clamp-pouring-drum

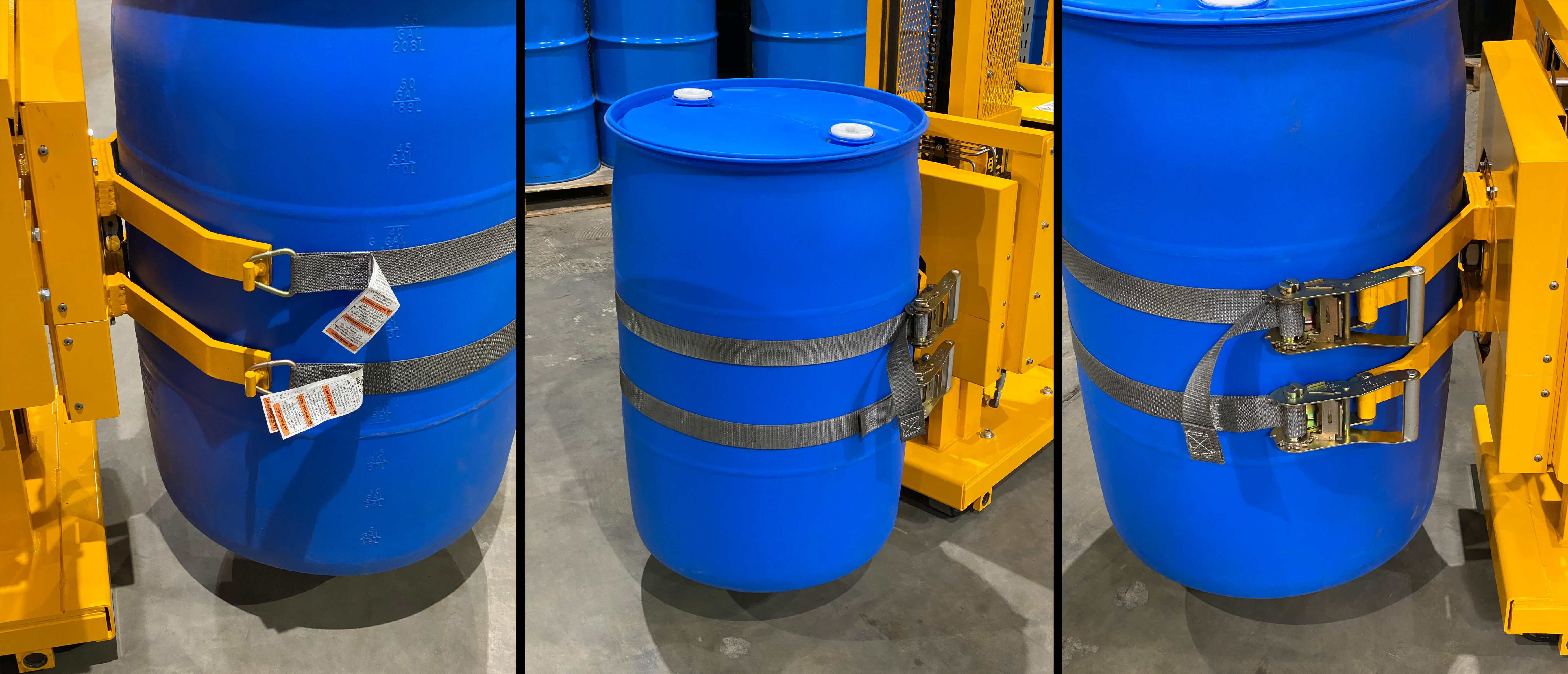

03-DH-with-SR-Clamp-showing-closeup-of-Ratchet-Straps-min

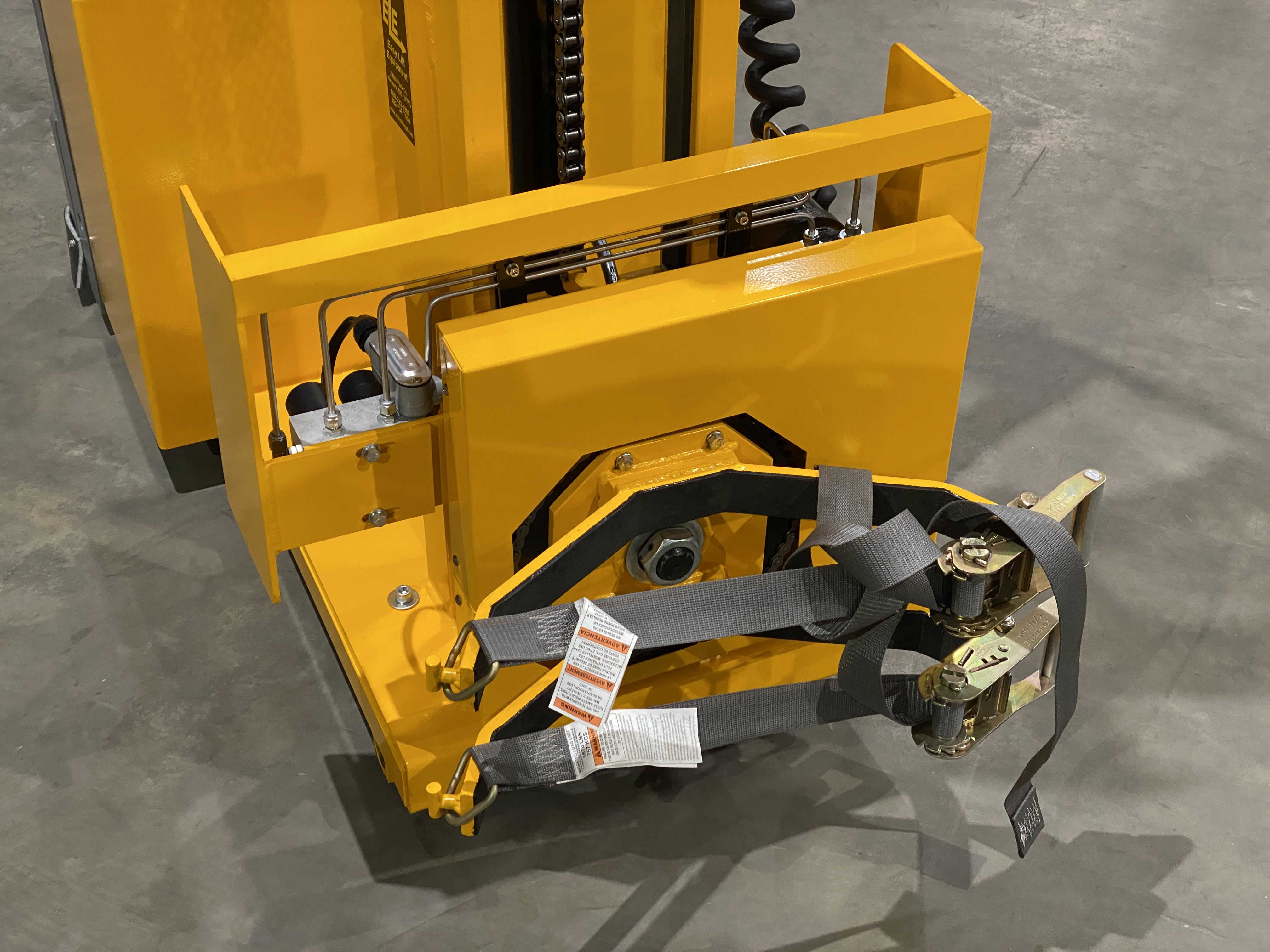

04-DH-with-SR-Clamp-without-a-drum-min
05-DH-with-SR-Clamp-Control-Box-min
EE-symbol CE-symbol
EE-symbol CE-symbol

Drum-Haulers®

for Lift, Travel & Side Rotation

Drum-Haulers® with SR (Strap Rotator) side rotation clamp are the most ergonomic equipment available for transporting, weighing, and dispensing products from a plastic, fiber, or steel drum. Drum-Haulers are designed to work in tightly confined production areas and are completely counterbalanced, requiring no outriggers for stability, and are ideal for traveling over long distances. Drum-Haulers are designed to fit through a standard 30” (76 cm) wide x 84” (213 cm) high doorway. The large industrial battery provides enough power to run continuously for up to 16 hours on a single charge. Drum-Haulers with lift, clamp & SR clamp feature two ratchet straps for handling a steel, plastic, or fiber drum from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing.

  • Standard capacity is 800 lbs. (362.9 kg) but, can be built to handle up to 1,200 lbs. (540 kg) based on equipment configuration.
  • Available with either a single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift.
Videos Brochure
Request A Quote
DH-with-SR-Clamp-video-thumbnail

Drum-Hauler® with SR Clamp – Easy Lift Equipment

video-union
Specifications
Additional Options
Videos
  • Powered Drum Transporter with Powered: travel, lift & rotation
  • Capacity: 800 lbs. (360kg)
  • Single- or two-stage mast for lift heights from 48″ to 144″ (122 cm to 366 cm) of lift from floor to bottom of a 34.5” (87.6 cm) tall drum in the vertical position
  • SR clamp with two ratchet straps for handling a steel, plastic, or fiber drum from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° either left or right for dispensing
  • Provides approximately 10” (25.4 cm) of reach from the front of the base to the back of the drum

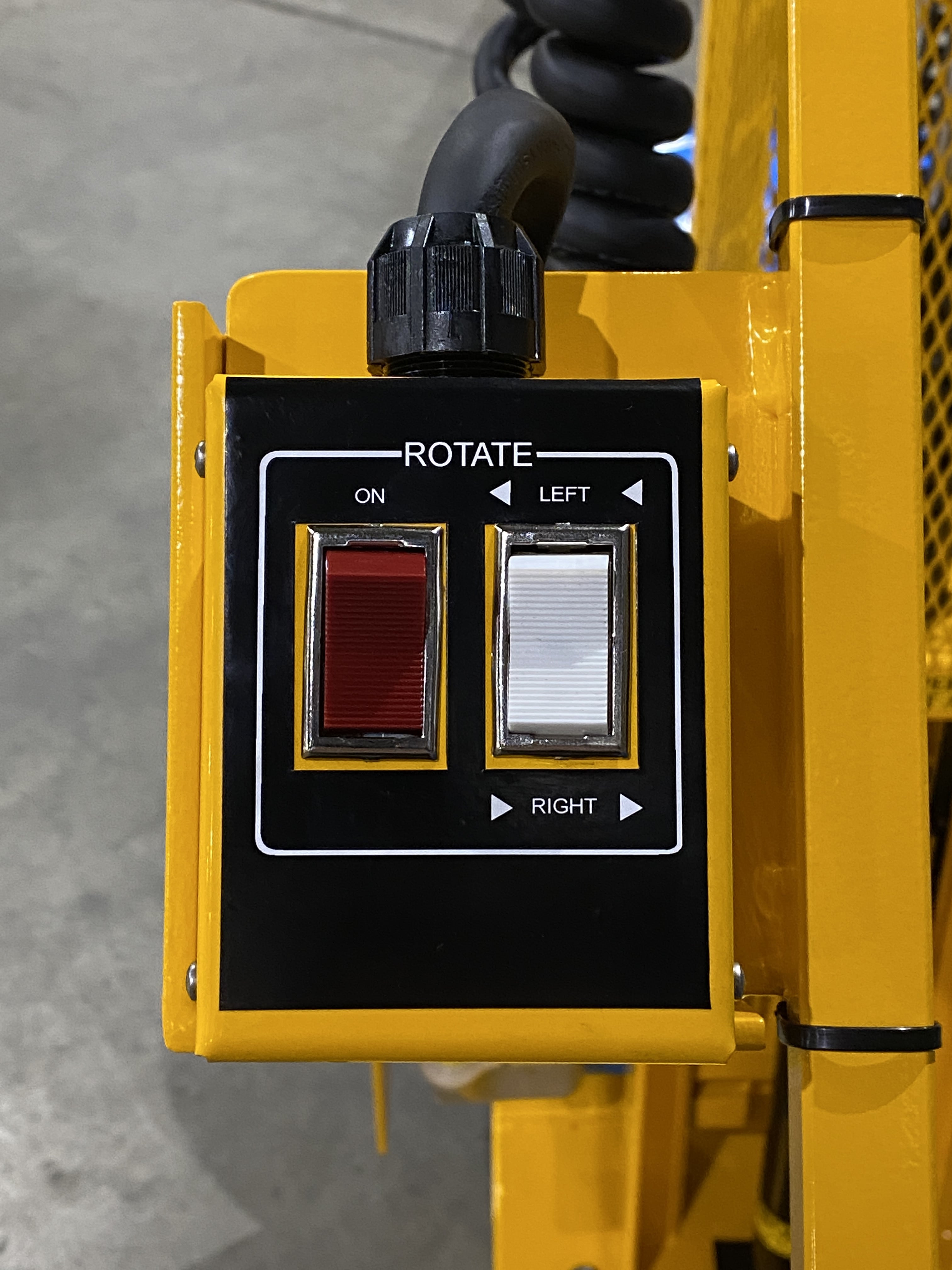

  • Remote rotation functions provided in magnetic backed control box on coil cord
  • Battery: Deka 12-D85-9 Wet Cell, 24 Volt, 340 A.H. industrial battery with Anderson 175SB connector
  • Key on/off switch & Battery Discharger Indicator with gauge type with hour-meter
  • Electronic speed controller is equipped with three travel profiles to allow for factory customization of travel parameters.  Maximum travel speed can be preset for speeds between 0.93 and 2.8 mph. Unless otherwise specified at time of order, maximum travel speed will be factory preset at 1.8 mph in the forward and reverse direction.
  • Thumb control forward and reverse switch with creep speed provided by a snail button, reversing safety switch with handle lockout positions and horn button located in the tiller handle
  • Load Wheels: (2) tandem polyurethane 3” (7.6 cm) dia. x 4” (10.2 cm) wide
  • Drive Wheel: (1) polyurethane or rubber 9” (22.9 cm) diameter x 2.75” (7 cm) wide
  • PVC Foot Guard on rear of Drum-Hauler behind drive tire
  • Stability Caster: (2) polyurethane 4” (10.2 cm) diameter x 1” (2.5 cm) wide
  • Finish: Safety orange powder coating
  • Base Dimensions: 28.5” (72 cm) overall drive frame width with narrow 20.5” (52 cm) front mast plate and 54” (137.2 cm) length
  • 1-year warranty, 2-year warranty on drive motor, 5-year warranty on wet cell batteries
  • Made in USA

Increase weight capacity over 800 lbs. (360 kg) based on equipment configuration

01-DH-with-SR-reinforced-mast-min

Battery Roll out tray with conveyor and Stand for 3-shift operations. The battery stand is designed to hold one additional battery and provide the ability to quickly change a low powered battery with a fully charged one. This prevents downtime and increases productivity. An extension cable is also provided with the battery stand to assist in the battery changing process.

02-Battery-Stand-and-Battery-Roll-out-Tray-on-DH-min-1

Side-Shifter with 8” (20.3 cm) of travel: 4” left & 4” right (10.2 cm left & 10.2 cm right) of center (available on single stage mast only)

03-DH-with-SR-Clamp-and-Side-Shifter-min
  • “FDA” Compliant Metallic Gray Powder Coating with coated lift & rotation chains, food grade grease & hydraulic fluid, and Stainless-Steel hardware
  • 304 Stainless-Steel Construction* (includes food grade grease & hydraulic fluid, stainless cylinder, excludes lift chain & select components).

Non-Intrinsically Safe Scale System: Rice Lake 680 or Doran 7000XLM Indicators for dispensing by weight or performing inventory. Includes all wiring, two stainless steel load cells, mounting and calibration. The Rice Lake 680 is hardwired to the Hauler battery, the Doran 7000XLM includes an internal battery & charger.

01-DH-with-SR-Clamp-and-Non-Intrinsically-Safe-Scale-closeup-min

Intrinsically Safe Scale System: Rice Lake 882IS or Mettler-Toledo 256x Indicators for dispensing by weight or performing inventory. Includes all wiring, two stainless steel load cells, internal battery & charger, mounting and calibration. FM approved for Class I, II, III, Div.1 Groups A,B,C,D,E,F,G/T4.

02-DH-with-SR-Clamp-and-Intrinsically-Safe-Scale-min

Intertek approved “EE” rating

01-DH-with-EE-Rating-Closeup-min

X-Groove siped polyurethane drive wheel

01-X-Groove-siped-polyurethane-drive-wheel-1

Enclosed drive controller to provide improved protection from water damage

02-Enclosed-Drive-Controller-1
  • Deka 12-D85-7 IST3603, 24 volt, 225 A.H. Industrial Wet Cell Battery with Chargemate on-board Charger in lieu of Deka 12-D85-9 Wet Cell battery (requires extended lead time)
  • Deka 12-G75-9, 24 volt, 300 A.H. Industrial Gel Cell Battery in lieu of Deka 12-D85-9 Wet Cell battery
  • EnerSys 24-12NXS-137-2 24v, 274 A.H. NexSys Pure TPPL Maintenance Free Ind. Battery w/ on-board Charger in lieu of Deka 12-D85-9 Wet Cell battery (requires extended lead time)
01-12-D85-7-Wet-Cell-with-Chargemate-min
