EDS Stationary Drum Dumper with Air Powered Lift, SR Clamp, and Rotate

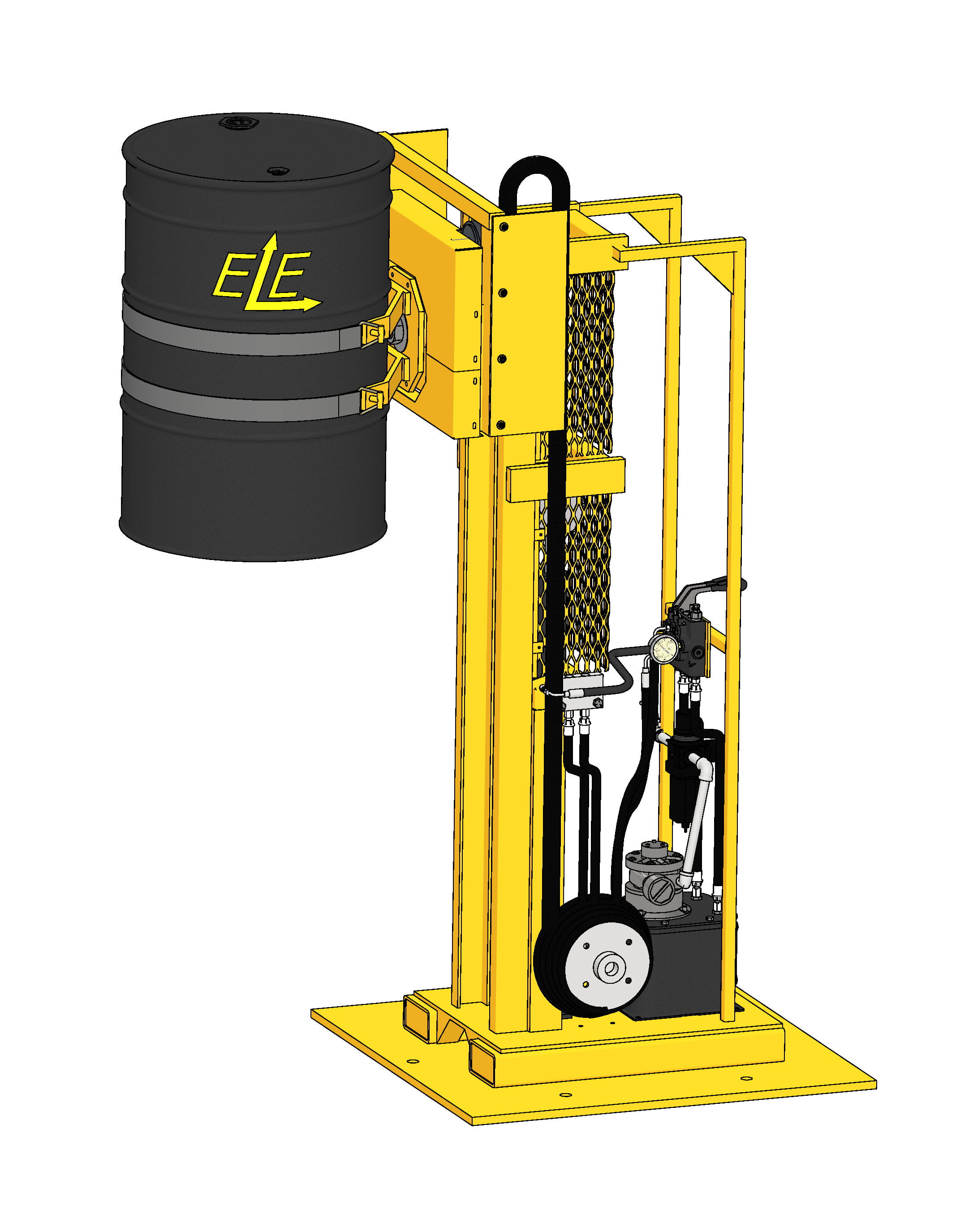

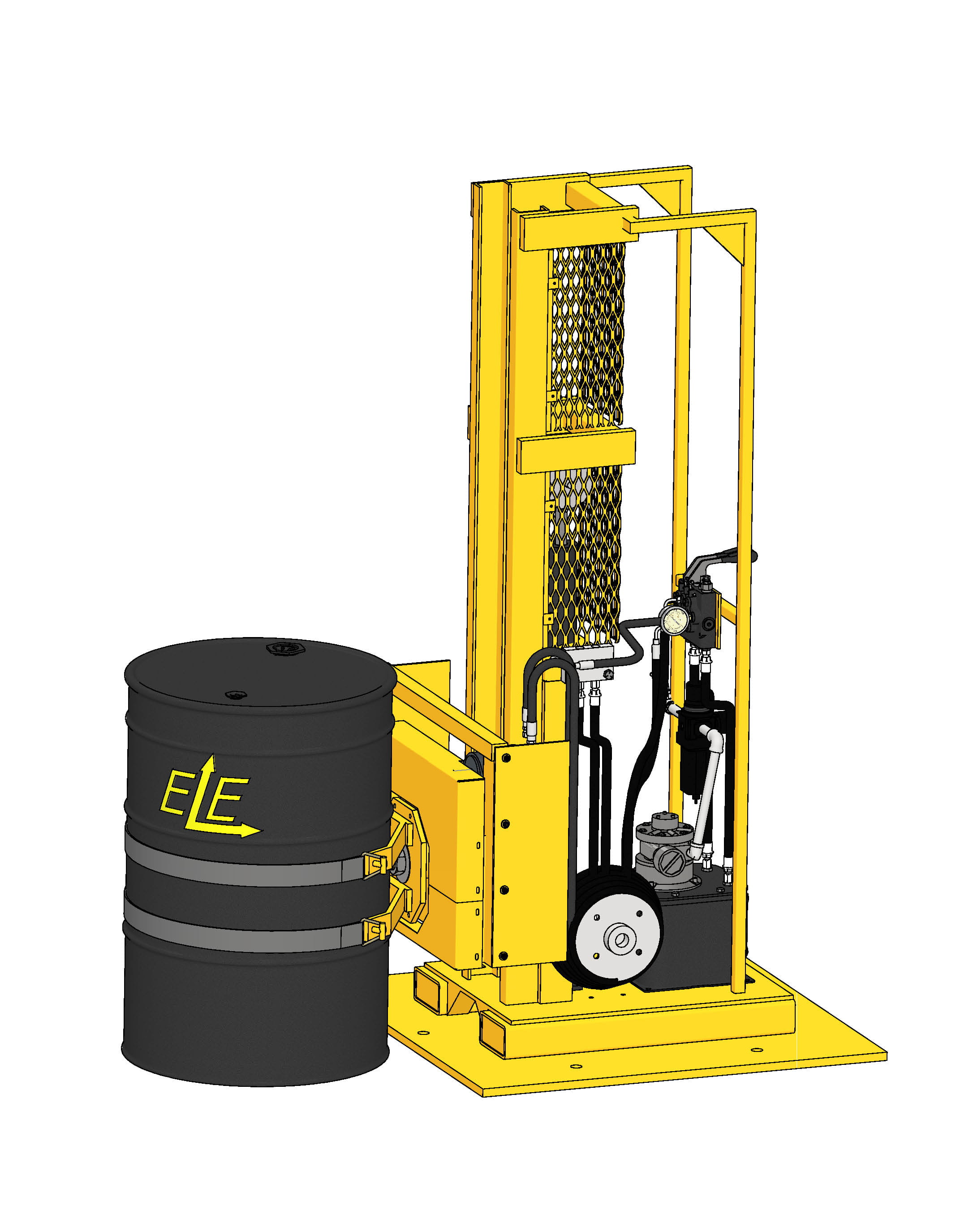

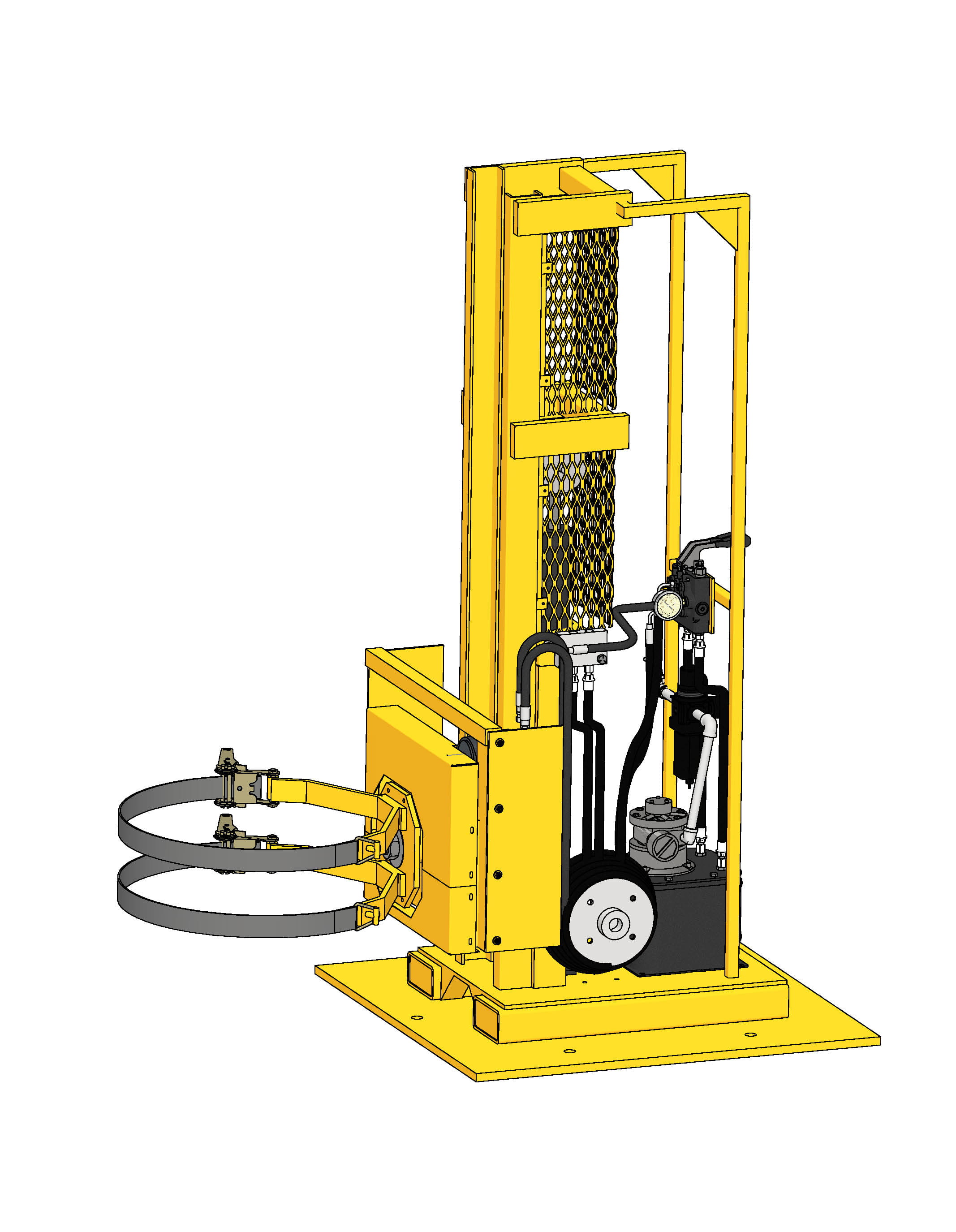

EDS Stationary Drum Dumpers with Air powered lift, Strap Rotator “SR” clamp and rotate (for hazardous areas) are designed for handling a drum in capacities up to 1,200 lb. (544 kg), contingent on equipment configuration. EDS models are available with single or two-stage masts for lift heights from 48″ to 144″ (122 cm to 366 cm) of vertical lift. The SR clamp feature two ratchet straps for handling a steel, plastic, or fiber drum from 12” (30.5 cm) to 24” (61 cm) in diameter, and can rotate 360° endlessly either left or right for dispensing.  Drum Dumpers come standard with safety yellow powder coating for durability but are also available with FDA compliant metallic gray powder coating, or full 304 stainless-steel construction for food and pharmaceutical applications The Air powered hydraulic system makes it ideal for heavy duty drum handling applications where DC powered equipment is not permitted. At time of order, stationary models are also available with a custom rotating bearing (EDSR models) which allows the operator to feed drums to the Drum Dumper on one side and rotate the mast and clamp toward the tank or reactor for dispensing. Bearings rotate with minimal effort and are easy to use by any operator.
